COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-103-12297		Well Classification: DA	Status: PA - 12/6/2019
Well Name/No:	BOIES RANCH B-19N FED #33A-19-02-97 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	COC078270
Facility Status:	PA	Status Date	12/6/2019
FacilityID:	453808	LocationID:	311852
County:	RIO BLANCO #103	Location:	SESW 19 2S97W 6
Field:	SULPHUR CREEK - #80090	Elevation:	6305 ft.
Basin:	PICEANCE BASIN
Planned Location:	1087FSL 1676 FWL	Lat/Long: 39.857531 / -108.328206	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 39.857531 / -108.328205	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: DA Status: PA - 12/6/2019 Measured TD: 3740 ft. Vertical TD: 3530 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: DA PA - 12/6/2019
Wellbore Permit			DIRECTIONAL
Permit #:		Expiration Date:	1/26/2020
Proposed Top PZ Location:	Sec:19 Twp: 2S 97W	Footage: 2439 FSL 2194 FEL
Bottom Hole Location:	Sec:19 Twp: 2S 97W	Footage: 2439 FSL 2194 FEL
Proposed Depth/Form:	11480 ft.
Surface Mineral Owner Same:	No
Mineral Owner:	FEDERAL	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: ILES , Formation: ILES , Order: 527-4 , Unit Acreage: , Drill Unit:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 527-1 , Unit Acreage: , Drill Unit:
Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: 55 , Citings Type: PLANNED
Cement:	Sacks: 111, Top: 0 ft., Bottom: 60 ft.
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 3683 ft., Weight: 36 , Citings Type: PLANNED
Cement:	Sacks: 563, Top: 2086 ft., Bottom: 3683 ft.
Casing:	String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 11480 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:	Sacks: 1380, Top: , Bottom: 11480 ft.
Casing:	String Type: STAGE TOOL, Hole Size: , Size: 9.625 in., Top: , Depth: 2086 ft., Weight: , Citings Type: PLANNED
Cement:	Sacks: 624, Top: 0 ft., Bottom: 2086 ft.

Wellbore Completed
Completion Date:	9/1/2018
Spud Date:	8/28/2018	Spud Date Is:	ACTUAL
Measured TD:	3740 ft.	Measured PB depth:	2581 ft.
True Vertical TD:	3530 ft.	True Vertical PB depth:	2371 ft.
Bottom Hole Location:	Sec:19 Twp: 2S 97W	Footage: 1855 FSL 2498 FWL
Log Types:

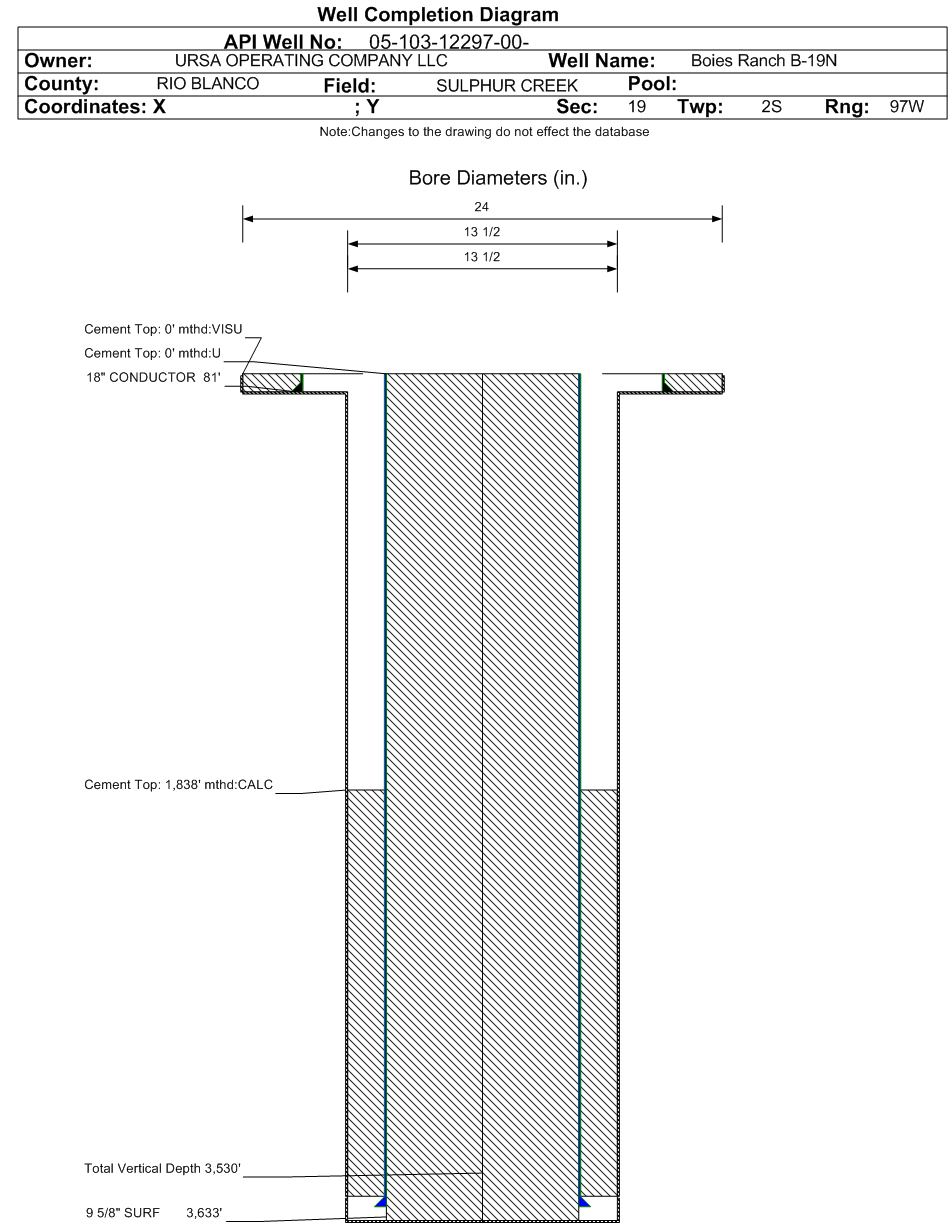

Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 81 ft., Weight: 87.5 , Citings Type: ACTUAL
Cement:	Sacks: 75, Top: 0 ft., Bottom: 81 ft., Determination Method: VISU
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 3633 ft., Weight: 36 , Citings Type: ACTUAL
Cement:	Sacks: 545, Top: 1838 ft., Bottom: 3633 ft., Determination Method: CALC
Casing:	String Type: OPEN HOLE, Hole Size: 13.5 in., Size: , Top: 3633 ft., Depth: 3740 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: , Top: , Bottom: , Determination Method:
Additional Cement:	String Type: SURF , Top: 3381 ft., Depth: 3633 ft., Bottom: 3633 ft., Sacks: 95, Method:
Additional Cement:	String Type: SURF , Top: 0 ft., Depth: 2031 ft., Bottom: 631 ft., Sacks: 631, Method: STAGE TOOL
Formation	Interval Top	Log Bottom	Cored	DSTs
GREEN RIVER	981 ft.		N	N
GARDEN GULCH	2222 ft.		N	N
WILLIAMS FORK	2567 ft.		N	N
No formation data to display.

Sidetrack #01 Wellbore Classification: DA Status: PA - 12/6/2019 Measured TD: 2645 ft. Vertical TD: 2497 ft.

Wellbore Data for Sidetrack #01		Wellbore Classification: DA PA - 12/6/2019
Wellbore Permit			DIRECTIONAL
Permit #:		Expiration Date:	11/13/2020
Proposed Top PZ Location:	Sec:19 Twp: 2s 97w	Footage: 2439 FSL 2194 FEL
Bottom Hole Location:	Sec:19 Twp: 2s 97w	Footage: 2439 FSL 2194 FEL
Proposed Depth/Form:	11480 ft.
Surface Mineral Owner Same:	No
Mineral Owner:	FEDERAL	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: ILES , Formation: ILES , Order: 527-4 , Unit Acreage: , Drill Unit:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 527-1 , Unit Acreage: , Drill Unit:
Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: 55 , Citings Type: PLANNED
Cement:	Sacks: 111, Top: 0 ft., Bottom: 60 ft.
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 3683 ft., Weight: 36 , Citings Type: PLANNED
Cement:	Sacks: 563, Top: 2086 ft., Bottom: 3683 ft.
Casing:	String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 11461 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:	Sacks: 1380, Top: , Bottom: 11461 ft.
Casing:	String Type: STAGE TOOL, Hole Size: , Size: 9.625 in., Top: , Depth: 2086 ft., Weight: , Citings Type: PLANNED
Cement:	Sacks: 624, Top: , Bottom: 2086 ft.

Wellbore Completed
Completion Date:	N/A
Spud Date:	8/28/2018	Spud Date Is:	ACTUAL
Measured TD:	2645 ft.	Measured PB depth:	3381 ft.
True Vertical TD:	2497 ft.	True Vertical PB depth:	3234 ft.
Bottom Hole Location:	Sec:19 Twp: 2S 97W	Footage: 1595 FSL 2212 FWL
Log Types:
Casing:	String Type: OPEN HOLE, Hole Size: 8.75 in., Size: , Top: 2598 ft., Depth: 2645 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 25, Top: , Bottom: , Determination Method:
No formation data to display.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	Y	12/06/2019
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

October 2024 - September 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	0
Total Gas Produced (MCF)	0
GOR
GOR Determination
Average BOE per Day	0.000
Average MCFE per Day	0.000

Federal Financial Assurance

Tribal Well
