Wellbore #00 Wellbore Classification: GW Status: PR - 10/1/2024 Measured TD: 10973 ft. Vertical TD: 10804 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/1/2024 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 10/5/2015 | | Proposed Top PZ Location: | Sec:30 Twp: 1N 98W | Footage: 2399 FSL 653 FEL | | Bottom Hole Location: | Sec:30 Twp: 1N 98W | Footage: 2408 FSL 675 FEL | | Proposed Depth/Form: | 10933 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | BARCUS CREEK | Unit Number: | COC70700X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: SEGO , Formation: SEGO , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 30 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 60, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 3289 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 1191, Top: 0 ft., Bottom: 3289 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10933 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 1134, Top: 6502 ft., Bottom: 10933 ft. |
| | |

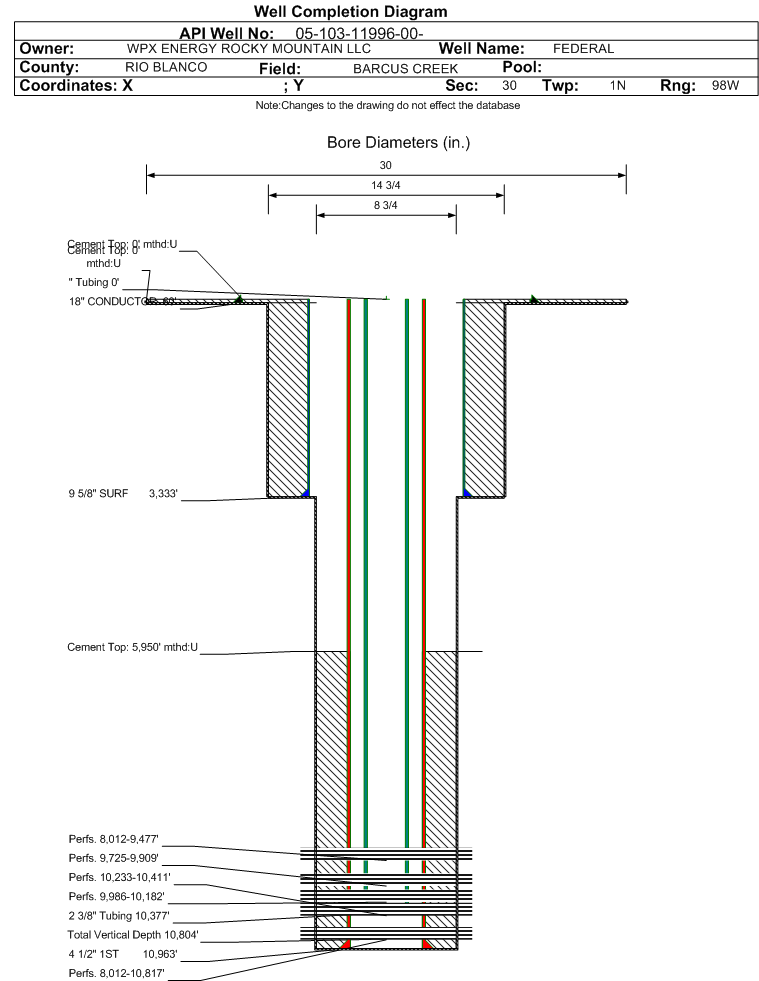

| Wellbore Completed | | Completion Date: | 9/10/2014 | | Spud Date: | 8/31/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 10973 ft. | Measured PB depth: | 10908 ft. | | True Vertical TD: | 10804 ft. | True Vertical PB depth: | 10739 ft. | | Top PZ Location: | Sec:30 Twp: 1N 98W | Footage: 2399 FSL 653 FEL | | Bottom Hole Location: | Sec:30 Twp: 1N 98W | Footage: 2408 FSL 675 FEL | | Log Types: | SP/GR/HDIL/ZDL/CN/CBL/RPM/MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 30 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 22, Top: 0 ft., Bottom: 60 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 3333 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 805, Top: 0 ft., Bottom: 3333 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10963 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1543, Top: 5950 ft., Bottom: 10963 ft., Determination Method: CBL | | Additional Cement: | String Type: SURF , Top: , Depth: 1433 ft., Bottom: , Sacks: 675, Method: DV TOOL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 4689 ft. | | | | | MESAVERDE | 6741 ft. | | | | | CAMEO | 9281 ft. | | | | | ROLLINS | 9850 ft. | | | | | COZZETTE | 9927 ft. | | | | | CORCORAN | 10137 ft. | | | | | SEGO | 10543 ft. | | | |
Formation SEGO Formation Classification: OG Status: PR - 10/1/2024 Interval Top: 10565 ft. Interval Bottom: 10817 ft.| Completed Information for Formation SEGO | | 1st Production Date: | 10/15/2014 | Choke Size: | | | Formation Name: | SEGO | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/17/2014 | Treatment End Date: | 10/17/2014 | | Treatment Summary: | 1000 Gals 10% HCL; 9757 Bbbls Slickwater; 266200# 40/70 Sand; 16500# 20/40 Sand (Summary) | | Total fluid used in treatment (bbls): | 9780 | Max pressure during treatment (psi): | 7375 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 11 | | Total acid used in treatment (bbls): | 23 | Min frac gradient (psi/ft): | 0.61 | | Recycled water used in treatment (bbls): | 9757 | Total flowback volume recovered (bbls): | 34097 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 281800 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation SEGO. |
| | Perforation Data: | | Interval Top: | 10565 ft. | # Of Holes: | 39 | | Interval Bottom: | 10817 ft. | Hole Size: | 0.35 in. |
|
Formation CRCRN Formation Classification: OG Status: PR - 10/1/2024 Interval Top: 10151 ft. Interval Bottom: 10527 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 10/20/2014 | Choke Size: | | | Formation Name: | CORCORAN | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/17/2014 | Treatment End Date: | 10/17/2014 | | Treatment Summary: | 500 Gals 10% HCL;4391 Bbls Slickwater; 118761# 40/70 Sand; 8750# 20/40 Sand; (Summary)
| | Total fluid used in treatment (bbls): | 4403 | Max pressure during treatment (psi): | 5258 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 1 | | Total acid used in treatment (bbls): | 11 | Min frac gradient (psi/ft): | 0.58 | | Recycled water used in treatment (bbls): | 4392 | Total flowback volume recovered (bbls): | 34097 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 127511 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CRCRN. |
| | Perforation Data: | | Interval Top: | 10151 ft. | # Of Holes: | 43 | | Interval Bottom: | 10527 ft. | Hole Size: | 0.35 in. |
|
Formation COZZ Formation Classification: GW Status: PR - 10/1/2024 Interval Top: 9986 ft. Interval Bottom: 10130 ft.| Completed Information for Formation COZZETTE | | 1st Production Date: | 10/20/2014 | Choke Size: | | | Formation Name: | COZZETTE | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/18/2014 | Treatment End Date: | 10/18/2014 | | Treatment Summary: | 500 Gals 10% HCL; 3694 Bbls Slickwater; 98398# 40/70 Sand; 7500# 20/40 Sand; (Summary)
| | Total fluid used in treatment (bbls): | 3706 | Max pressure during treatment (psi): | 5258 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 1 | | Total acid used in treatment (bbls): | 11 | Min frac gradient (psi/ft): | 0.58 | | Recycled water used in treatment (bbls): | 3694 | Total flowback volume recovered (bbls): | 34097 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 105889 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation COZZ. |
| | Perforation Data: | | Interval Top: | 9986 ft. | # Of Holes: | 14 | | Interval Bottom: | 10130 ft. | Hole Size: | 0.35 in. |
|
Formation RLNS Formation Classification: OG Status: PR - 10/1/2024 Interval Top: 9854 ft. Interval Bottom: 9909 ft.| Completed Information for Formation ROLLINS | | 1st Production Date: | 10/20/2014 | Choke Size: | | | Formation Name: | ROLLINS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/18/2014 | Treatment End Date: | 10/18/2014 | | Treatment Summary: | 500 Gals 10% HCL; 5507 Bbls Slickwater; 153351# 40/70 Sand; 11250# 20/40 Sand; (Summary)
| | Total fluid used in treatment (bbls): | 5519 | Max pressure during treatment (psi): | 5258 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 1 | | Total acid used in treatment (bbls): | 11 | Min frac gradient (psi/ft): | 0.58 | | Recycled water used in treatment (bbls): | 5507 | Total flowback volume recovered (bbls): | 34097 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 164801 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation RLNS. |
| | Perforation Data: | | Interval Top: | 9854 ft. | # Of Holes: | 12 | | Interval Bottom: | 9909 ft. | Hole Size: | 0.35 in. |
|
Formation WFCM Formation Classification: OG Status: PR - 10/1/2024 Interval Top: 8012 ft. Interval Bottom: 9825 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 10/20/2014 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/19/2014 | Treatment End Date: | 10/21/2014 | | Treatment Summary: | 3000 Gals 10% HCL; 26298 Bbls Slickwater; 725686# 40/70 Sand; 50000# 20/40 Sand; (Summary)
| | Total fluid used in treatment (bbls): | 26370 | Max pressure during treatment (psi): | 5258 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 6 | | Total acid used in treatment (bbls): | 71 | Min frac gradient (psi/ft): | 0.58 | | Recycled water used in treatment (bbls): | 26298 | Total flowback volume recovered (bbls): | 34097 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 775686 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WFCM. |
| | Perforation Data: | | Interval Top: | 8012 ft. | # Of Holes: | 156 | | Interval Bottom: | 9825 ft. | Hole Size: | 0.35 in. |
|
Formation WFILS Formation Classification: OG Status: CM - 3/18/2021 Interval Top: 8012 ft. Interval Bottom: 10817 ft.| Completed Information for Formation WILLIAMS FORK-ILES | | 1st Production Date: | 10/20/2014 | Choke Size: | | | Formation Name: | WILLIAMS FORK-ILES | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/17/2014 | Treatment End Date: | 10/21/2014 | | Treatment Summary: | 5500 Gals 10% HCL; 49647 Bbls Slickwater; 1362406# 40/70 Sand; 93100# 20/40 Sand (Summary) | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BTU_GAS | 1159 | | CALC_MCF_GAS | 1272 | | CASING_PRESS | 1892 | | MCF_GAS | 1272 | | TUBING_PRESS | 1484 |
| | Perforation Data: | | Interval Top: | 8012 ft. | # Of Holes: | 264 | | Interval Bottom: | 10817 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 429 |
| Total Gas Produced (MCF) | 58229 |
| GOR | 135731 |
| GOR Determination | MCFE |
| Average BOE per Day | 28.713 |
| Average MCFE per Day | 166.542 |
| Federal Financial Assurance | i | Y |
|
|
