COGIS - WELL SCOUT CARD

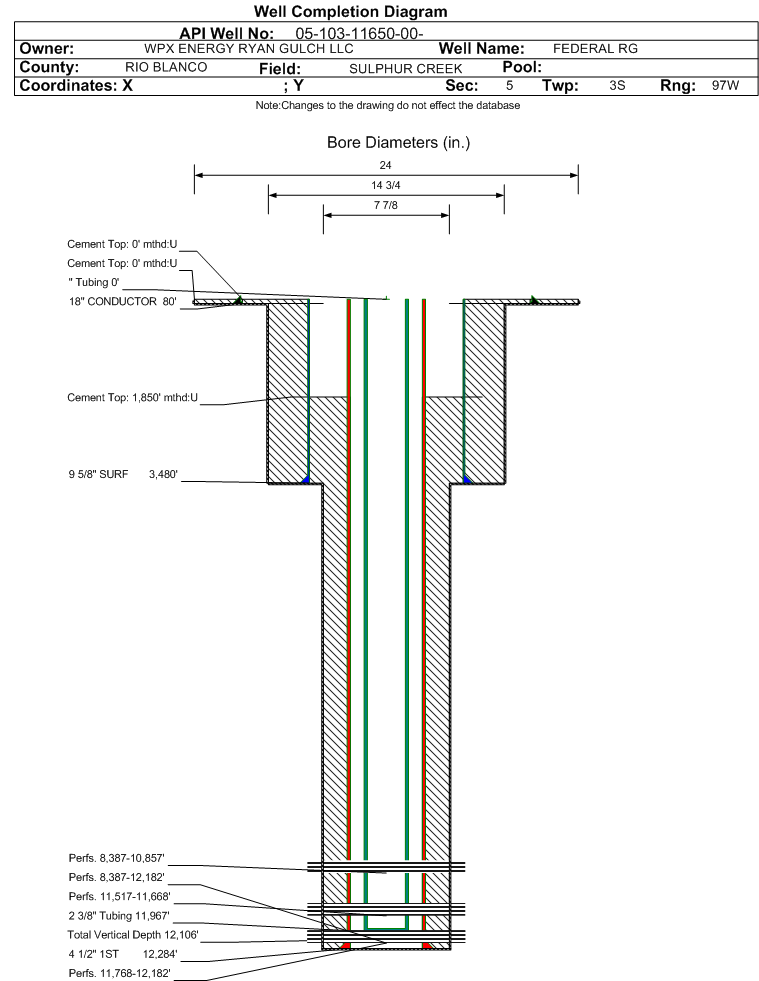

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-103-11650		Well Classification: GW Status: PR - 7/15/2011
Well Name/No:FEDERAL RG #12-5-397
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/15/2011
FacilityID:415944LocationID:315608
County:RIO BLANCO #103Location:SENW 5 3S97W 6
Field:SULPHUR CREEK - #80090Elevation:6646 ft.
Basin:PICEANCE BASIN
Planned Location:2308FNL  2263 FWLLat/Long: 39.819184 / -108.306665Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.819185 / -108.306665Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 12/10/2010
End Date: 12/10/2010
Reported: 12/1/2011
Prior to rule 205A.b.(2)(A)
Days to report: 356
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/15/2011             Measured TD: 12300 ft.    Vertical TD: 12106 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/15/2011
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:2/29/2012
Proposed Top PZ Location:Sec:5 Twp: 3S 97W Footage: 2100 FNL  708 FWL
Bottom Hole Location:Sec:5 Twp: 3S 97W Footage: 2100 FNL  708 FWL
Proposed Depth/Form:12207 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: SEGO , Formation: SEGO , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 80 ft., Weight: 48 , Citings Type: PLANNED
Cement:Sacks: 135, Top: 0 ft., Bottom: 80 ft.
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: , Depth: 3707 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 3, Top: 0 ft., Bottom: 3707 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: , Depth: 12207 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom: 12207 ft.
Wellbore Completed
Completion Date:12/14/2010
Spud Date:8/15/2010Spud Date Is:ACTUAL
Measured TD:12300 ft.Measured PB depth:12106 ft.
True Vertical TD:12106 ft.True Vertical PB depth:11912 ft.
Top PZ Location:Sec:5 Twp: 3S 97WFootage: 2144 FNL  689 FWL
Bottom Hole Location:Sec:5 Twp: 3S 97WFootage: 2091 FNL  676 FWL
Log Types:PLATFORM EXPRESS, CBL, AND RPM
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 48 ft., Depth: 80 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 135, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 3480 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 2735, Top: 0 ft., Bottom: 3480 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 12284 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1770, Top: 1850 ft., Bottom: 12284 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
MESAVERDE8387 ft.
CAMEO10651 ft.
ROLLINS11061 ft.
COZZETTE11217 ft.
CORCORAN11517 ft.
SEGO11768 ft.

Formation SEGO                     Formation Classification:  OW                     Status:  PR - 11/18/2011                Interval Top: 11768 ft.    Interval Bottom: 12182 ft.

 Completed Information for Formation SEGO
1st Production Date:12/14/2010Choke Size:
Formation Name:SEGOCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:12/10/2010
Treatment Summary:1987 GALS OF 7.5% HCL ACID; 357156# OF WHITE 30/50 SAND; 11921 BBLS SLICKWATER (SUMMARY).
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation SEGO.
Perforation Data:
Interval Top:11768 ft.# Of Holes:39
Interval Bottom:12182 ft.Hole Size:0.35 in.

Formation CRCRN                   Formation Classification:  OW                   Status:  PR - 11/18/2011                Interval Top: 11517 ft.    Interval Bottom: 11668 ft.

 Completed Information for Formation CORCORAN
1st Production Date:12/14/2010Choke Size:
Formation Name:CORCORANCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:12/13/2010
Treatment Summary:1000 GALS OF 7.5% HCL ACID; 89422# OF WHITE 30/50 SAND; 3172 BBLS SLICKWATER (SUMMARY).
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CRCRN.
Perforation Data:
Interval Top:11517 ft.# Of Holes:20
Interval Bottom:11668 ft.Hole Size:0.35 in.

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 11/18/2011                Interval Top: 8387 ft.    Interval Bottom: 10857 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:12/14/2010Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:12/13/2010
Treatment Summary:10020 GALS OF 7.5% HCL ACID; 1509774# OF WHITE 30/50 SAND; 52336 BBLS SLICKWATER (SUMMARY).
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
Perforation Data:
Interval Top:8387 ft.# Of Holes:194
Interval Bottom:10857 ft.Hole Size:0.35 in.

Formation WFILS                   Formation Classification:                     Status:  CM - 9/29/2011                 Interval Top: 8387 ft.    Interval Bottom: 12182 ft.

 Completed Information for Formation WILLIAMS FORK-ILES
1st Production Date:12/14/2010Choke Size:
Formation Name:WILLIAMS FORK-ILESCommingled:No
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:12/10/2010
Treatment Summary:13007 GALS OF 10% HCL ACID; 1956352# OF WHITE 30/50 SAND; 67429 BBLS SLICKWATER (SUMMARY).
Tubing Size:2.375 in.Tubing Setting Depth:11967 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/29/2011Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1069
CASING_PRESS 979
MCF_GAS 913
TUBING_PRESS 290
Perforation Data:
Interval Top:8387 ft.# Of Holes:253
Interval Bottom:12182 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)163
Total Gas Produced (MCF)22041
GOR135220
GOR DeterminationMCFE
Average BOE per Day10.860
Average MCFE per Day63.002

 Federal Financial Assurance  i Y

 Tribal Well  i No
