COGIS - WELL SCOUT CARD

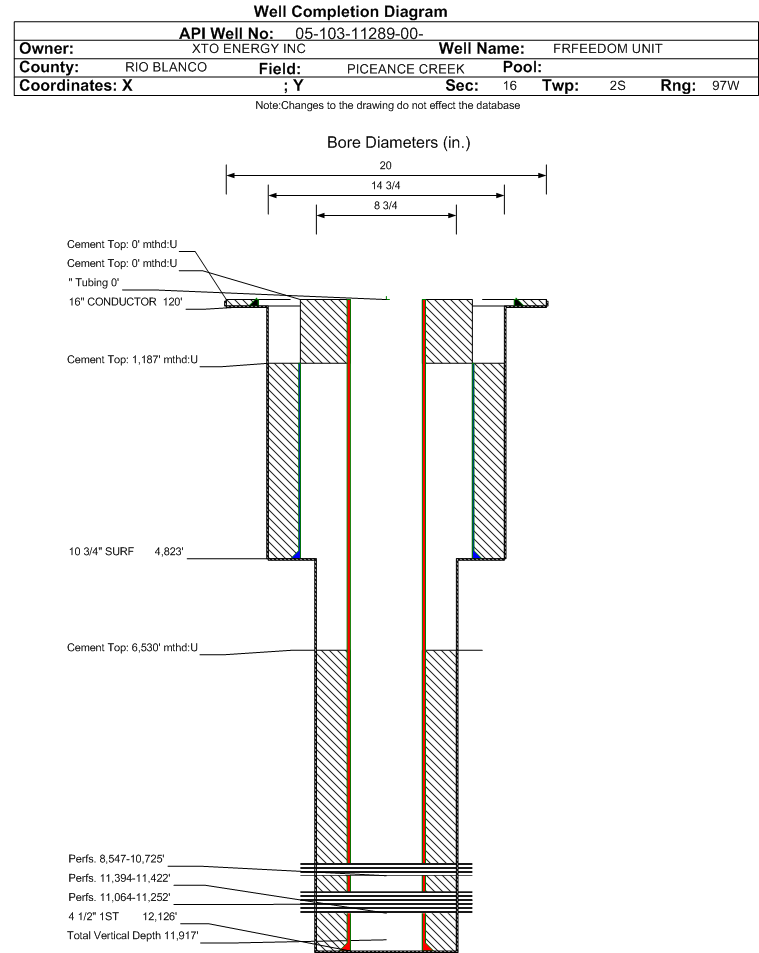

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-103-11289		Well Classification: GW Status: PR - 11/1/2023
Well Name/No:FRFEEDOM UNIT #297-16A5
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC57286
Facility Status:PRStatus Date11/1/2023
FacilityID:296065LocationID:336042
County:RIO BLANCO #103Location:SWNW 16 2S97W 6
Field:PICEANCE CREEK - #68800Elevation:6187 ft.
Basin:PICEANCE BASIN
Planned Location:2326FNL  730 FWLLat/Long: 39.877418 / -108.293956Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.877417 / -108.293956Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/1/2023             Measured TD: 12140 ft.    Vertical TD: 11917 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/1/2023
Wellbore PermitDIRECTIONAL
Permit #:20091244 Expiration Date:4/28/2010
Proposed Top PZ Location:Sec:17 Twp: 2S 97W Footage: 1882 FNL  389 FEL
Bottom Hole Location:Sec:17 Twp: 2S 97W Footage: 1906 FNL  933 FEL
Proposed Depth/Form:13500 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit:FREEDOM UNIT Unit Number:COC069547X
Formation And Spacing:Code: MVRD , Formation: MESAVERDE , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: OHCRK , Formation: OHIO CREEK , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: , Depth: 12100 ft., Weight: 15.1 , Citings Type: PLANNED
Cement:Sacks: 250, Top: 5600 ft., Bottom: 12100 ft.
Wellbore Completed
Completion Date:11/11/2009
Spud Date:8/11/2009Spud Date Is:ACTUAL
Measured TD:12140 ft.Measured PB depth:12038 ft.
True Vertical TD:11917 ft.True Vertical PB depth:11815 ft.
Top PZ Location:Sec:17 Twp: 2S 97WFootage: 1882 FNL  389 FEL
Bottom Hole Location:Sec:17 Twp: 2S 97WFootage: 1906 FNL  933 FEL
Log Types:GASVIEW, PERFORM DRILLING MECHANICS,5- MUD LOGS, DIRECTIONAL SURVEY, RADIAL ANALYSIS BOND LOG, RESERVOIR PERFORMANCE MONITOR
Log Types:
Log Types:
Log Types:GASVIEW, PERFORM-DRILLING MECHANICS, MUD LOGS, DIRECTIONAL SURVEY, RADIAL ANALYSIS BOND LOG, RESERVOIR PERFORMANCE MONITOR
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 120 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 96, Top: 0 ft., Bottom: 120 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 10.75 in., Top: 1187 ft., Depth: 4823 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1560, Top: 1187 ft., Bottom: 4823 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 12126 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1270, Top: 6530 ft., Bottom: 12140 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 1187 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 720, Top: 0 ft., Bottom: 1187 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G4995 ft.6773 ft.NN
OHIO CREEK6773 ft.7054 ft.NN
WILLIAMS FORK - CAMEO7054 ft.10806 ft.NN
ROLLINS10806 ft.10948 ft.NN
COZZETTE10948 ft.11276 ft.NN
CORCORAN11276 ft.12140 ft.NN

Formation CRCRN                   Formation Classification:  GW                   Status:  PR - 11/1/2023                 Interval Top: 11394 ft.    Interval Bottom: 11422 ft.

 Completed Information for Formation CORCORAN
1st Production Date:2/21/2010Choke Size:0.313 in.
Formation Name:CORCORANCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/17/2010
Treatment Summary:FRACD WITH 4600# 100 AND 22500# 40/70 MESH PROPPANT.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/8/2010Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 297
BTU_GAS 1037
CALC_BBLS_H2O 297
CALC_MCF_GAS 403
CASING_PRESS 2469
MCF_GAS 403
Perforation Data:
Interval Top:11394 ft.# Of Holes:24
Interval Bottom:11422 ft.Hole Size:0.34 in.

Formation COZZ                     Formation Classification:  GW                     Status:  PR - 11/1/2023                 Interval Top: 11064 ft.    Interval Bottom: 11252 ft.

 Completed Information for Formation COZZETTE
1st Production Date:2/21/2010Choke Size:0.313 in.
Formation Name:COZZETTECommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/17/2010
Treatment Summary:FRACD WITH 14900# 100 AND 72000# 40/70 MESH PROPPANT.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/8/2010Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1037
CALC_BBLS_H2O 113
CALC_MCF_GAS 153
CASING_PRESS 2469
Perforation Data:
Interval Top:11064 ft.# Of Holes:60
Interval Bottom:11252 ft.Hole Size:0.34 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 11/1/2023                 Interval Top: 8547 ft.    Interval Bottom: 10725 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:2/21/2010Choke Size:0.313 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/23/2010
Treatment Summary:FRACD WITH 118700# 100 AND 568200# 40/70 MESH PROPPANT. SET FRAC PLUGS AT 8954, 9670, 10490, DRILLED OUT.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/8/2010Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 1289
BTU_GAS 1037
CALC_BBLS_H2O 1289
CALC_MCF_GAS 1751
CASING_PRESS 2469
MCF_GAS 1751
Perforation Data:
Interval Top:8547 ft.# Of Holes:432
Interval Bottom:10725 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)32
Total Gas Produced (MCF)22328
GOR697750
GOR DeterminationMCFE
Average BOE per Day10.663
Average MCFE per Day61.872

 Federal Financial Assurance  i Y

 Tribal Well  i No
