Wellbore #00 Wellbore Classification: GW Status: PR - 6/1/2013 Measured TD: 11970 ft. Vertical TD: 11856 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 6/1/2013 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20091246 | Expiration Date: | 4/28/2010 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1941 FSL 224 FWL | | Bottom Hole Location: | Sec:16 Twp: 2S 97W | Footage: 1941 FSL 224 FWL | | Proposed Depth/Form: | 13500 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | FREEDOM UNIT | Unit Number: | COC069547X | | Formation And Spacing: | Code: MVRD , Formation: MESAVERDE , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: OHCRK , Formation: OHIO CREEK , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WSTC , Formation: WASATCH , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: , Depth: 12100 ft., Weight: 15.1 , Citings Type: PLANNED | | Cement: | Sacks: 250, Top: 5600 ft., Bottom: 12100 ft. |
| | |

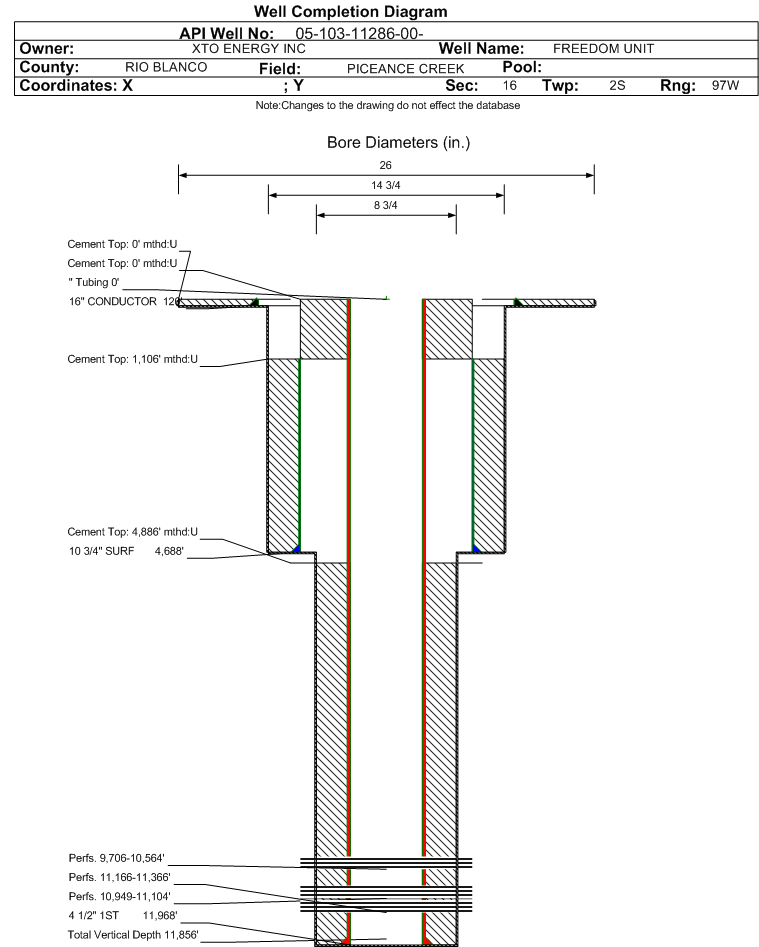

| Wellbore Completed | | Completion Date: | 10/5/2009 | | Spud Date: | 7/31/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 11970 ft. | Measured PB depth: | | | True Vertical TD: | 11856 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:16 Twp: 2S 97W | Footage: 2129 FSL 326 FWL | | Bottom Hole Location: | Sec:16 Twp: 2S 97W | Footage: 2129 FSL 326 FWL | | Log Types: | GASVIEW, PERFORM - APWD -5- MUD LOGS, DIRECTIONAL SURVEY, RESERVOIR PERFORMANCE MONITOR, RADIAL ANALYSIS BOND LOG | | Log Types: | GASVIEW, PERFORM-APWD, MUD LOGS, DIRECTIONAL SURVEY, RESERVOIR PERFORMANCE MONITOR, RADIAL ANALYSIS BOND LOG | | Log Types: | | | Log Types: | | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 120 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 96, Top: 0 ft., Bottom: 120 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 10.75 in., Top: 1106 ft., Depth: 4688 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1520, Top: 1106 ft., Bottom: 4688 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 11968 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1405, Top: 4886 ft., Bottom: 11970 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 1106 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 775, Top: 0 ft., Bottom: 1106 ft., Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 4920 ft. | 6598 ft. | N | N | | OHIO CREEK | 6598 ft. | 6891 ft. | N | N | | WILLIAMS FORK - CAMEO | 6861 ft. | 10659 ft. | N | N | | ROLLINS | 10659 ft. | 10799 ft. | N | N | | COZZETTE | 10799 ft. | 11130 ft. | N | N | | CORCORAN | 11130 ft. | 11970 ft. | N | N |
Formation CRCRN Formation Classification: GW Status: PR - 6/1/2013 Interval Top: 11166 ft. Interval Bottom: 11366 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 2/26/2010 | Choke Size: | | | Formation Name: | CORCORAN | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/25/2010 | | Treatment Summary: | FRACED W/ 16,600# 100 & 81,100# 40/70 MESH PROPPANT. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CRCRN. |
| | Perforation Data: | | Interval Top: | 11166 ft. | # Of Holes: | 72 | | Interval Bottom: | 11366 ft. | Hole Size: | 0.34 in. |
|
Formation COZZ Formation Classification: GW Status: PR - 6/1/2013 Interval Top: 10949 ft. Interval Bottom: 11104 ft.| Completed Information for Formation COZZETTE | | 1st Production Date: | 2/26/2010 | Choke Size: | | | Formation Name: | COZZETTE | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/25/2010 | | Treatment Summary: | FRACED W/ 10,200# 100 & 49,400# 40/70 MESH PROPPANT. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation COZZ. |
| | Perforation Data: | | Interval Top: | 10949 ft. | # Of Holes: | 36 | | Interval Bottom: | 11104 ft. | Hole Size: | 0.34 in. |
|
Formation WFCM Formation Classification: GW Status: PR - 6/1/2013 Interval Top: 9706 ft. Interval Bottom: 10564 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 2/26/2010 | Choke Size: | 0.313 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/28/2010 | | Treatment Summary: | 9706 - 10,793 PRODUCING - NO. HOLES 144 SIZE 0.34" - FRACED W/ 48,700# 100 & 234,200# 40/70 MESH PROPPANT. 10,518 - 10,564 TA - NO. HOLES 24 SIZE 0.34" - FRACED W/ 8,700 100 & 33,800# 40/70 MESH PROPPANT. FRAC PLUG SET AT 10,505, NOT DRILLED OUT. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/7/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1054 | | CALC_BBLS_H2O | 1109 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 2493 | | CASING_PRESS | 2212 |
| | Perforation Data: | | Interval Top: | 9706 ft. | # Of Holes: | 168 | | Interval Bottom: | 10564 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
10/2024 - 09/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 3643 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 1.722 |
| Average MCFE per Day | 10.002 |
| Federal Financial Assurance | i | Y |
|
|
