Wellbore #00 Wellbore Classification: GW Status: PR - 6/1/2013 Measured TD: 12430 ft. Vertical TD: 11910 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 6/1/2013 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20091238 | Expiration Date: | 4/28/2010 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 824 FSL 2001 FWL | | Bottom Hole Location: | Sec:16 Twp: 2S 97W | Footage: 824 FSL 2001 FWL | | Proposed Depth/Form: | 13500 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | FREEDOM UNIT | Unit Number: | COC069547X | | Formation And Spacing: | Code: MVRD , Formation: MESAVERDE , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: OHCRK , Formation: OHIO CREEK , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WSTC , Formation: WASATCH , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: , Depth: 12100 ft., Weight: 15.1 , Citings Type: PLANNED | | Cement: | Sacks: 250, Top: 5600 ft., Bottom: 12100 ft. |
| | |

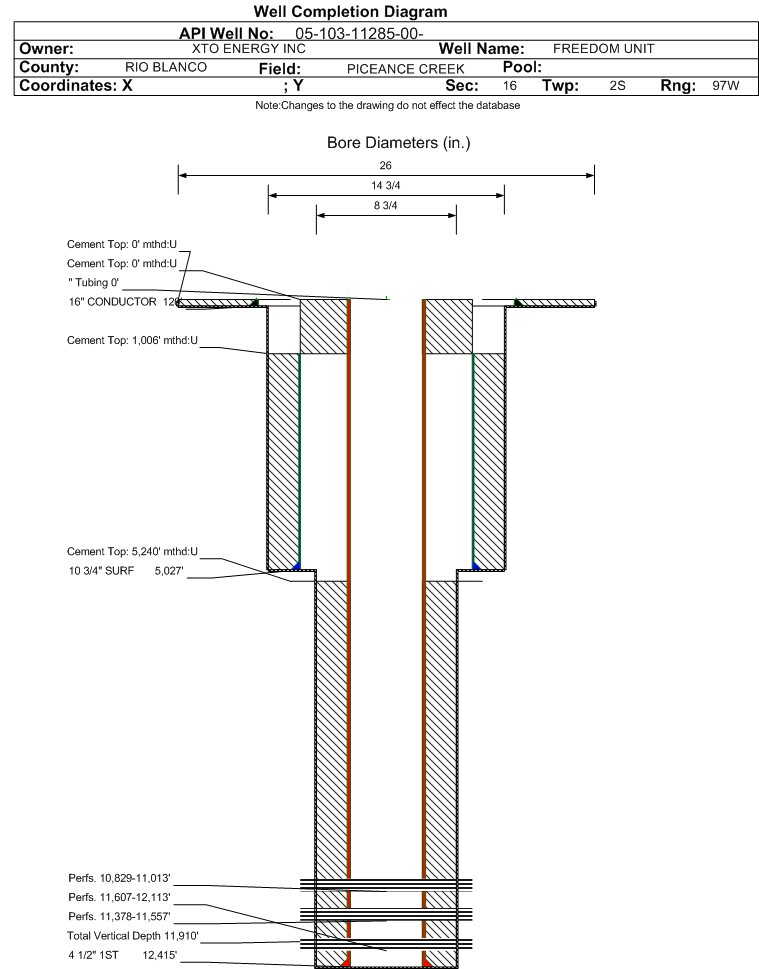

| Wellbore Completed | | Completion Date: | 1/14/2010 | | Spud Date: | 9/7/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 12430 ft. | Measured PB depth: | 12384 ft. | | True Vertical TD: | 11910 ft. | True Vertical PB depth: | 11864 ft. | | Top PZ Location: | Sec:16 Twp: 2S 97W | Footage: 828 FSL 1943 FWL | | Bottom Hole Location: | Sec:16 Twp: 2S 97W | Footage: 828 FSL 1943 FWL | | Log Types: | RESERVOIR PERFORMANCE MONITOR, GASVIEW, 5-MUD LOGS | | Log Types: | | | Log Types: | ULTRASONIC IMAGING TOOL CEMENET EVAL, RES PERF MONITOR, RADIAL ANALYSIS BOND LOG, DIR SURVEY, GASVIEW, MUD LOGS | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 120 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 96, Top: 0 ft., Bottom: 120 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 10.75 in., Top: 1006 ft., Depth: 5027 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1670, Top: 1006 ft., Bottom: 5040 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 12415 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1760, Top: 5240 ft., Bottom: 12430 ft., Determination Method: CALC | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 1006 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 675, Top: 0 ft., Bottom: 1006 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 5293 ft. | 7100 ft. | N | N | | OHIO CREEK | 7100 ft. | 7350 ft. | N | N | | WILLIAMS FORK - CAMEO | 7350 ft. | 11110 ft. | N | N | | ROLLINS | 11110 ft. | 11310 ft. | N | N | | COZZETTE | 11310 ft. | 11580 ft. | N | N | | CORCORAN | 11580 ft. | 12430 ft. | N | N |
Formation CRCRN Formation Classification: GW Status: PR - 6/1/2013 Interval Top: 11607 ft. Interval Bottom: 12113 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 3/3/2010 | Choke Size: | | | Formation Name: | CORCORAN | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/1/2010 | | Treatment Summary: | FRACD WITH 33900# 100 & 143400# 40/70 MESH PROPPANT. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CRCRN. |
| | Perforation Data: | | Interval Top: | 11607 ft. | # Of Holes: | 108 | | Interval Bottom: | 12113 ft. | Hole Size: | 0.34 in. |
|
Formation COZZ Formation Classification: GW Status: PR - 6/1/2013 Interval Top: 11378 ft. Interval Bottom: 11557 ft.| Completed Information for Formation COZZETTE | | 1st Production Date: | 3/3/2010 | Choke Size: | | | Formation Name: | COZZETTE | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/1/2010 | | Treatment Summary: | FRACD WITH 11300# 100 & 54200# 40/70 MESH PROPPANT. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation COZZ. |
| | Perforation Data: | | Interval Top: | 11378 ft. | # Of Holes: | 48 | | Interval Bottom: | 11557 ft. | Hole Size: | 0.34 in. |
|
Formation WFCM Formation Classification: GW Status: PR - 6/1/2013 Interval Top: 10829 ft. Interval Bottom: 11013 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 3/3/2010 | Choke Size: | 0.297 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/1/2010 | | Treatment Summary: | 10829-10958 PROD-48 HOLES@.34"-FRACD W/13000# 100 & 63100# 40/70 MESH PROP. 11011-11013 SI, 12 HOLES@ .34"-FRACD W/5600# 100 & 27000# 40/70 MESH PROP. FRAC PLUG @10978, NOT DRILLED OUT. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/7/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1047 | | CALC_BBLS_H2O | 1198 | | CALC_MCF_GAS | 2592 | | CASING_PRESS | 2618 |
| | Perforation Data: | | Interval Top: | 10829 ft. | # Of Holes: | 60 | | Interval Bottom: | 11013 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 39 |
| Total Gas Produced (MCF) | 19143 |
| GOR | 490846 |
| GOR Determination | MCFE |
| Average BOE per Day | 9.179 |
| Average MCFE per Day | 53.228 |
| Federal Financial Assurance | i | Y |
|
|
