COGIS - WELL SCOUT CARD

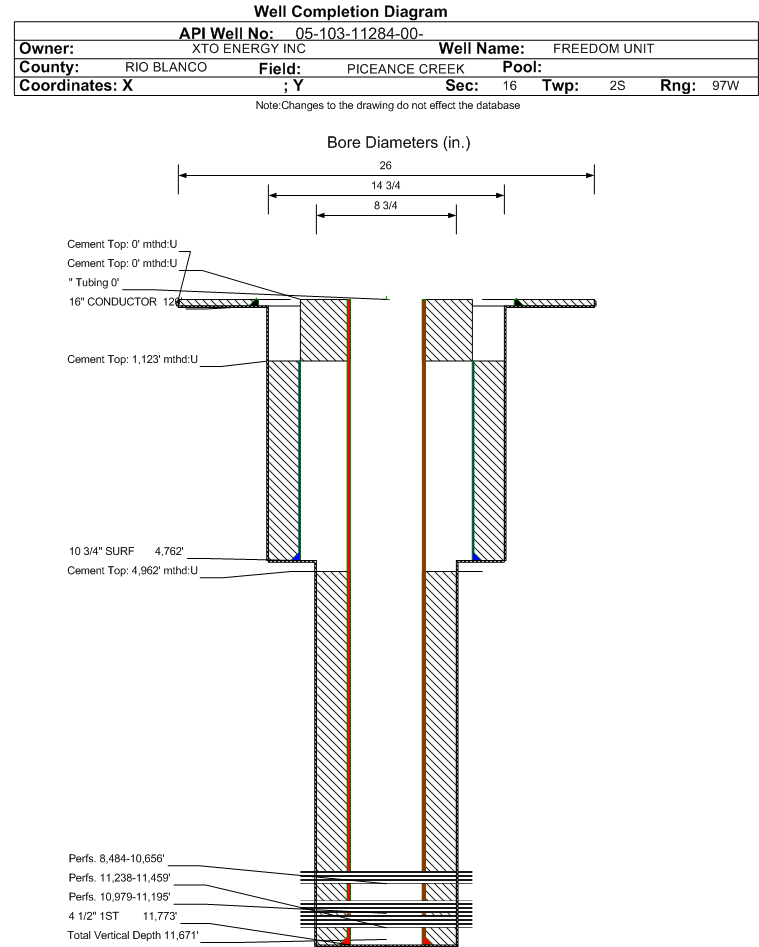

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-103-11284		Well Classification: GW Status: PR - 10/1/2022
Well Name/No:FREEDOM UNIT #297-16A10
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/1/2022
FacilityID:296070LocationID:336042
County:RIO BLANCO #103Location:SWNW 16 2S97W 6
Field:PICEANCE CREEK - #68800Elevation:6189 ft.
Basin:PICEANCE BASIN
Planned Location:2314FNL  733 FWLLat/Long: 39.877450 / -108.293943Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.877716 / -108.293942Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/1/2022             Measured TD: 11800 ft.    Vertical TD: 11671 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/1/2022
Wellbore PermitDIRECTIONAL
Permit #:20091240 Expiration Date:4/28/2010
Proposed Top PZ Location:Sec: Twp: Footage: 2378 FNL  1815 FWL
Bottom Hole Location:Sec:16 Twp: 2S 97W Footage: 2378 FNL  1815 FWL
Proposed Depth/Form:13500 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:FREEDOM UNIT Unit Number:COC069547X
Formation And Spacing:Code: MVRD , Formation: MESAVERDE , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: OHCRK , Formation: OHIO CREEK , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: , Depth: 12100 ft., Weight: 15.1 , Citings Type: PLANNED
Cement:Sacks: 250, Top: 5600 ft., Bottom: 12100 ft.
Wellbore Completed
Completion Date:10/29/2009
Spud Date:8/16/2009Spud Date Is:ACTUAL
Measured TD:11800 ft.Measured PB depth:11679 ft.
True Vertical TD:11671 ft.True Vertical PB depth:11639 ft.
Top PZ Location:Sec:16 Twp: 2S 97WFootage: 2336 FNL  1773 FWL
Bottom Hole Location:Sec:16 Twp: 2S 97WFootage: 2336 FNL  1773 FWL
Log Types:GASVIEW, RPM, RA BOND, PERFORM-APWD, SURVEY TO 6579, 5-MUD
Log Types:
Log Types:
Log Types:GASVIEW, RES PERF MONITOR, RADIAL ANALYSIS BOND LOG, PERFORM-APWD, SURVEY TO 6579, MUD LOGS, DIR SURVEY
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 120 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 96, Top: 0 ft., Bottom: 120 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 10.75 in., Top: 1123 ft., Depth: 4762 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 2090, Top: 1123 ft., Bottom: 4774 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 11773 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1400, Top: 4962 ft., Bottom: 11800 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 1123 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 540, Top: 0 ft., Bottom: 1123 ft., Determination Method:
Casing:String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 1123 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 540, Top: 0 ft., Bottom: 1123 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G4946 ft.6690 ft.NN
OHIO CREEK6690 ft.6930 ft.NN
WILLIAMS FORK - CAMEO6930 ft.10730 ft.NN
ROLLINS10730 ft.10910 ft.NN
COZZETTE10910 ft.11200 ft.NN
CORCORAN11200 ft.12040 ft.NN

Formation CRCRN                   Formation Classification:  GW                   Status:  PR - 10/1/2022                 Interval Top: 11238 ft.    Interval Bottom: 11459 ft.

 Completed Information for Formation CORCORAN
1st Production Date:2/27/2010Choke Size:0.313 in.
Formation Name:CORCORANCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/25/2010
Treatment Summary:FRACD WITH 8400# 100 AND 40500# 40/70 MESH PROPPANT.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/8/2010Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1054
CALC_BBLS_H2O 165
CALC_MCF_GAS 224
CASING_PRESS 1877
Perforation Data:
Interval Top:11238 ft.# Of Holes:48
Interval Bottom:11459 ft.Hole Size:0.34 in.

Formation COZZ                     Formation Classification:  GW                     Status:  PR - 10/1/2022                 Interval Top: 10979 ft.    Interval Bottom: 11195 ft.

 Completed Information for Formation COZZETTE
1st Production Date:2/27/2010Choke Size:0.313 in.
Formation Name:COZZETTECommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/26/2010
Treatment Summary:FRACD WITH 15400# 100 AND 74300# 40/70 MESH PROPPANT. SET FRAC PLUG AT 11228, DRILLED OUT.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/8/2010Test Method:FLOWING
Hours Tested:Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 92
CALC_MCF_GAS 125
CASING_PRESS 1877
Perforation Data:
Interval Top:10979 ft.# Of Holes:64
Interval Bottom:11195 ft.Hole Size:0.34 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 10/1/2022                 Interval Top: 8484 ft.    Interval Bottom: 10656 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:2/27/2010Choke Size:0.313 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/3/2010
Treatment Summary:FRACD WITH 180900# 100 AND 869800# 40/70 MESH PROPPANT. SET FRAC PLUGS AT 9186, 9150, 10485, DRILLED OUT.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/8/2010Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 1055
CALC_MCF_GAS 1434
CASING_PRESS 1877
Perforation Data:
Interval Top:8484 ft.# Of Holes:396
Interval Bottom:10656 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)4228
Total Gas Produced (MCF)44052
GOR10419
GOR DeterminationBOE
Average BOE per Day32.499
Average MCFE per Day188.507

 Federal Financial Assurance  i Y

 Tribal Well  i No
