COGIS - WELL SCOUT CARD

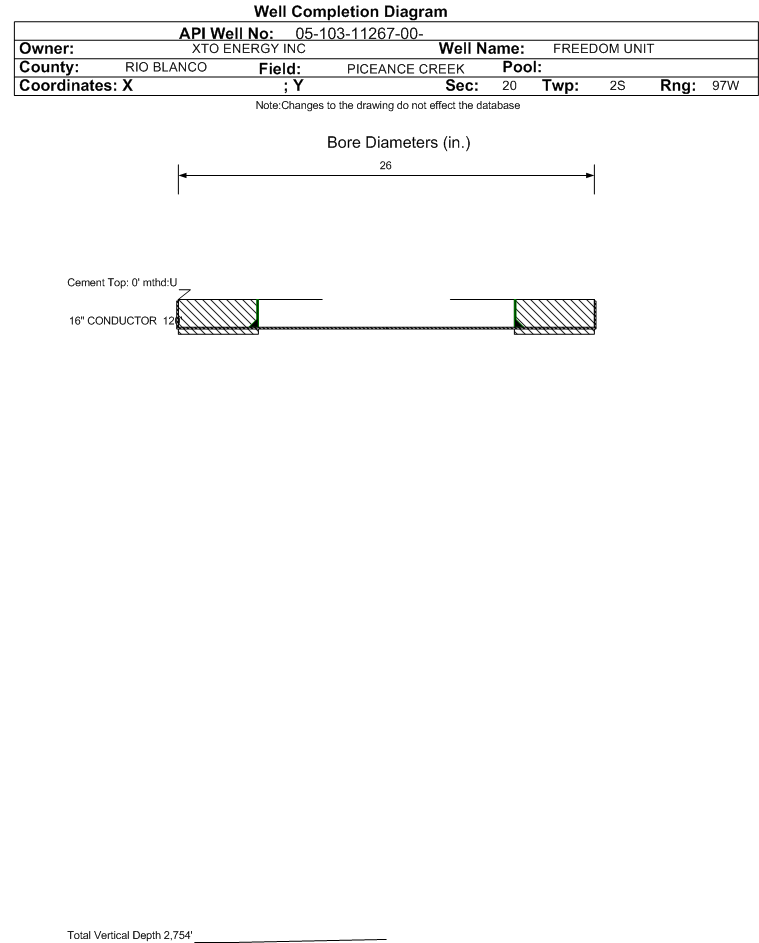

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-103-11267		Well Classification: GW Status: SI - 6/1/2025
Well Name/No:FREEDOM UNIT #297-20A2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC60724
Facility Status:SIStatus Date6/1/2025
FacilityID:295831LocationID:335945
County:RIO BLANCO #103Location:SENE 20 2S97W 6
Field:PICEANCE CREEK - #68800Elevation:6210 ft.
Basin:PICEANCE BASIN
Planned Location:2308FNL  661 FELLat/Long: 39.862911 / -108.298811Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.862911 / -108.298809Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: AB - 3/15/2009             Measured TD: 2789 ft.    Vertical TD: 2754 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 3/15/2009
Wellbore PermitDIRECTIONAL
Permit #:20081242 Expiration Date:4/27/2009
Proposed Top PZ Location:Sec: Twp: Footage: 2620 FSL  238 FEL
Bottom Hole Location:Sec:20 Twp: 2S 97W Footage: 2620 FSL  238 FEL
Proposed Depth/Form:12100 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit:FREEDOM UNIT Unit Number:COC69547X
Formation And Spacing:Code: MVRD , Formation: MESAVERDE , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: OHCRK , Formation: OHIO CREEK , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 10.75 in., Top: , Depth: 3600 ft., Weight: 45/5 , Citings Type: PLANNED
Cement:Sacks: 2010, Top: 0 ft., Bottom: 3600 ft.
Casing:String Type: 1ST, Hole Size: 9.875 in., Size: 7 in., Top: , Depth: 8000 ft., Weight: 26 , Citings Type: PLANNED
Cement:Sacks: 1310, Top: 3100 ft., Bottom: 8000 ft.
Casing:String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: , Depth: 12100 ft., Weight: 15.1 , Citings Type: PLANNED
Cement:Sacks: 620, Top: 5600 ft., Bottom: 12100 ft.
Wellbore Completed
Completion Date:3/15/2009
Spud Date:3/10/2009Spud Date Is:ACTUAL
Measured TD:2789 ft.Measured PB depth:1880 ft.
True Vertical TD:2754 ft.True Vertical PB depth:1861 ft.
Bottom Hole Location:Sec:20 Twp: 2S 97WFootage: 2620 FSL  238 FEL
Log Types:NONE
Casing:String Type: CONDUCTOR, Hole Size: , Size: , Top: 0 ft., Depth: 120 ft., Weight: 75 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: 0 ft., Bottom: 120 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 10.75 in., Top: 0 ft., Depth: 4306 ft., Weight: 45.5 , Citings Type: ACTUAL
Cement:Sacks: 1315, Top: 1168 ft., Bottom: 4306 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 9.875 in., Size: 7.625 in., Top: 0 ft., Depth: 7713 ft., Weight: 29.70 , Citings Type: ACTUAL
Cement:Sacks: 770, Top: 3800 ft., Bottom: 7713 ft., Determination Method: CALC
Casing:String Type: 2ND, Hole Size: 6.75 in., Size: 4.5 in., Top: 0 ft., Depth: 11653 ft., Weight: 15.10 , Citings Type: ACTUAL
Cement:Sacks: 1225, Top: 5933 ft., Bottom: 11653 ft., Determination Method: CBL
Casing:String Type: STAGE TOOL, Hole Size: , Size: 10.75 in., Top: , Depth: 1168 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 830, Top: 0 ft., Bottom: 1168 ft., Determination Method: VISU
  No formation data to display.

Sidetrack #01             Wellbore Classification: GW             Status: SI - 6/1/2025             Measured TD: 11668 ft.    Vertical TD: 11617 ft.

 Wellbore Data for Sidetrack #01Wellbore Classification: GW        SI - 6/1/2025
Wellbore PermitDIRECTIONAL
Permit #:Expiration Date:11/8/2010
Proposed Top PZ Location:Sec:20 Twp: 2S 97W Footage: 2593 FSL  332 FEL
Bottom Hole Location:Sec:20 Twp: 2S 97W Footage: 2593 FSL  332 FEL
Proposed Depth/Form:12100 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit:FREEDOM UNIT Unit Number:COC-69547X
Formation And Spacing:Code: MVRD , Formation: MESAVERDE , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: OHCRK , Formation: OHIO CREEK , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:4/14/2009
Spud Date:3/10/2009Spud Date Is:ACTUAL
Measured TD:11668 ft.Measured PB depth:
True Vertical TD:11617 ft.True Vertical PB depth:
Top PZ Location:Sec:20 Twp: 2S 97WFootage: 2593 FSL  332 FEL
Bottom Hole Location:Sec:20 Twp: 2S 97WFootage: 2593 FSL  332 FEL
Log Types:SEE NEXT PAGE
Log Types:SEE OPER.'S COMMENT NEXT PAGE.
Log Types:IMAGING-BEHIND-CASING-ULTRASONIC-W/CCL/GR; RAD-ANALYSIS-BOND; MUD (4); RES-PERF-MONITOR; COMPACT DROP-OFF FOCUSED INDUCTION; C-D-O COMP SONIC; C-D-O HOLE VOLUME; C-D-O PHOTO-DENSITY-DUAL-NEUTRON
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 120 ft., Weight: 84 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: 0 ft., Bottom: 120 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 10.75 in., Top: 0 ft., Depth: 4306 ft., Weight: 45.5 , Citings Type: ACTUAL
Cement:Sacks: 1315, Top: 1168 ft., Bottom: 4306 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 9.875 in., Size: 7 in., Top: 0 ft., Depth: 7713 ft., Weight: 29.7 , Citings Type: ACTUAL
Cement:Sacks: 770, Top: 3800 ft., Bottom: 7713 ft., Determination Method: CALC
Casing:String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 11653 ft., Weight: 15.1 , Citings Type: ACTUAL
Cement:Sacks: 1225, Top: 5523 ft., Bottom: 11653 ft., Determination Method: CALC
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 1168 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 830, Top: 0 ft., Bottom: 1168 ft., Determination Method: VISU
FormationInterval TopLog BottomCoredDSTs
WASATCH G4763 ft.6487 ft.NN
OHIO CREEK6487 ft.6717 ft.NN
WILLIAMS FORK - CAMEO6717 ft.10417 ft.NN
ROLLINS10417 ft.10612 ft.NN
COZZETTE10612 ft.10900 ft.NN
CORCORAN10900 ft.11668 ft.NN

Formation CRCRN                   Formation Classification:  GW                   Status:  SI - 6/1/2025                  Interval Top: 10926 ft.    Interval Bottom: 11004 ft.

 Completed Information for Formation CORCORAN
1st Production Date:10/7/2009Choke Size:0.406 in.
Formation Name:CORCORANCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/27/2009
Treatment Summary:FRAC'D W/ 108,600# PROPPANT (89,800# 40/70 & 18,1800# 100 MESH).
Tubing Size:2.375 in.Tubing Setting Depth:10863 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/8/2009Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1109
CALC_BBLS_H2O 268
CALC_BBLS_OIL 1983
CALC_GOR 0
CALC_MCF_GAS 290
CASING_PRESS 1983
Perforation Data:
Interval Top:10926 ft.# Of Holes:32
Interval Bottom:11004 ft.Hole Size:0.28 in.

Formation COZZ                     Formation Classification:  GW                     Status:  SI - 6/1/2025                  Interval Top: 10646 ft.    Interval Bottom: 10845 ft.

 Completed Information for Formation COZZETTE
1st Production Date:10/7/2009Choke Size:0.406 in.
Formation Name:COZZETTECommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/27/2009
Treatment Summary:FRAC'D W/ 163,800 PROPPANT (134,200# 40/70 & 29,600# 100 MESH).
Tubing Size:2.375 in.Tubing Setting Depth:10863 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/8/2009Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1109
CALC_BBLS_H2O 100
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 109
CASING_PRESS 1983
Perforation Data:
Interval Top:10646 ft.# Of Holes:80
Interval Bottom:10845 ft.Hole Size:0.28 in.

Formation WFCM                     Formation Classification:  GW                     Status:  SI - 6/1/2025                  Interval Top: 8450 ft.    Interval Bottom: 10354 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:10/7/2009Choke Size:0.406 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/27/2009
Treatment Summary:FRAC'D W/ 498,500 PROPPANT (411,400# 40/70 & 87,100 # 100 MESH). FRAC PLUGS @ 10,306' & 9,160'. DO ALL PLUGS.
Tubing Size:2.375 in.Tubing Setting Depth:10863 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/8/2009Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1109
CALC_BBLS_H2O 1290
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 1396
CASING_PRESS 1983
Perforation Data:
Interval Top:8450 ft.# Of Holes:224
Interval Bottom:10354 ft.Hole Size:0.28 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)9303
GOR
GOR DeterminationMCFE
Average BOE per Day4.066
Average MCFE per Day23.595

 Federal Financial Assurance  i

 Tribal Well  i No
