COGIS - WELL SCOUT CARD

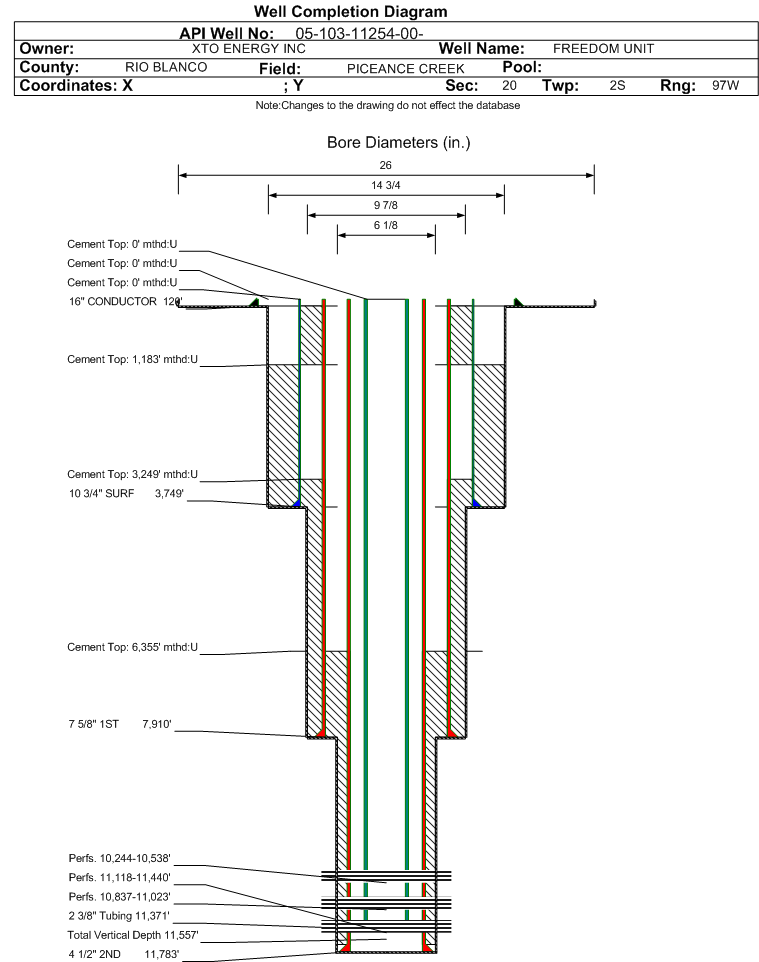

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-103-11254		Well Classification: GW Status: SI - 6/1/2025
Well Name/No:FREEDOM UNIT #297-20A3
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC60724
Facility Status:SIStatus Date6/1/2025
FacilityID:295710LocationID:335945
County:RIO BLANCO #103Location:SENE 20 2S97W 6
Field:PICEANCE CREEK - #68800Elevation:6211 ft.
Basin:PICEANCE BASIN
Planned Location:2315FNL  673 FELLat/Long: 39.862889 / -108.298856Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.862888 / -108.298854Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 6/1/2025             Measured TD: 11798 ft.    Vertical TD: 11557 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 6/1/2025
Wellbore PermitDIRECTIONAL
Permit #:20081241 Expiration Date:4/22/2009
Proposed Top PZ Location:Sec:20 Twp: 2S 97W Footage: 1818 FSL  7 FEL
Bottom Hole Location:Sec:20 Twp: 2S 97W Footage: 1818 FSL  7 FEL
Proposed Depth/Form:12100 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit:FREEDOM UNIT Unit Number:COC69547X
Formation And Spacing:Code: MVRD , Formation: MESAVERDE , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: OHCRK , Formation: OHIO CREEK , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:5/19/2009
Spud Date:4/19/2009Spud Date Is:ACTUAL
Measured TD:11798 ft.Measured PB depth:
True Vertical TD:11557 ft.True Vertical PB depth:
Top PZ Location:Sec:20 Twp: 2S 97WFootage: 1818 FSL  7 FEL
Bottom Hole Location:Sec:20 Twp: 2S 97WFootage: 1818 FSL  7 FEL
Log Types:SEE OPERATORS COMMENTS-NEXT PAGE
Log Types:IMAGING BEHIND CASING/ULTRASONIC; HOLE VOLUME; COMP-PHOTO-DENS/COMP-DUAL-NEUTRON; ARRAY INDUCTION-RTAP; COMP SONIC; PERFORM; CORRELATION; RAD-ANALYSIS BOND; RESERVOIR PERFORMANCE 'GASVIEW'; COMBO TVD; MUD
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 120 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 500, Top: 0 ft., Bottom: 120 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 10.75 in., Top: 0 ft., Depth: 3749 ft., Weight: 45.5 , Citings Type: ACTUAL
Cement:Sacks: 1080, Top: 1183 ft., Bottom: 3749 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 9.875 in., Size: 7.625 in., Top: 0 ft., Depth: 7910 ft., Weight: 29.7 , Citings Type: ACTUAL
Cement:Sacks: 920, Top: 3249 ft., Bottom: 7910 ft., Determination Method: CALC
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 1183 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 788, Top: 0 ft., Bottom: 1183 ft., Determination Method:
Casing:String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 11783 ft., Weight: 15.1 , Citings Type: ACTUAL
Cement:Sacks: 1230, Top: 6355 ft., Bottom: 11653 ft., Determination Method: CBL
Casing:String Type: 3RD, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH G4981 ft.6675 ft.NN
OHIO CREEK6675 ft.6901 ft.NN
WILLIAMS FORK - CAMEO6901 ft.10609 ft.NN
ROLLINS10609 ft.10803 ft.NN
COZZETTE10803 ft.11101 ft.NN
CORCORAN11101 ft.11798 ft.NN

Formation CRCRN                   Formation Classification:  GW                   Status:  SI - 6/1/2025                  Interval Top: 11118 ft.    Interval Bottom: 11440 ft.

 Completed Information for Formation CORCORAN
1st Production Date:10/7/2009Choke Size:0.422 in.
Formation Name:CORCORANCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/27/2009
Treatment Summary:FRAC'D W/ 148,800# PROPPANT (123,700# 40/70 & 25,100# 100 MESH).
Tubing Size:2.375 in.Tubing Setting Depth:11371 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1106
CALC_BBLS_H2O 231
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 380
CASING_PRESS 2002
Perforation Data:
Interval Top:11118 ft.# Of Holes:64
Interval Bottom:11440 ft.Hole Size:0.28 in.

Formation COZZ                     Formation Classification:  GW                     Status:  SI - 6/1/2025                  Interval Top: 10837 ft.    Interval Bottom: 11023 ft.

 Completed Information for Formation COZZETTE
1st Production Date:10/7/2009Choke Size:0.422 in.
Formation Name:COZZETTECommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/27/2009
Treatment Summary:FRAC'D W/ 83700# PROPPANT (70,200# 40/70 & 13,500 100 MESH). FRAC PLUG @ 10,980'.
Tubing Size:2.375 in.Tubing Setting Depth:11371 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/8/2009Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1106
CALC_BBLS_H2O 99
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 162
CASING_PRESS 2002
Perforation Data:
Interval Top:10837 ft.# Of Holes:64
Interval Bottom:11023 ft.Hole Size:0.28 in.

Formation WFCM                     Formation Classification:  GW                     Status:  SI - 6/1/2025                  Interval Top: 10244 ft.    Interval Bottom: 10538 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:10/7/2009Choke Size:0.422 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/29/2009
Treatment Summary:FRAC'D W/182,700# PROPPANT (148,400# 40/70 & 34,300# 100 MESH). DO PLUG.
Tubing Size:2.375 in.Tubing Setting Depth:11371 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/8/2009Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1106
CALC_BBLS_H2O 1228
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 2020
CASING_PRESS 2002
Perforation Data:
Interval Top:10244 ft.# Of Holes:96
Interval Bottom:10538 ft.Hole Size:0.28 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)6148
GOR
GOR DeterminationMCFE
Average BOE per Day2.688
Average MCFE per Day15.592

 Federal Financial Assurance  i Y

 Tribal Well  i No
