COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-103-11178		Well Classification: GW Status: PR - 10/1/2017
Well Name/No:FEDERAL #397-3K-K3
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 014302
Facility Status:PRStatus Date10/1/2017
FacilityID:301LocationID:335705
County:RIO BLANCO #103Location:NESW 3 3S97W 6
Field:SULPHUR CREEK - #80090Elevation:6713 ft.
Basin:PICEANCE BASIN
Planned Location:1573FSL  1561 FWLLat/Long: 39.815432 / -108.269688Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.815610 / -108.269500Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/1/2017             Measured TD: 13932 ft.    Vertical TD: 13932 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/1/2017
Wellbore PermitDIRECTIONAL
Permit #:20076735 Expiration Date:2/4/2009
Proposed Top PZ Location:Sec:3 Twp: 3S 97W Footage: 1775 FSL  1943 FWL
Bottom Hole Location:Sec:3 Twp: 3S 97W Footage: 1775 FSL  1943 FWL
Proposed Depth/Form:12994 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 528-1 , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: SEGO , Formation: SEGO , Order: 528-1 , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 528-1 , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:10/20/2008
Spud Date:9/24/2008Spud Date Is:ACTUAL
Measured TD:13932 ft.Measured PB depth:12904 ft.
True Vertical TD:13932 ft.True Vertical PB depth:12882 ft.
Top PZ Location:Sec:3 Twp: 3S 97WFootage: 1775 FSL  1943 FWL
Bottom Hole Location:Sec:3 Twp: 3S 97WFootage: 1775 FSL  1943 FWL
Log Types:AISF, HV, CPD/CDN, DS/GR/CL, CN/CZD/HDI/GR/CL, X MULTI AA/GR, CBL; MUD

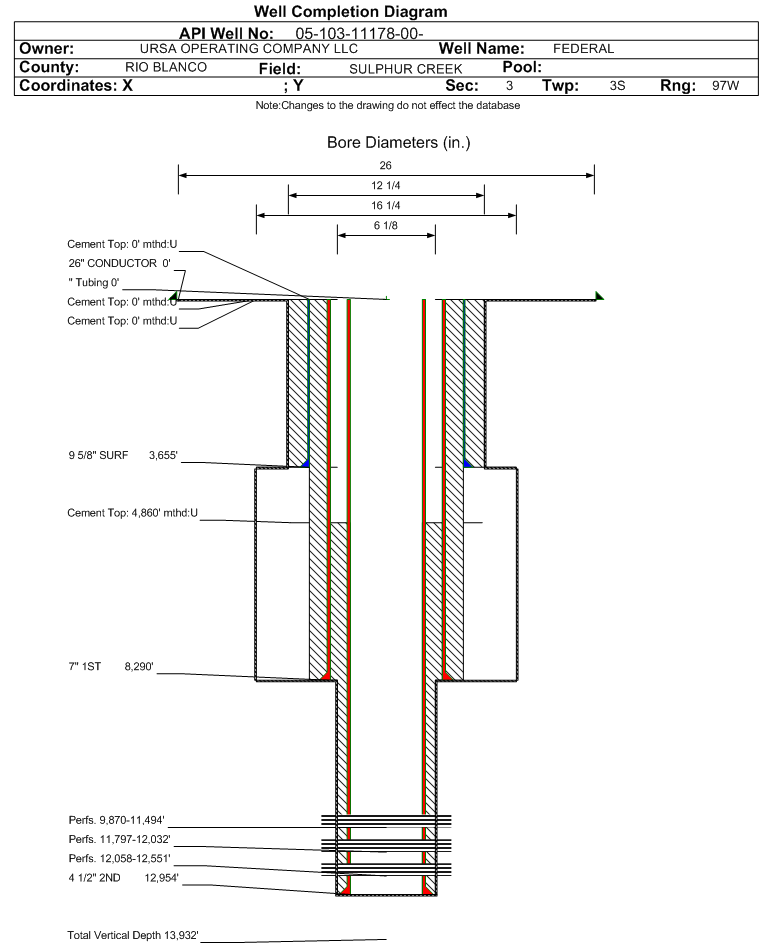

Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 26 in., Top: , Depth: , Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 3655 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 540, Top: 0 ft., Bottom: 3655 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 16.25 in., Size: 7 in., Top: 0 ft., Depth: 8290 ft., Weight: 29 , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 0 ft., Bottom: 8290 ft., Determination Method: CALC
Casing:String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 12954 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 389, Top: 4860 ft., Bottom: 12954 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH5985 ft.NN
OHIO CREEK7443 ft.NN
WILLIAMS FORK7591 ft.NN
CAMEO10954 ft.NN
ROLLINS11533 ft.NN
COZZETTE11698 ft.NN
CORCORAN12051 ft.NN

Formation CRCRN                   Formation Classification:  GW                   Status:  PR - 10/1/2017                 Interval Top: 12058 ft.    Interval Bottom: 12551 ft.

 Completed Information for Formation CORCORAN
1st Production Date:12/23/2008Choke Size:0.313 in.
Formation Name:CORCORANCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/15/2008
Treatment Summary:12058'-12187'-795# 70/140SD. 66557# 30/50 SD, 1613 BBLS FRESH WTR; 12228'-12551'-2000# 70/140 SD, 220350# 30/50 SD, 5174 BBLS FRESH WTR.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/3/2009Test Method:SEPARATOR/EFM 2
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 100
BBLS_OIL 0
BTU_GAS 1002
CALC_BBLS_H2O 100
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 525
CASING_PRESS 2815
MCF_GAS 525
Perforation Data:
Interval Top:12058 ft.# Of Holes:32
Interval Bottom:12551 ft.Hole Size:0.38 in.

Formation COZZ                     Formation Classification:  GW                     Status:  PR - 10/1/2017                 Interval Top: 11797 ft.    Interval Bottom: 12032 ft.

 Completed Information for Formation COZZETTE
1st Production Date:12/23/2008Choke Size:0.313 in.
Formation Name:COZZETTECommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/16/2008
Treatment Summary:1205# 70/140 SD, 100909# 30/50 SD, 2445 BBLS SLICK WATER.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/3/2009Test Method:SEPARATOR/EFM
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 126
BBLS_OIL 0
BTU_GAS 1002
CALC_BBLS_H2O 126
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 661
CASING_PRESS 2815
MCF_GAS 661
Perforation Data:
Interval Top:11797 ft.# Of Holes:6
Interval Bottom:12032 ft.Hole Size:0.38 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 10/1/2017                 Interval Top: 9870 ft.    Interval Bottom: 11494 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:12/23/2008Choke Size:0.313 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/17/2008
Treatment Summary:9870'-10225'-2000# 70/140 SD, 196846# 30/50 SD, 4619 BBLS FRESH WTR 10932'-11195'-2000# 70/140 SD, 173342# 30/50 SD, 4167 BBLS FRESH WTR. 10362'-10613'-2000# 70/140 SD, 130741# 30/50 SD, 3268 BBLS FRESH WTR; CONT. NEXT PAGE
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/3/2009Test Method:SEPARATOR/EFM
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 508
BBLS_OIL 0
BTU_GAS 1002
CALC_BBLS_H2O 508
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 2664
CASING_PRESS 2815
MCF_GAS 2664
Perforation Data:
Interval Top:9870 ft.# Of Holes:109
Interval Bottom:11494 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)18425
GOR
GOR DeterminationMCFE
Average BOE per Day8.713
Average MCFE per Day50.533

 Federal Financial Assurance  i Y

 Tribal Well  i No
