Wellbore #00 Wellbore Classification: GW Status: PR - 12/7/2007 Measured TD: 12202 ft. Vertical TD: 12105 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/7/2007 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20076930 | Expiration Date: | 2/3/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 766 FNL 837 FEL | | Bottom Hole Location: | Sec:2 Twp: 2S 98W | Footage: 766 FNL 837 FEL | | Proposed Depth/Form: | 12207 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | RYAN GULCH UNIT | Unit Number: | COC068239X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: SEGO , Formation: SEGO , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WSTC , Formation: WASATCH , Order: UNSPACED , Unit Acreage: , Drill Unit: |
| | |

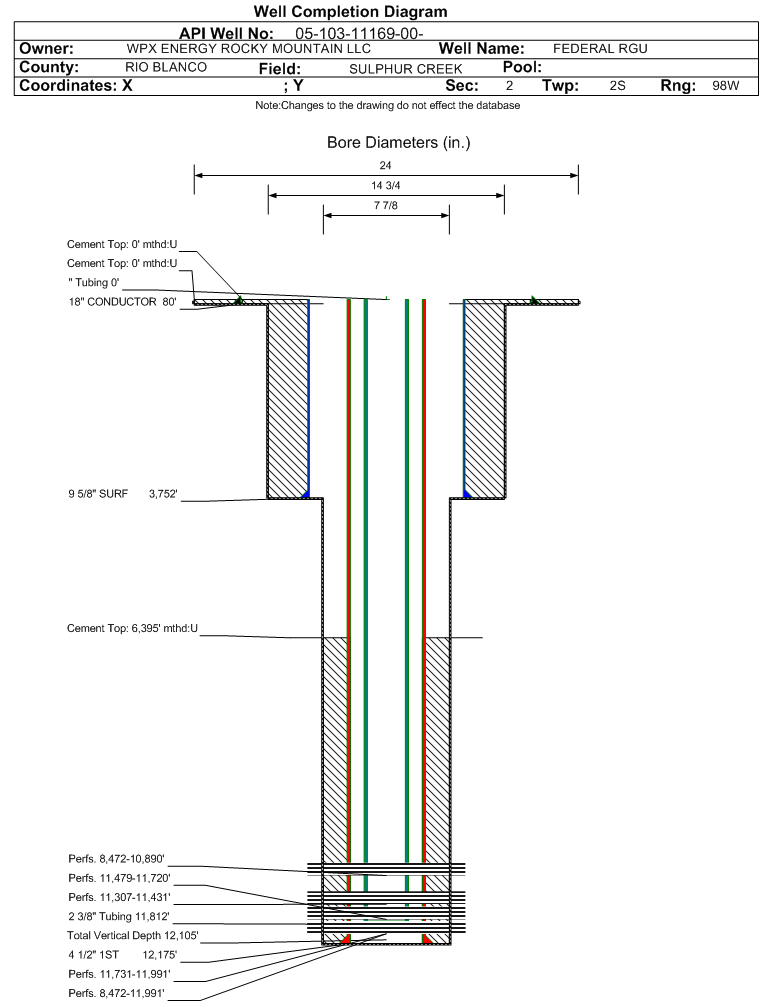

| Wellbore Completed | | Completion Date: | 10/14/2008 | | Spud Date: | 8/17/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 12202 ft. | Measured PB depth: | 12189 ft. | | True Vertical TD: | 12105 ft. | True Vertical PB depth: | 12092 ft. | | Top PZ Location: | Sec:2 Twp: 2S 98W | Footage: 768 FNL 836 FEL | | Bottom Hole Location: | Sec:2 Twp: 2S 98W | Footage: 768 FNL 836 FEL | | Log Types: | CBL; RMTE, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 48 ft., Depth: 80 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 135, Top: 0 ft., Bottom: 80 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 3752 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 2875, Top: 0 ft., Bottom: 3752 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 12175 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1550, Top: 6395 ft., Bottom: 12175 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | MESAVERDE | 7360 ft. | | N | N | | CAMEO | 10577 ft. | | N | N | | ROLLINS | 10999 ft. | | N | N | | COZZETTE | 11134 ft. | | N | N | | CORCORAN | 11361 ft. | | N | N | | SEGO | 11732 ft. | | N | N |
Formation SEGO Formation Classification: GW Status: PR - 12/7/2007 Interval Top: 11731 ft. Interval Bottom: 11991 ft.| Completed Information for Formation SEGO | | 1st Production Date: | 11/25/2008 | Choke Size: | | | Formation Name: | SEGO | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/25/2008 | | Treatment Summary: | 38 GALS 10% HCL ACID; 130,387# 30/50 SAND; 4,590 BBLS SLICKWATER |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation SEGO. |
| | Perforation Data: | | Interval Top: | 11731 ft. | # Of Holes: | 36 | | Interval Bottom: | 11991 ft. | Hole Size: | 0.36 in. |
|
Formation CRCRN Formation Classification: GW Status: PR - 12/7/2007 Interval Top: 11479 ft. Interval Bottom: 11720 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 11/25/2008 | Choke Size: | | | Formation Name: | CORCORAN | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/25/2008 | | Treatment Summary: | 34 GALS 10% HCL ACID; 144,074# 30/50 SAND; 4,766 BBLS SLICKWATER |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CRCRN. |
| | Perforation Data: | | Interval Top: | 11479 ft. | # Of Holes: | 37 | | Interval Bottom: | 11720 ft. | Hole Size: | 0.36 in. |
|
Formation COZZ Formation Classification: GW Status: PR - 12/7/2007 Interval Top: 11307 ft. Interval Bottom: 11431 ft.| Completed Information for Formation COZZETTE | | 1st Production Date: | 11/25/2008 | Choke Size: | | | Formation Name: | COZZETTE | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/25/2008 | | Treatment Summary: | 18 GALS 10% HCL ACID; 46,179# 30/50 SAND; 1,640 BBLS SLICKWATER |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation COZZ. |
| | Perforation Data: | | Interval Top: | 11307 ft. | # Of Holes: | 20 | | Interval Bottom: | 11431 ft. | Hole Size: | 0.36 in. |
|
Formation WFCM Formation Classification: GW Status: PR - 12/7/2007 Interval Top: 8472 ft. Interval Bottom: 10890 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 11/28/2008 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/26/2008 | | Treatment Summary: | 240 GALS 10% HCL ACID; 1,122,485# 30/50 SAND; 34,230 BBLS SLICKWATER |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WFCM. |
| | Perforation Data: | | Interval Top: | 8472 ft. | # Of Holes: | 259 | | Interval Bottom: | 10890 ft. | Hole Size: | 0.36 in. |
|
Formation WFILS Formation Classification: GW Status: CM - 12/30/2008 Interval Top: 8472 ft. Interval Bottom: 11991 ft.| Completed Information for Formation WILLIAMS FORK-ILES | | 1st Production Date: | 11/23/2008 | Choke Size: | 0.250 in. | | Formation Name: | WILLIAMS FORK-ILES | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/23/2008 | | Treatment Summary: | 329.2 GAL 10% HCI ACID; 1,443,125# 30/50 SAND; 45,227 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 11812 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/30/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1085 | | CALC_GOR | 0 | | CALC_MCF_GAS | 2100 | | CASING_PRESS | 2800 | | TUBING_PRESS | 2100 |
| | Perforation Data: | | Interval Top: | 8472 ft. | # Of Holes: | 352 | | Interval Bottom: | 11991 ft. | Hole Size: | 0.36 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 217 |
| Total Gas Produced (MCF) | 26517 |
| GOR | 122198 |
| GOR Determination | MCFE |
| Average BOE per Day | 13.134 |
| Average MCFE per Day | 76.194 |
| Federal Financial Assurance | i | Y |
|
|
