Wellbore #00 Wellbore Classification: GW Status: PR - 11/1/2025 Measured TD: 13150 ft. Vertical TD: 12477 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20076337 | Expiration Date: | 1/3/2009 | | Proposed Top PZ Location: | Sec:12 Twp: 2S 97W | Footage: 1084 FSL 2561 FWL | | Bottom Hole Location: | Sec:12 Twp: 2S 97W | Footage: 1084 FSL 2561 FWL | | Proposed Depth/Form: | 13750 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | PICEANCE CREEK | Unit Number: | COC-47666X | | Formation And Spacing: | Code: MVRD , Formation: MESAVERDE , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: OHCRK , Formation: OHIO CREEK , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WSTC , Formation: WASATCH , Order: , Unit Acreage: , Drill Unit: |
| | |

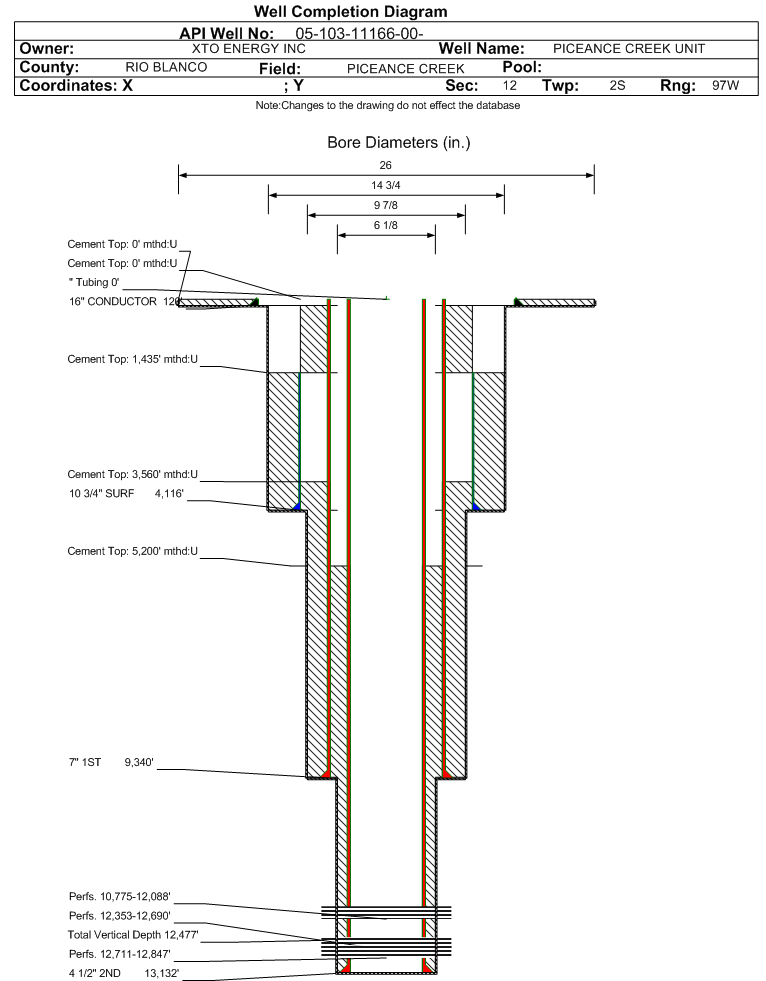

| Wellbore Completed | | Completion Date: | 11/3/2009 | | Spud Date: | 8/25/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 13150 ft. | Measured PB depth: | 13043 ft. | | True Vertical TD: | 12477 ft. | True Vertical PB depth: | 12370 ft. | | Top PZ Location: | Sec:12 Twp: 2S 97W | Footage: 1084 FSL 2561 FWL | | Bottom Hole Location: | Sec:12 Twp: 2S 97W | Footage: 1084 FSL 2561 FWL | | Log Types: | MUD LOGS, PERFORM-APWD, CORRELATION PRINT, IMAGING BEHIND CASING ULTRASONIC TOOL, DIRECTIONAL SURVEY, RESERVIOR PERFORMANCE MONITOR, RADIAL ANALYSIS BOND LOG | | Log Types: | | | Log Types: | | | Log Types: | | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 120 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 96, Top: 0 ft., Bottom: 120 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 10.75 in., Top: 1435 ft., Depth: 4116 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1180, Top: 1435 ft., Bottom: 4116 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 9.875 in., Size: 7 in., Top: 0 ft., Depth: 9340 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1405, Top: 3560 ft., Bottom: 9324 ft., Determination Method: | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 1435 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 890, Top: 0 ft., Bottom: 1435 ft., Determination Method: | | Casing: | String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 13132 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 950, Top: 5200 ft., Bottom: 13150 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 5950 ft. | 7910 ft. | N | N | | OHIO CREEK | 7910 ft. | 8480 ft. | N | N | | WILLIAMS FORK-CAMEO COAL | 8480 ft. | 12195 ft. | N | N | | ROLLINS | 12195 ft. | 12445 ft. | N | N | | COZZETTE | 12445 ft. | 12705 ft. | N | N | | CORCORAN | 12705 ft. | 13151 ft. | N | N |
Formation CRCRN Formation Classification: GW Status: PR - 11/1/2025 Interval Top: 12711 ft. Interval Bottom: 12847 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 2/24/2010 | Choke Size: | | | Formation Name: | CORCORAN | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/12/2010 | | Treatment Summary: | FRACED W/ 13,900# 100 MESH AND 67,500# 40/70 API PROPPANT. SET BRIDGE PLUG @ 12,724, NOT DRILLED OUT. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CRCRN. |
| | Perforation Data: | | Interval Top: | 12711 ft. | # Of Holes: | 60 | | Interval Bottom: | 12847 ft. | Hole Size: | 0.34 in. |
|
Formation COZZ Formation Classification: GW Status: PR - 11/1/2025 Interval Top: 12353 ft. Interval Bottom: 12690 ft.| Completed Information for Formation COZZETTE | | 1st Production Date: | 2/24/2010 | Choke Size: | | | Formation Name: | COZZETTE | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/13/2010 | | Treatment Summary: | FRACED W/ 24,300# 100 MESH AND 112,200# 40/70 API PROPPANT. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation COZZ. |
| | Perforation Data: | | Interval Top: | 12353 ft. | # Of Holes: | 72 | | Interval Bottom: | 12690 ft. | Hole Size: | 0.34 in. |
|
Formation WFCM Formation Classification: GW Status: PR - 11/1/2025 Interval Top: 10775 ft. Interval Bottom: 12088 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 2/24/2010 | Choke Size: | 0.234 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/15/2010 | | Treatment Summary: | FRACED W/ 108,400 100 MESH AND 481,800# 40/70# API PROPPANT. SET FRAC PLUGS @ 11,940 - 11,124-11,080 - 10,856, ALL FRAC PLUGS DRILLED OUT. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/25/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1062 | | CALC_BBLS_H2O | 779 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 3585 | | CASING_PRESS | 1586 |
| | Perforation Data: | | Interval Top: | 10775 ft. | # Of Holes: | 360 | | Interval Bottom: | 12088 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 69 |
| Total Gas Produced (MCF) | 9885 |
| GOR | 143260 |
| GOR Determination | MCFE |
| Average BOE per Day | 4.877 |
| Average MCFE per Day | 28.288 |
| Federal Financial Assurance | i | Y |
|
|
