COGIS - WELL SCOUT CARD

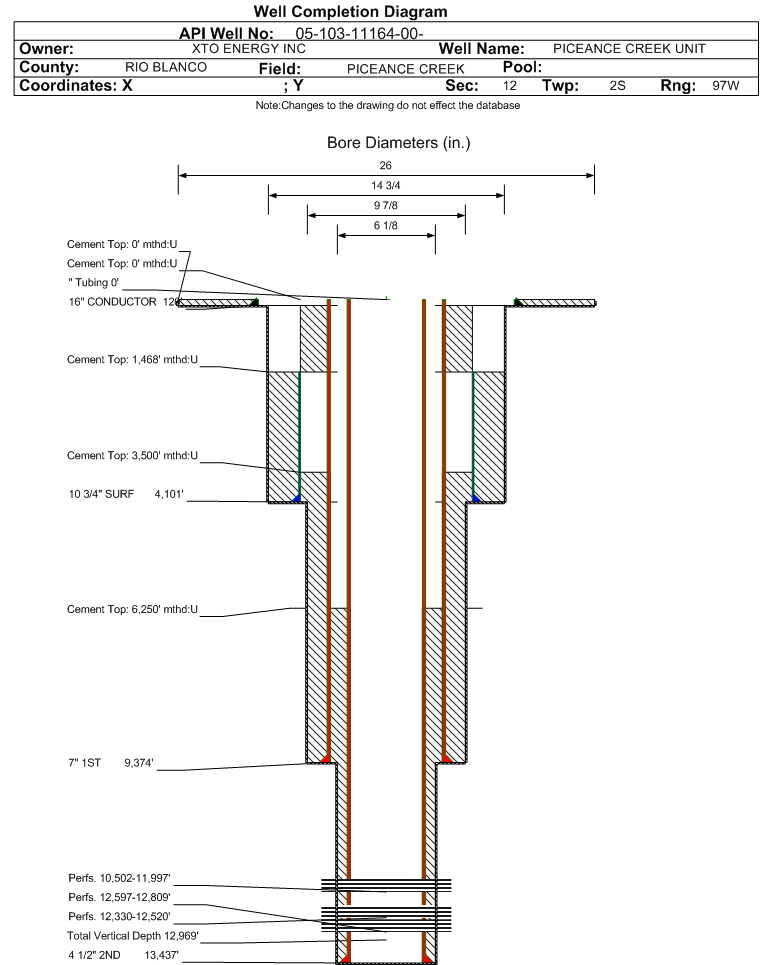

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-103-11164		Well Classification: GW Status: PR - 9/1/2025
Well Name/No:PICEANCE CREEK UNIT #297-12A6
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COD035679
Facility Status:PRStatus Date9/1/2025
FacilityID:294205LocationID:335898
County:RIO BLANCO #103Location:NWSW 12 2S97W 6
Field:PICEANCE CREEK - #68800Elevation:7182 ft.
Basin:PICEANCE BASIN
Planned Location:1745FSL  288 FWLLat/Long: 39.889045 / -108.237271Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.889045 / -108.237271Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/1/2025             Measured TD: 13445 ft.    Vertical TD: 12969 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/1/2025
Wellbore PermitDIRECTIONAL
Permit #:20076335 Expiration Date:1/3/2009
Proposed Top PZ Location:Sec: Twp: Footage: 1393 FNL  1242 FWL
Bottom Hole Location:Sec:12 Twp: 2S 97W Footage: 1393 FNL  1242 FWL
Proposed Depth/Form:13750 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit:PICEANCE CREEK Unit Number:COC-47666X
Formation And Spacing:Code: MVRD , Formation: MESAVERDE , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: OHCRK , Formation: OHIO CREEK , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:11/15/2009
Spud Date:10/18/2008Spud Date Is:ACTUAL
Measured TD:13445 ft.Measured PB depth:13347 ft.
True Vertical TD:12969 ft.True Vertical PB depth:12871 ft.
Top PZ Location:Sec:12 Twp: 2S 97WFootage: 1600 FNL  1082 FWL
Bottom Hole Location:Sec:12 Twp: 2S 97WFootage: 1600 FNL  1082 FWL
Log Types:PERFORM-APWD, GASVIEW, RESERVOIR PERF. MONITOR(2), SEGMENTED BOND LOG GAMMA RAY, 5-MUD LOGS, DIRECTIONAL SURVEY, RADIAL BOND LOG
Log Types:
Log Types:
Log Types:
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 120 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 96, Top: 0 ft., Bottom: 120 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 10.75 in., Top: 1468 ft., Depth: 4101 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1170, Top: 1468 ft., Bottom: 4101 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 9.875 in., Size: 7 in., Top: 0 ft., Depth: 9374 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1385, Top: 3500 ft., Bottom: 9374 ft., Determination Method:
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 1468 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 970, Top: 0 ft., Bottom: 1468 ft., Determination Method:
Casing:String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 13437 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 940, Top: 6250 ft., Bottom: 13437 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G5935 ft.7870 ft.NN
OHIO CREEK7870 ft.8480 ft.NN
WILLIAMS FORK - CAMEO8480 ft.12130 ft.NN
ROLLINS12130 ft.12320 ft.NN
COZZETTE12320 ft.12625 ft.NN
CORCORAN12625 ft.13445 ft.NN

Formation CRCRN                   Formation Classification:  GW                   Status:  PR - 9/1/2025                  Interval Top: 12597 ft.    Interval Bottom: 12809 ft.

 Completed Information for Formation CORCORAN
1st Production Date:2/2/2010Choke Size:0.219 in.
Formation Name:CORCORANCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/20/2010
Treatment Summary:FRACED W/ 22,400# 100 MESH AND 108,100# 40/70 API PROPPANT.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/16/2010Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1062
CALC_BBLS_H2O 94
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 502
CASING_PRESS 2939
GRAVITY_OIL 50
Perforation Data:
Interval Top:12597 ft.# Of Holes:48
Interval Bottom:12809 ft.Hole Size:0.34 in.

Formation COZZ                     Formation Classification:  GW                     Status:  PR - 9/1/2025                  Interval Top: 12330 ft.    Interval Bottom: 12520 ft.

 Completed Information for Formation COZZETTE
1st Production Date:2/2/2010Choke Size:0.219 in.
Formation Name:COZZETTECommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/21/2010
Treatment Summary:FRACED W/21,300# 100 MESH AND 97,300# 40/70 API PROPPANT. SET FRAC PLUGS @ 12,342 PLUG DRILLED OUT.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/16/2010Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1062
CALC_BBLS_H2O 37
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 198
CASING_PRESS 2939
GRAVITY_OIL 50
Perforation Data:
Interval Top:12330 ft.# Of Holes:72
Interval Bottom:12520 ft.Hole Size:0.34 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 9/1/2025                  Interval Top: 10502 ft.    Interval Bottom: 11997 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:2/2/2010Choke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/24/2010
Treatment Summary:FRACED W/162,400# 100 MESH AND 759,200# 40/70 API PROPPANT. SET FRAC PLUGS @ 12,030 - 11,830 - 11,320 - 10,935, DRILLED OUT.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/16/2010Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1062
CALC_BBLS_H2O 447
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 2396
CASING_PRESS 2939
GRAVITY_OIL 50
Perforation Data:
Interval Top:10502 ft.# Of Holes:432
Interval Bottom:11997 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)47
Total Gas Produced (MCF)15408
GOR327829
GOR DeterminationMCFE
Average BOE per Day7.457
Average MCFE per Day43.210

 Federal Financial Assurance  i Y

 Tribal Well  i No
