Wellbore #00 Wellbore Classification: GW Status: SI - 1/1/2026 Measured TD: 13255 ft. Vertical TD: 12732 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 1/1/2026 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20076336 | Expiration Date: | 1/3/2009 | | Proposed Top PZ Location: | Sec:12 Twp: 2S 97W | Footage: 633 FSL 2044 FWL | | Bottom Hole Location: | Sec:12 Twp: 2S 97W | Footage: 633 FSL 2044 FWL | | Proposed Depth/Form: | 13750 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | PICEANCE CREEK | Unit Number: | COC-47666X | | Formation And Spacing: | Code: MVRD , Formation: MESAVERDE , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: OHCRK , Formation: OHIO CREEK , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WSTC , Formation: WASATCH , Order: , Unit Acreage: , Drill Unit: |
| | |

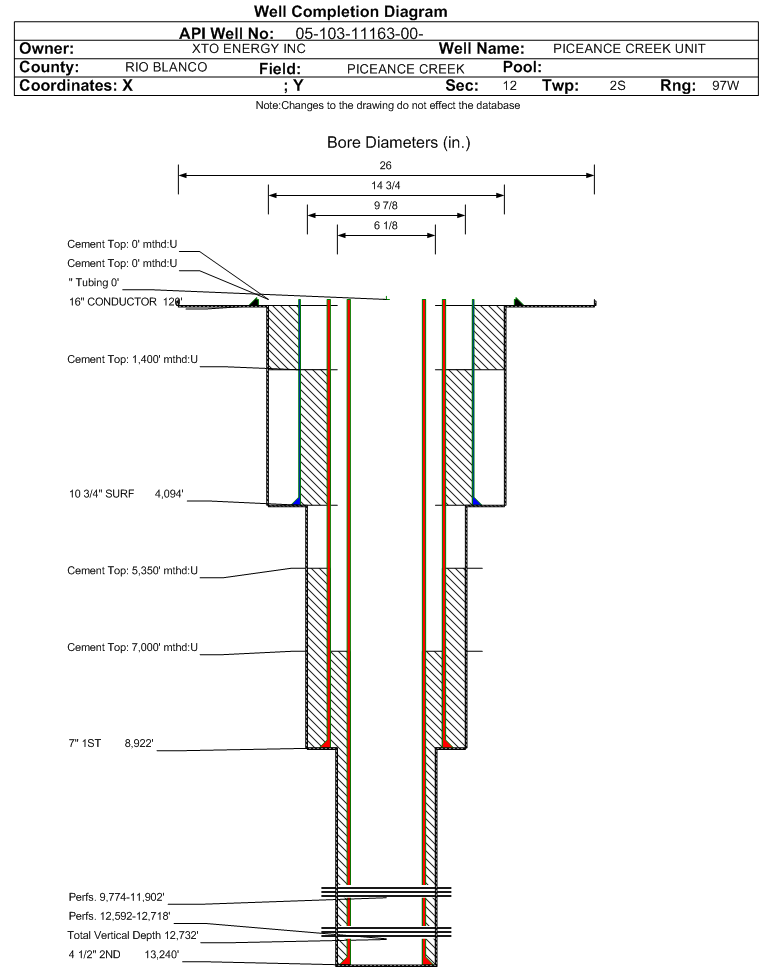

| Wellbore Completed | | Completion Date: | 9/17/2009 | | Spud Date: | 8/18/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 13255 ft. | Measured PB depth: | 13195 ft. | | True Vertical TD: | 12732 ft. | True Vertical PB depth: | 12672 ft. | | Top PZ Location: | Sec:12 Twp: 2S 97W | Footage: 633 FSL 2044 FWL | | Bottom Hole Location: | Sec:12 Twp: 2S 97W | Footage: 633 FSL 2044 FWL | | Log Types: | | | Log Types: | GASVIEWS, PERFORM-APWD, IMAGING BEHIND CASING ULTRASONIC TOOL, CORRELATION PRINT, RESERVOIR PERF. MONITOR, RADIAL ANALYSIS BOND LOG, 5-MUD LOGS, DIRECTIONAL SURVEY | | Log Types: | | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 120 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 96, Top: 0 ft., Bottom: 120 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 10.75 in., Top: 0 ft., Depth: 4094 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 980, Top: 0 ft., Bottom: 1400 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 9.875 in., Size: 7 in., Top: 0 ft., Depth: 8922 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1360, Top: 5350 ft., Bottom: 8922 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 4094 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1165, Top: 1400 ft., Bottom: 4094 ft., Determination Method: | | Casing: | String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 13240 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 935, Top: 7000 ft., Bottom: 13255 ft., Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 5830 ft. | 7760 ft. | N | N | | OHIO CREEK | 7760 ft. | 8370 ft. | N | N | | WILLIAMS FORK - CAMEO | 8370 ft. | 12030 ft. | N | N | | ROLLINS | 12030 ft. | 12220 ft. | N | N | | COZZETTE | 12220 ft. | 12500 ft. | N | N | | CORCORAN | 12500 ft. | 13255 ft. | N | N |
Formation CRCRN Formation Classification: GW Status: SI - 1/1/2026 Interval Top: 12592 ft. Interval Bottom: 12718 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 1/29/2010 | Choke Size: | 0.313 in. | | Formation Name: | CORCORAN | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/12/2010 | | Treatment Summary: | FRACED W/ 19,600# 100 MESH AND 99,100# 40/70 API PROPPANT. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/30/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1062 | | CALC_BBLS_H2O | 485 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 571 | | CASING_PRESS | 1840 | | GRAVITY_OIL | 50 |
| | Perforation Data: | | Interval Top: | 12592 ft. | # Of Holes: | 48 | | Interval Bottom: | 12718 ft. | Hole Size: | 0.34 in. |
|
Formation WFCM Formation Classification: GW Status: SI - 1/1/2026 Interval Top: 9774 ft. Interval Bottom: 11902 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 1/29/2010 | Choke Size: | 0.313 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/12/2010 | | Treatment Summary: | FRACED W/ 156,400# 100 MESH AND 722,400# 40/70 API PROPPANT. SET FRAC PLUGS @ 11,856 - 11,600 - 11,025-10,068 |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/30/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1062 | | CALC_BBLS_H2O | 2450 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 2886 | | CASING_PRESS | 1840 | | GRAVITY_OIL | 50 |
| | Perforation Data: | | Interval Top: | 9774 ft. | # Of Holes: | 444 | | Interval Bottom: | 11902 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 13604 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 6.422 |
| Average MCFE per Day | 37.226 |
| Federal Financial Assurance | i | Y |
|
|
