COGIS - WELL SCOUT CARD

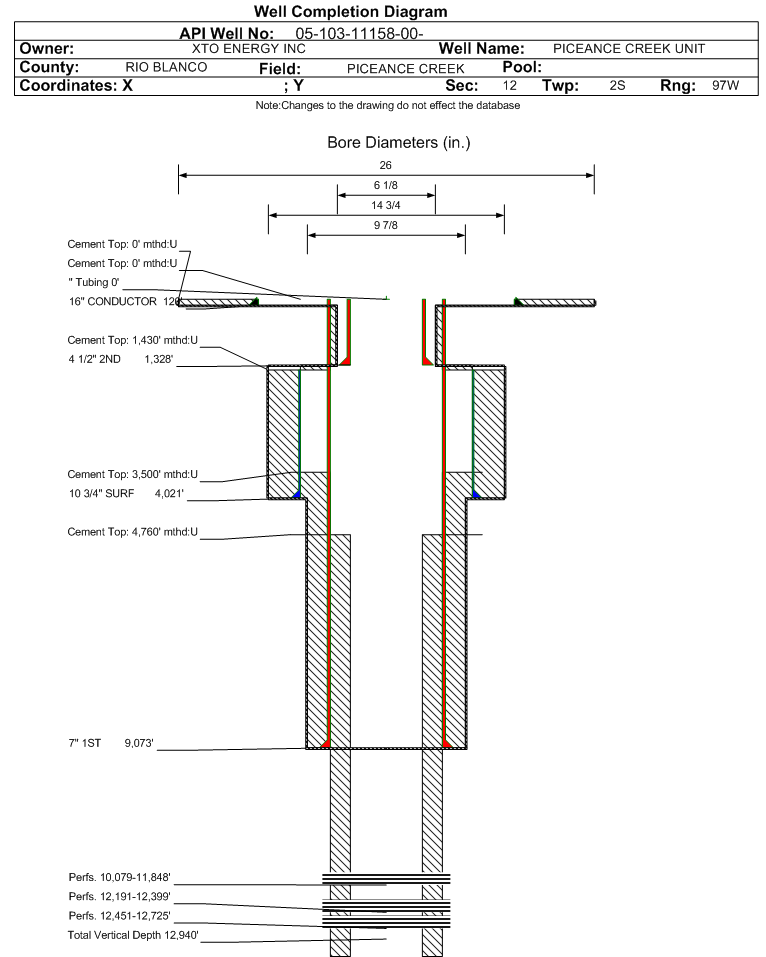

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-103-11158		Well Classification: GW Status: PR - 9/1/2025
Well Name/No:PICEANCE CREEK UNIT #297-12A2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date9/1/2025
FacilityID:294142LocationID:335898
County:RIO BLANCO #103Location:NWSW 12 2S97W 6
Field:PICEANCE CREEK - #68800Elevation:7185 ft.
Basin:PICEANCE BASIN
Planned Location:1740FSL  300 FWLLat/Long: 39.889031 / -108.237230Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.889030 / -108.237229Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/1/2025             Measured TD: 13295 ft.    Vertical TD: 12940 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/1/2025
Wellbore PermitDIRECTIONAL
Permit #:20076339 Expiration Date:12/27/2008
Proposed Top PZ Location:Sec:12 Twp: 2S 97W Footage: 2301 FSL  2012 FWL
Bottom Hole Location:Sec:12 Twp: 2S 97W Footage: 2301 FSL  2012 FWL
Proposed Depth/Form:13750 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit:PICEANCE CREEK Unit Number:COC-47666X
Formation And Spacing:Code: MVRD , Formation: MESAVERDE , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: OHCRK , Formation: OHIO CREEK , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:10/12/2009
Spud Date:9/15/2008Spud Date Is:ACTUAL
Measured TD:13295 ft.Measured PB depth:13192 ft.
True Vertical TD:12940 ft.True Vertical PB depth:12836 ft.
Top PZ Location:Sec:12 Twp: 2S 97WFootage: 2301 FSL  2012 FWL
Bottom Hole Location:Sec:12 Twp: 2S 97WFootage: 2301 FSL  2012 FWL
Log Types:
Log Types:
Log Types:
Log Types:PERFORM - APWD, IMAGING BEHIND CASING, CORRELATION PRINT CCL/GAMMA RAY, 5- MUD LOGS, RESERVOIR PERFORMANCE MONITOR, RADIAL ANALYSIS BOND LOG, DIRECTIONAL SURVEY
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 120 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 96, Top: 0 ft., Bottom: 120 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 10.75 in., Top: 1430 ft., Depth: 4021 ft., Weight: 45.5 , Citings Type: ACTUAL
Cement:Sacks: 1170, Top: 1430 ft., Bottom: 4021 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 9.875 in., Size: 7 in., Top: 0 ft., Depth: 9073 ft., Weight: 26 , Citings Type: ACTUAL
Cement:Sacks: 1345, Top: 3500 ft., Bottom: 9073 ft., Determination Method: CALC
Casing:String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 1430 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 808, Top: 0 ft., Bottom: 1430 ft., Determination Method: CALC
Casing:String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 1328 ft., Weight: 15.1 , Citings Type: ACTUAL
Cement:Sacks: 935, Top: 4760 ft., Bottom: 13295 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH G5780 ft.7620 ft.NN
OHIO CREEK7620 ft.8190 ft.NN
WILLIAMS FORK - CAMEO8190 ft.11950 ft.NN
ROLLINS11950 ft.12160 ft.NN
COZZETTE12160 ft.12450 ft.NN
CORCORAN12450 ft.13300 ft.NN

Formation CRCRN                   Formation Classification:  GW                   Status:  PR - 9/1/2025                  Interval Top: 12451 ft.    Interval Bottom: 12725 ft.

 Completed Information for Formation CORCORAN
1st Production Date:1/28/2010Choke Size:0.313 in.
Formation Name:CORCORANCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/14/2010
Treatment Summary:FRACED W/28,200# 100 MESH AND 135,400# 40/70 API PROPPANT. SET FRAC PLUGS @ 11,856 AND 11,819, DRILLED OUT.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/13/2010Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1062
CALC_BBLS_H2O 140
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 343
CASING_PRESS 2243
GRAVITY_OIL 50
Perforation Data:
Interval Top:12451 ft.# Of Holes:96
Interval Bottom:12725 ft.Hole Size:0.34 in.

Formation COZZ                     Formation Classification:  GW                     Status:  PR - 9/1/2025                  Interval Top: 12191 ft.    Interval Bottom: 12399 ft.

 Completed Information for Formation COZZETTE
1st Production Date:1/28/2010Choke Size:0.313 in.
Formation Name:COZZETTECommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/14/2010
Treatment Summary:FRACED W/14,100# 100 MESH AND 69,000# 40/70 API PROPPANT.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/13/2010Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1062
CALC_BBLS_H2O 52
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 128
CASING_PRESS 2243
GRAVITY_OIL 50
Perforation Data:
Interval Top:12191 ft.# Of Holes:48
Interval Bottom:12399 ft.Hole Size:0.34 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 9/1/2025                  Interval Top: 10079 ft.    Interval Bottom: 11848 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:1/28/2010Choke Size:0.313 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/14/2010
Treatment Summary:FRACED W/120,300# 100 MESH AND 554,600# 40/70 API PROPPANT. SET FRAC PLUGS @ 11,410 - 10,820 - 10,740 - 10,350, PLUGS DRILLED OUT.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/13/2010Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1062
CALC_BBLS_H2O 646
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 1588
CASING_PRESS 2243
GRAVITY_OIL 50
Perforation Data:
Interval Top:10079 ft.# Of Holes:384
Interval Bottom:11848 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)1221
Total Gas Produced (MCF)31700
GOR25962
GOR DeterminationMCFE
Average BOE per Day18.346
Average MCFE per Day106.378

 Federal Financial Assurance  i Y

 Tribal Well  i No
