Wellbore #00 Wellbore Classification: GW Status: PR - 3/1/2022 Measured TD: 11301 ft. Vertical TD: 11178 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/1/2022 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20074792 | Expiration Date: | 11/1/2008 | | Proposed Top PZ Location: | Sec:19 Twp: 2S 97W | Footage: 1176 442 | | Bottom Hole Location: | Sec:19 Twp: 2S 97W | Footage: 1176 442 | | Proposed Depth/Form: | 11458 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 527-4 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: SEGO , Formation: SEGO , Order: 527-4 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 527-1 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 26 in., Top: , Depth: 100 ft., Weight: 54 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

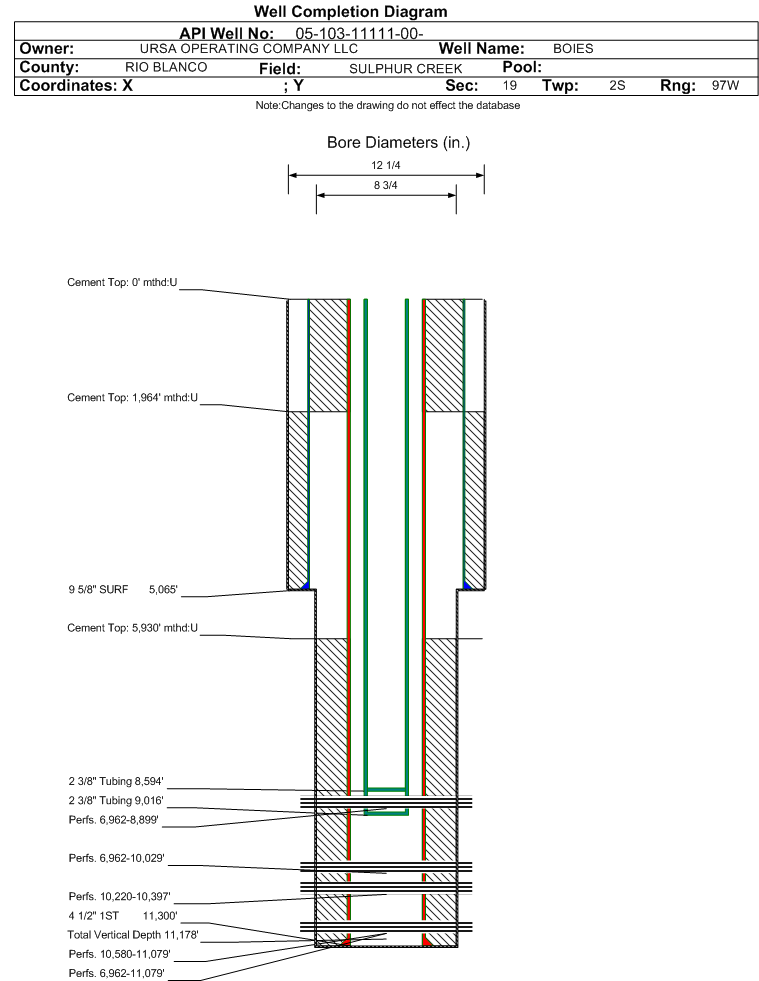

| Wellbore Completed | | Completion Date: | 4/18/2008 | | Spud Date: | 3/24/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 11301 ft. | Measured PB depth: | 11247 ft. | | True Vertical TD: | 11178 ft. | True Vertical PB depth: | 11124 ft. | | Top PZ Location: | Sec:19 Twp: 2S 97W | Footage: 1176 FSL 442 FEL | | Bottom Hole Location: | Sec:19 Twp: 2S 97W | Footage: 1176 FSL 442 FEL | | Log Types: | PLATFORM EXP-CN/LITHO/AI, AI/GR, CBL, RMTE, GR/CCL/TEMP | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 5065 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 643, Top: 1964 ft., Bottom: 5065 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 11300 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 709, Top: 5930 ft., Bottom: 11300 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 1964 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 426, Top: 0 ft., Bottom: 1964 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FORT UNION | 4825 ft. | | N | N | | OHIO CREEK | 6141 ft. | | N | N | | WILLIAMS FORK | 6304 ft. | | N | N | | CAMEO | 9579 ft. | | N | N | | ROLLINS | 10078 ft. | | N | N | | COZZETTE | 10216 ft. | | N | N | | CORCORAN | 10559 ft. | | N | N |
Formation CRCRN Formation Classification: GW Status: PR - 3/1/2022 Interval Top: 10580 ft. Interval Bottom: 11079 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 8/21/2012 | Choke Size: | | | Formation Name: | CORCORAN | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 8/17/2008 | | Treatment Summary: | 10580'-10817' - 115500# 20/40 OTTAWA SAND, 3008 BBLS SLICK WATER; 10846'-11079' - 190100# 20/40 OTTAWA SAND, 4430 BBLS SLICK WATER | | Formation Treatment | | Treatment Date: | 8/12/2008 | | Treatment Summary: | 10580'-10817' - 115500# 20/40 OTTAWA SAND, 3008 BBLS SLICKWATER, 10846'-11079' - 190100# 20/40 OTTAWA SAND, 4430 BBLS SLICKWATER. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9016 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 91 | | BBLS_OIL | 1 | | BTU_GAS | 1072 | | CALC_BBLS_H2O | 91 | | CALC_BBLS_OIL | 1 | | CALC_GOR | 564000 | | CALC_MCF_GAS | 564 | | CASING_PRESS | 688 | | GRAVITY_OIL | 52 | | MCF_GAS | 564 |
| | Perforation Data: | | Interval Top: | 10580 ft. | # Of Holes: | 38 | | Interval Bottom: | 11079 ft. | Hole Size: | 0.35 in. |
|
Formation COZZ Formation Classification: GW Status: PR - 3/1/2022 Interval Top: 10220 ft. Interval Bottom: 10397 ft.| Completed Information for Formation COZZETTE | | 1st Production Date: | 8/21/2012 | Choke Size: | | | Formation Name: | COZZETTE | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 8/13/2008 | | Treatment Summary: | 141400# 20/40 OTTAWA SAND, 3507 BBLS SLICKWATER | | Formation Treatment | | Treatment Date: | 8/12/2008 | | Treatment Summary: | 141400# 20/40 OTTAWA SAND, 3507 BBLS SLICK WATER. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9016 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 47 | | BBLS_OIL | 0 | | BTU_GAS | 1072 | | CALC_BBLS_H2O | 47 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 288 | | CASING_PRESS | 688 | | MCF_GAS | 288 |
| | Perforation Data: | | Interval Top: | 10220 ft. | # Of Holes: | 17 | | Interval Bottom: | 10397 ft. | Hole Size: | 0.35 in. |
|
Formation WFCM Formation Classification: GW Status: PR - 3/1/2022 Interval Top: 6962 ft. Interval Bottom: 10029 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 8/21/2012 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 8/13/2008 | | Treatment Summary: | 8983'-9259' - 169300# 20/40 OTTAWA SAND, 4080 BBLS SLICK WATER. 9278'-9533' - 169500# 20/40 OTTAWA SAND, 4018 BBLS SLICK WATER. 9678'-10029' - 192000# 20/40 OTTAWA SAND, 4640 BBLS SLICK WATER. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9016 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 258 | | BBLS_OIL | 3 | | BTU_GAS | 1072 | | CALC_BBLS_H2O | 258 | | CALC_BBLS_OIL | 3 | | CALC_GOR | 530000 | | CALC_MCF_GAS | 1590 | | CASING_PRESS | 688 | | GRAVITY_OIL | 52 | | MCF_GAS | 1590 |
| | Perforation Data: | | Interval Top: | 6962 ft. | # Of Holes: | 211 | | Interval Bottom: | 10029 ft. | Hole Size: | 0.35 in. |
|
Formation WFILS Formation Classification: GW Status: CM - 4/27/2016 Interval Top: 6962 ft. Interval Bottom: 11079 ft.| Completed Information for Formation WILLIAMS FORK-ILES | | 1st Production Date: | 8/21/2012 | Choke Size: | 20.000 in. | | Formation Name: | WILLIAMS FORK-ILES | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9016 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/1/2012 | Test Method: | Separator/EFM | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 60 | | BBLS_OIL | 1 | | BTU_GAS | 1 | | CALC_BBLS_H2O | 60 | | CALC_BBLS_OIL | 1 | | CALC_GOR | 982000 | | CALC_MCF_GAS | 982 | | CASING_PRESS | 811 | | GRAVITY_OIL | 52 | | MCF_GAS | 982 | | TUBING_PRESS | 473 |
| | Perforation Data: | | Interval Top: | 6962 ft. | # Of Holes: | 266 | | Interval Bottom: | 11079 ft. | Hole Size: | 0.35 in. |
|
Formation WMFK Formation Classification: OG Status: CM - 2/16/2012 Interval Top: 6962 ft. Interval Bottom: 8899 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 9/11/2011 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 8/24/2011 | | Treatment Summary: | 6962'-8899' - 198200# 100 MESH, 868100# 30/50 SAND, 38401 BBLS SLICK WATER. SEE ATTACHED DOCUMENT FOR DETAILS OF TREATMENT IN STAGES. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8594 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/20/2011 | Test Method: | SEPARATOR/EFM | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 639 | | BTU_GAS | 1 | | CALC_BBLS_H2O | 639 | | CALC_MCF_GAS | 1768 | | CASING_PRESS | 978 | | MCF_GAS | 1768 |
| | Perforation Data: | | Interval Top: | 6962 ft. | # Of Holes: | 146 | | Interval Bottom: | 8899 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 110 |
| Total Gas Produced (MCF) | 22134 |
| GOR | 201218 |
| GOR Determination | MCFE |
| Average BOE per Day | 10.708 |
| Average MCFE per Day | 62.073 |
| Federal Financial Assurance | i | |
|
|
