COGIS - WELL SCOUT CARD

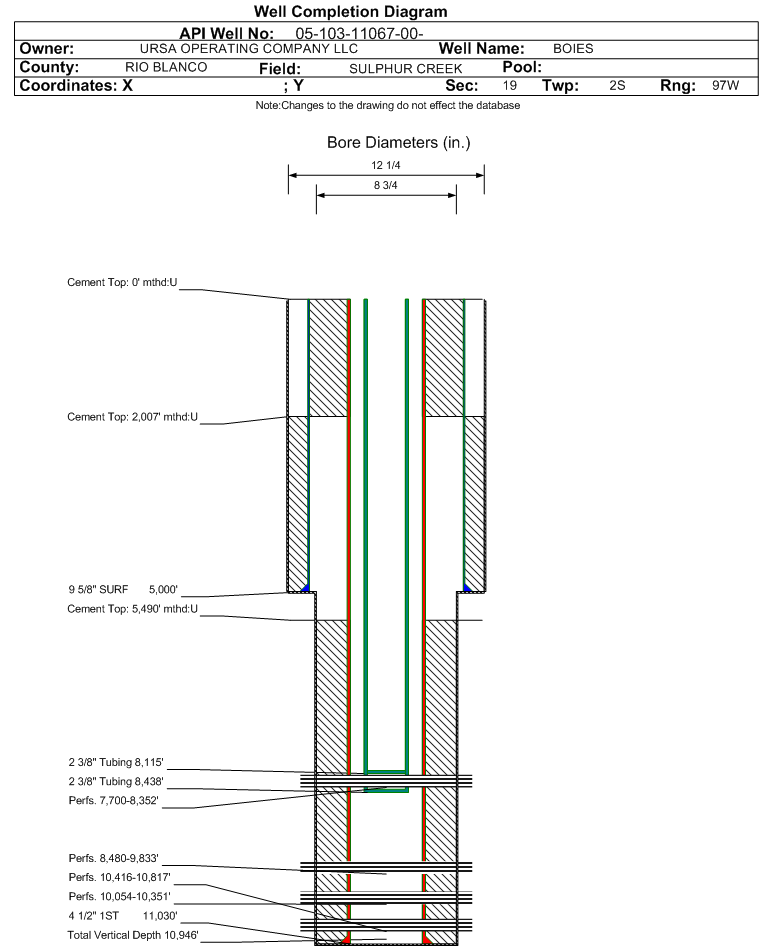

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-103-11067		Well Classification: GW Status: PA - 10/30/2023
Well Name/No:BOIES #B-19P-03
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date10/30/2023
FacilityID:291947LocationID:335891
County:RIO BLANCO #103Location:SESE 19 2S97W 6
Field:SULPHUR CREEK - #80090Elevation:6247 ft.
Basin:PICEANCE BASIN
Planned Location:334FSL  1111 FELLat/Long: 39.855510 / -108.319155Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.855404 / -108.319289Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 2/1/2024             Measured TD: 11030 ft.    Vertical TD: 10946 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 2/1/2024
Wellbore PermitDIRECTIONAL
Permit #:20073422 Expiration Date:8/14/2008
Proposed Top PZ Location:Sec:19 Twp: 2S 97W Footage: 509 FSL  1916 FEL
Bottom Hole Location:Sec:19 Twp: 2S 97W Footage: 509 FSL  1916 FEL
Proposed Depth/Form:11339 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 527-2 , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: SEGO , Formation: SEGO , Order: 527-2 , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 527-1 , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:7/17/2008
Spud Date:6/27/2008Spud Date Is:ACTUAL
Measured TD:11030 ft.Measured PB depth:10885 ft.
True Vertical TD:10946 ft.True Vertical PB depth:10801 ft.
Top PZ Location:Sec:19 Twp: 2S 97WFootage: 509 FSL  1916 FEL
Bottom Hole Location:Sec:19 Twp: 2S 97WFootage: 509 FSL  1916 FEL
Log Types:AISF, HV, CBL/GR/CC, CPD/CDN
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 5000 ft., Weight: 40 , Citings Type: ACTUAL
Cement:Sacks: 463, Top: 2007 ft., Bottom: 5000 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 11030 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 780, Top: 5490 ft., Bottom: 11030 ft., Determination Method: CBL
Casing:String Type: STAGE TOOL, Hole Size: , Size: 9.625 in., Top: , Depth: 2007 ft., Weight: 40 , Citings Type: ACTUAL
Cement:Sacks: 340, Top: 0 ft., Bottom: 2007 ft., Determination Method: VISU
Additional Cement:String Type: 1ST , Top: , Depth: 7000 ft., Bottom: , Sacks: 200, Method: Squeeze
Additional Cement:String Type: 1ST , Top: , Depth: 7678 ft., Bottom: , Sacks: 175, Method: Squeeze
Additional Cement:String Type: 1ST , Top: , Depth: 7341 ft., Bottom: , Sacks: 200, Method: Squeeze
Additional Cement:String Type: 1ST , Top: , Depth: 7678 ft., Bottom: , Sacks: 175, Method: Squeeze
FormationInterval TopLog BottomCoredDSTs
WASATCH A2109 ft.NN
OHIO CREEK6038 ft.NN
WILLIAMS FORK6209 ft.NN
CAMEO9369 ft.NN
ROLLINS9907 ft.NN
COZZETTE10047 ft.NN
CORCORAN10583 ft.NN

Formation CRCRN                   Formation Classification:  GW                   Status:  AB - 10/30/2023                Interval Top: 10416 ft.    Interval Bottom: 10817 ft.

 Completed Information for Formation CORCORAN
1st Production Date:10/12/2008Choke Size:
Formation Name:CORCORANCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:10/3/2008
Treatment Summary:10308'-10625' - 163200# 20/40 OTTAWA SAND, 3859 BBLS SLICK WATER; 10654'-10817' - 155600# 20/40 OTTAWA SAND, 3873 BBLS SLICK WATER.
Tubing Size:2.375 in.Tubing Setting Depth:8438 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/22/2008Test Method:SEPARATOR/EFM
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 76
BBLS_OIL 3
BTU_GAS 1066
CALC_BBLS_H2O 76
CALC_BBLS_OIL 3
CALC_GOR 129667
CALC_MCF_GAS 389
CASING_PRESS 1550
GRAVITY_OIL 52
MCF_GAS 389
Perforation Data:
Interval Top:10416 ft.# Of Holes:26
Interval Bottom:10817 ft.Hole Size:0.35 in.

Formation COZZ                     Formation Classification:  GW                     Status:  AB - 10/30/2023                Interval Top: 10054 ft.    Interval Bottom: 10351 ft.

 Completed Information for Formation COZZETTE
1st Production Date:10/12/2008Choke Size:
Formation Name:COZZETTECommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:10/22/2008
Treatment Summary:106200# 30/50 OTTAWA SAND, 2570 BBLS SLICK WATER
Formation Treatment
Treatment Date:10/4/2008
Treatment Summary:106,200# 30/50 OTTAWA SAND, 2570 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:8438 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/22/2008Test Method:SEPARATOR/EFM
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 32
BBLS_OIL 1
BTU_GAS 1066
CALC_BBLS_H2O 32
CALC_BBLS_OIL 1
CALC_GOR 16100
CALC_MCF_GAS 161
CASING_PRESS 1550
GRAVITY_OIL 52
MCF_GAS 161
Perforation Data:
Interval Top:10054 ft.# Of Holes:19
Interval Bottom:10351 ft.Hole Size:0.35 in.

Formation WFCM                     Formation Classification:  GW                     Status:  AB - 10/30/2023                Interval Top: 6793 ft.    Interval Bottom: 9833 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:10/12/2008Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:8/24/2011
Treatment Summary:6793'-6932' - 35600# 100 MESH, 181600# 30/50 AND, 7916 BBLS SLICKWATER; 7632'-7879' - 27700# 100 MESH, 139K #30/50 SAND, 6224 BBLS SLICKWATER. 7021'-7342' - 15000# 100 MESH, 78000# 30/50 AND, 4580 BBLS SLICKWATER. 7899'-8149' - 32100# 100 MESH, 160100# 30/50 SAND, 7219 BBLS SLICKWATER. 7376'-7601' - 24400# 100 MESH, 123K# 30/50 SAND, 5564 BBLS SLICKWATER. 8184'-8352' - 15800# 100 MESH, 126700# 30/50 AND, SLICK WATER.
Formation Treatment
Treatment Date:10/5/2008
Treatment Summary:8450-8941' - 170,100# 30/50 OTTAWA SAND, 3861 BBLS SLICKWATER / 9010-9319' - 170,100# 30/50 OTTAWA SAND, 4455 BBL SLICKWATER / 9434-9833' - 246,900# 30/50 OTTAWA SAND, 5858 BBLS SLICKWATER.
Tubing Size:2.375 in.Tubing Setting Depth:8438 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/22/2008Test Method:SEPARATOR/EFM
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 248
BBLS_OIL 10
BTU_GAS 1066
CALC_BBLS_H2O 248
CALC_BBLS_OIL 10
CALC_GOR 126000
CALC_MCF_GAS 1260
CASING_PRESS 1550
GRAVITY_OIL 52
MCF_GAS 1260
Perforation Data:
Interval Top:6793 ft.# Of Holes:65
Interval Bottom:9833 ft.Hole Size:0.35 in.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 4/27/2016                 Interval Top: 6793 ft.    Interval Bottom: 8352 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:10/9/2012Choke Size:16.000 in.
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:8/24/2011
Treatment Summary:6793'-6932'' - 35600# 100 MESH, 181600# 30/50 SAND, 7916 BBLS SLICK WATER; 7632'-7879' - 27700# 100 MESH, 139K# 30/50 SAND, 6224 BBLS SLICK WATER; 7021'-7342' - 15000# 100 MESH, 78000# 30/50 SAND, 4580 BBLS SLICK WATER; 7899'-8149' - 32100# 100 MESH, 160100# 30/50 SAND, 7219 BBLS SLICK WATER; 7376'-7601' - 24400# 100 MESH, 123K# 30/50 SAND, 5564 BBLS SLICK WATER; 8184'-8352' - 15800# 100 MESH, 126700# 30/50 SAND, SLICK WATER.
Tubing Size:2.375 in.Tubing Setting Depth:8115 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/12/2012Test Method:Separator/EFM
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 23
BBLS_OIL 1
BTU_GAS 1
CALC_BBLS_H2O 23
CALC_BBLS_OIL 1
CALC_GOR 360000
CALC_MCF_GAS 360
CASING_PRESS 975
GRAVITY_OIL 52
MCF_GAS 360
TUBING_PRESS 400
Perforation Data:
Interval Top:6793 ft.# Of Holes:132
Interval Bottom:8352 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/30/2023
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
