COGIS - WELL SCOUT CARD

Related Insp MIT GIS Old GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-103-11036		Well Classification: GW	Status: PR - 4/28/2008
Well Name/No:	BOIES #A-29D-20M4 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:
Facility Status:	PR	Status Date	4/28/2008
FacilityID:	291116	LocationID:	335629
County:	RIO BLANCO #103	Location:	NWNW 29 2S97W 6
Field:	SULPHUR CREEK - #80090	Elevation:	6250 ft.
Basin:	PICEANCE BASIN
Planned Location:	718FNL 645 FWL	Lat/Long: 39.852656 / -108.312890	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 39.852660 / -108.312880	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 4/28/2008 Measured TD: 11608 ft. Vertical TD: 11505 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 4/28/2008
Wellbore Permit			DIRECTIONAL
Permit #:	20072424	Expiration Date:	6/19/2008
Proposed Top PZ Location:	Sec: Twp:	Footage: 165 FSL 660 FWL
Bottom Hole Location:	Sec:20 Twp: 2S 97W	Footage: 165 FSL 660 FWL
Proposed Depth/Form:	11574 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: ILES , Formation: ILES , Order: 527-2 , Unit Acreage: , Drill Unit:
Formation And Spacing:	Code: SEGO , Formation: SEGO , Order: 527-2 , Unit Acreage: , Drill Unit:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 527-1 , Unit Acreage: , Drill Unit:

Wellbore Completed
Completion Date:	11/19/2007
Spud Date:	10/20/2007	Spud Date Is:	ACTUAL
Measured TD:	11608 ft.	Measured PB depth:	11532 ft.
True Vertical TD:	11505 ft.	True Vertical PB depth:	11429 ft.
Top PZ Location:	Sec:20 Twp: 2S 97W	Footage: 227 FSL 668 FWL
Bottom Hole Location:	Sec:20 Twp: 2S 97W	Footage: 227 FSL 668 FWL
Log Types:	DENS/NEU, IND, CBL/GR

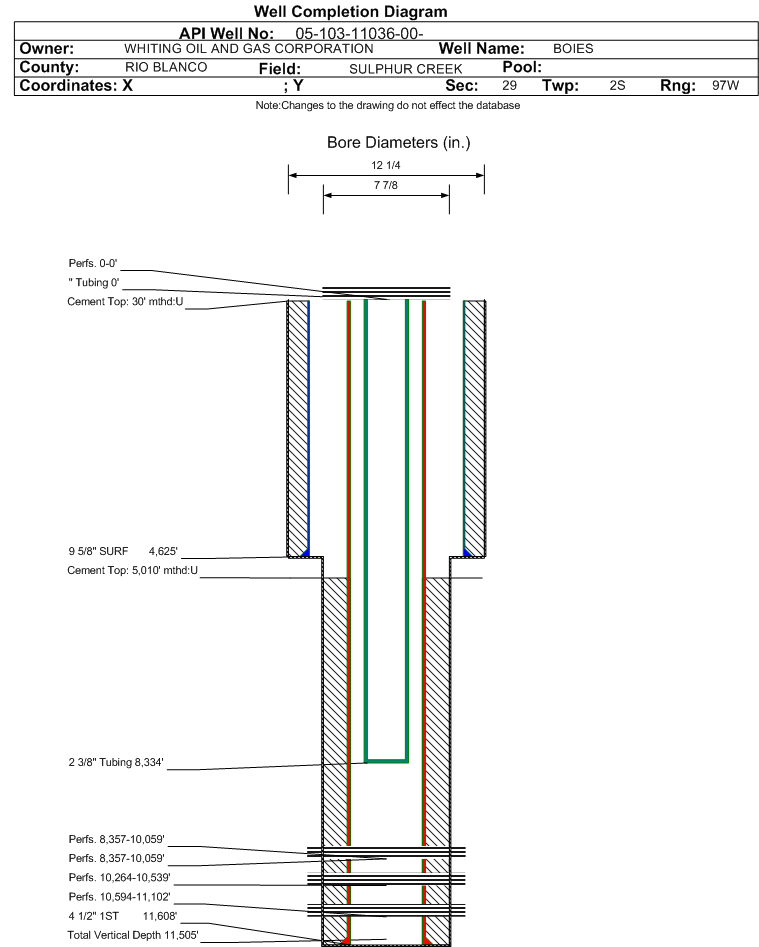

Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 30 ft., Depth: 4625 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 1039, Top: 30 ft., Bottom: 4625 ft., Determination Method:
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 30 ft., Depth: 11608 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 1003, Top: 5010 ft., Bottom: 11608 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
WASATCH A	2157 ft.		N	N
WASATCH	4726 ft.		N	N
OHIO CREEK	6160 ft.		N	N
WILLIAMS FORK	6334 ft.		N	N
CAMEO	9617 ft.		N	N
ROLLINS	10116 ft.		N	N
COZZETTE	10254 ft.		N	N
CORCORAN	10613 ft.		N	N
SEGO	11393 ft.		N	N

Formation CRCRN Formation Classification: GW Status: PR - 4/28/2008 Interval Top: 10594 ft. Interval Bottom: 11102 ft.

Completed Information for Formation CORCORAN

1st Production Date:	4/13/2008	Choke Size:	0.375 in.
Formation Name:	CORCORAN	Commingled:	Yes
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	4/9/2008
Treatment Summary:	10594'-1053' - 131300# 20/40 WH SAND, 3185 BBLS SLICKWATER; 10898'-11102' - 197500# 20/40 WH SAND, 4625 BBLS SLICKWATER

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	8334 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	4/28/2008	Test Method:	SEPARATOR/EFM
Hours Tested:	17	Gas Type:	DRY
Gas Disposal:	FLARED
BBLS_H2O	30
BBLS_OIL	0
BTU_GAS	1065
CALC_BBLS_H2O	42
CALC_BBLS_OIL	0
CALC_GOR	0
CALC_MCF_GAS	913
CASING_PRESS	3025
MCF_GAS	647

Perforation Data:
Interval Top:	10594 ft.	# Of Holes:	35
Interval Bottom:	11102 ft.	Hole Size:	0.35 in.

Formation COZZ Formation Classification: GW Status: PR - 4/28/2008 Interval Top: 10264 ft. Interval Bottom: 10539 ft.

Completed Information for Formation COZZETTE

1st Production Date:	4/13/2008	Choke Size:	0.375 in.
Formation Name:	COZZETTE	Commingled:	Yes
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	4/10/2008
Treatment Summary:	1050900# 30/50 WH SAND, 3907 BBLS SLICKWATER

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	8334 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	4/28/2008	Test Method:	SEPARATOR/EFM
Hours Tested:	17	Gas Type:	DRY
Gas Disposal:	FLARED
BBLS_H2O	15
BBLS_OIL	0
BTU_GAS	1065
CALC_BBLS_H2O	21
CALC_BBLS_OIL	0
CALC_GOR	0
CALC_MCF_GAS	457
CASING_PRESS	3025
MCF_GAS	324

Perforation Data:
Interval Top:	10264 ft.	# Of Holes:	19
Interval Bottom:	10539 ft.	Hole Size:	0.35 in.

Formation CMEO Formation Classification: GW Status: CM - 4/28/2008 Interval Top: 9617 ft.

Completed Information for Formation CAMEO

1st Production Date:	N/A	Choke Size:
Formation Name:	CAMEO	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	11/19/2007
Treatment Summary:

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation CMEO.

Perforation Data:
Interval Top:		# Of Holes:
Interval Bottom:		Hole Size:

Formation WFCM Formation Classification: GW Status: PR - 4/28/2008 Interval Top: 8357 ft. Interval Bottom: 10059 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	4/13/2008	Choke Size:	0.375 in.
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	Yes
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	4/10/2008
Treatment Summary:	8357'-9312' - 206400# 30/50 WH SAND, 5047 BBLS SLICKWATER; 9276'-9529' - 293900# 30/50 WH SAND, 7005 BBLS SLICKWATER; 9739'-10059' - 178200# 30/50 WH SAND, 41582 BBLS SLICKWATER;

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	8334 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	4/28/2008	Test Method:	SEPARATOR/EFM
Hours Tested:	17	Gas Type:	DRY
Gas Disposal:	FLARED
BBLS_H2O	45
BBLS_OIL	0
BTU_GAS	1065
CALC_BBLS_H2O	63
CALC_BBLS_OIL	0
CALC_GOR	0
CALC_MCF_GAS	1370
CASING_PRESS	3025
MCF_GAS	972

Perforation Data:
Interval Top:	8357 ft.	# Of Holes:	61
Interval Bottom:	10059 ft.	Hole Size:	0.35 in.

Formation WMFK Formation Classification: GW Status: CM - 4/28/2008 Interval Top: 8357 ft. Interval Bottom: 10059 ft.

Completed Information for Formation WILLIAMS FORK

1st Production Date:	4/13/2008	Choke Size:	0.375 in.
Formation Name:	WILLIAMS FORK	Commingled:	Yes
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	4/10/2008
Treatment Summary:	8357-9132 - 206,400# 30/50 WHITE SAND; 5,047 BBLS SLICK WATER; 9276-9529 - 293,900# 30/50 WHITE SAND; 7,005 BBLS SLICK WATER; 9739'-10059' - 178200# 30/50 WHITE SAND, 41582 BBLS SLICKWATER

Test Type	Measure
Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	4/28/2008	Test Method:	SEPARATOR/EFM
Hours Tested:	17	Gas Type:	DRY
Gas Disposal:	FLARED
BBLS_H2O	45
BTU_GAS	1065
CALC_BBLS_H2O	63
CALC_MCF_GAS	1370
CASING_PRESS	3025
MCF_GAS	971

Perforation Data:
Interval Top:	8357 ft.	# Of Holes:	61
Interval Bottom:	10059 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

December 2024 - November 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	62
Total Gas Produced (MCF)	11046
GOR	178161
GOR Determination	MCFE
Average BOE per Day	5.389
Average MCFE per Day	31.251
