COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-103-11027		Well Classification: GW Status: SI - 10/1/2025
Well Name/No:FEDERAL RGU #343-1-298
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC62053
Facility Status:SIStatus Date10/1/2025
FacilityID:290889LocationID:335640
County:RIO BLANCO #103Location:SESE 1 2S98W 6
Field:SULPHUR CREEK - #80090Elevation:6282 ft.
Basin:PICEANCE BASIN
Planned Location:788FSL  756 FELLat/Long: 39.900998 / -108.336108Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.900998 / -108.336108Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 10/1/2025             Measured TD: 12014 ft.    Vertical TD: 11994 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 10/1/2025
Wellbore PermitDIRECTIONAL
Permit #:20072074 Expiration Date:6/3/2008
Proposed Top PZ Location:Sec:1 Twp: 22 98W Footage: 1259 FSL  600 FEL
Bottom Hole Location:Sec:1 Twp: 22 98W Footage: 1259 FSL  600 FEL
Proposed Depth/Form:11841 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit:RYAN GULCH UNIT Unit Number:COC068239X
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: SEGO , Formation: SEGO , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:3/1/2008
Spud Date:11/26/2007Spud Date Is:ACTUAL
Measured TD:12014 ft.Measured PB depth:11970 ft.
True Vertical TD:11994 ft.True Vertical PB depth:11950 ft.
Top PZ Location:Sec:1 Twp: 22 98WFootage: 1259 FSL  600 FEL
Bottom Hole Location:Sec:1 Twp: 22 98WFootage: 1259 FSL  600 FEL
Log Types:CBL, RMTE, MUD

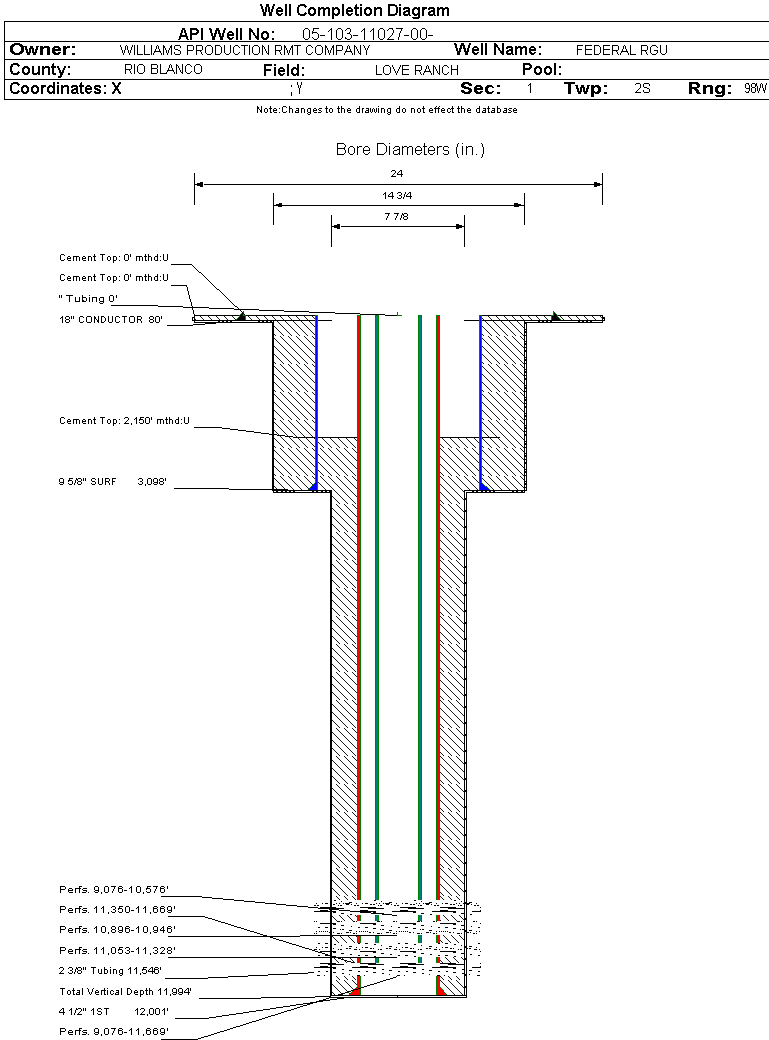

Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 80 ft., Weight: 48 , Citings Type: ACTUAL
Cement:Sacks: 135, Top: 0 ft., Bottom: 80 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 3098 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1435, Top: 0 ft., Bottom: 3098 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 12001 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1920, Top: 2150 ft., Bottom: 12001 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
MESAVERDE7020 ft.NN
CAMEO10293 ft.NN
ROLLINS10646 ft.NN
COZZETTE10792 ft.NN
CORCORAN11046 ft.NN
SEGO11346 ft.NN

Formation SEGO                     Formation Classification:  GW                     Status:  SI - 10/1/2025                 Interval Top: 11350 ft.    Interval Bottom: 11669 ft.

 Completed Information for Formation SEGO
1st Production Date:3/24/2008Choke Size:
Formation Name:SEGOCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/17/2008
Treatment Summary:1750 GALS 10% HCI ACID, 209100# 30/50 SB EXCEL SAND, 6252 BBLS SLICKWATER
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation SEGO.
Perforation Data:
Interval Top:11350 ft.# Of Holes:38
Interval Bottom:11669 ft.Hole Size:0.35 in.

Formation CRCRN                   Formation Classification:  GW                   Status:  SI - 10/1/2025                 Interval Top: 11053 ft.    Interval Bottom: 11328 ft.

 Completed Information for Formation CORCORAN
1st Production Date:3/24/2008Choke Size:
Formation Name:CORCORANCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/18/2008
Treatment Summary:1018 GALS 10% HCI ACID, 95214# 30/50 SAND, 3088 BBLS SLICKWATER
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CRCRN.
Perforation Data:
Interval Top:11053 ft.# Of Holes:22
Interval Bottom:11328 ft.Hole Size:0.35 in.

Formation COZZ                     Formation Classification:  GW                     Status:  SI - 10/1/2025                 Interval Top: 10896 ft.    Interval Bottom: 10946 ft.

 Completed Information for Formation COZZETTE
1st Production Date:3/24/2008Choke Size:
Formation Name:COZZETTECommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/18/2008
Treatment Summary:482 GALS 10% HCL ACID; 41786# 30/50 SB EXCEL SAND; 1409 BBLS SLICKWATER
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation COZZ.
Perforation Data:
Interval Top:10896 ft.# Of Holes:9
Interval Bottom:10946 ft.Hole Size:0.35 in.

Formation WFCM                     Formation Classification:  GW                     Status:  SI - 10/1/2025                 Interval Top: 9076 ft.    Interval Bottom: 10576 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:3/24/2008Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/22/2008
Treatment Summary:5000 GALS 10% HCL ACID; 520,600# 30/50 SAND; 17,500 BBLS SLICKWATER
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
Perforation Data:
Interval Top:9076 ft.# Of Holes:111
Interval Bottom:10576 ft.Hole Size:0.35 in.

Formation WFILS                   Formation Classification:  GW                   Status:  CM - 4/21/2008                 Interval Top: 9076 ft.    Interval Bottom: 11669 ft.

 Completed Information for Formation WILLIAMS FORK-ILES
1st Production Date:3/24/2008Choke Size:0.375 in.
Formation Name:WILLIAMS FORK-ILESCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/18/2008
Treatment Summary:8250 GALS 10% HCI ACID, 866700# 30/50 SAND, 28250 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:11546 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/21/2008Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1170
CALC_MCF_GAS 3200
CASING_PRESS 2600
MCF_GAS 3200
TUBING_PRESS 1900
Perforation Data:
Interval Top:9076 ft.# Of Holes:180
Interval Bottom:11669 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)107
Total Gas Produced (MCF)21043
GOR196663
GOR DeterminationMCFE
Average BOE per Day10.266
Average MCFE per Day59.553

 Federal Financial Assurance  i Y

 Tribal Well  i No
