Wellbore #00 Wellbore Classification: GW Status: PR - 5/1/2012 Measured TD: 13486 ft. Vertical TD: 13387 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/1/2012 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20075471 | Expiration Date: | 11/1/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 938 FSL 1380 FEL | | Bottom Hole Location: | Sec:20 Twp: 2S 96W | Footage: 938 FSL 1380 FEL | | Proposed Depth/Form: | 14000 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | PICEANCE CREEK | Unit Number: | COC 47666X | | Formation And Spacing: | Code: MVRD , Formation: MESAVERDE , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: OHCRK , Formation: OHIO CREEK , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WSTC , Formation: WASATCH , Order: , Unit Acreage: , Drill Unit: |
| | |

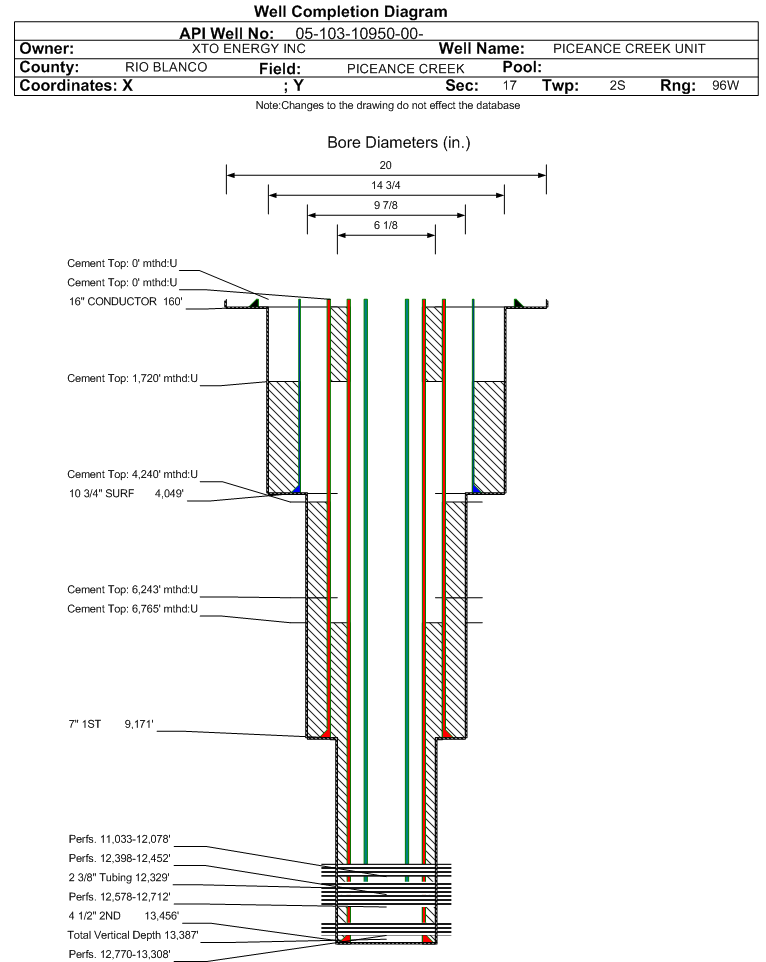

| Wellbore Completed | | Completion Date: | 5/12/2008 | | Spud Date: | 3/27/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 13486 ft. | Measured PB depth: | 13440 ft. | | True Vertical TD: | 13387 ft. | True Vertical PB depth: | 13341 ft. | | Top PZ Location: | Sec:17 Twp: 2S 96W | Footage: 932 FSL 1351 FEL | | Bottom Hole Location: | Sec:17 Twp: 2S 96W | Footage: 932 FSL 1351 FEL | | Log Types: | MUDLOGS, DRILLING MECHANICS, CEMENT EVAL, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 160 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 239, Top: 0 ft., Bottom: 160 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 10.75 in., Top: , Depth: 4049 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 738, Top: 1720 ft., Bottom: 4061 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 9.875 in., Size: 7 in., Top: , Depth: 9171 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 515, Top: 6243 ft., Bottom: 9216 ft., Determination Method: CALC | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 3500 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 754, Top: 4240 ft., Bottom: 6243 ft., Determination Method: CBL | | Casing: | String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: , Depth: 13456 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1300, Top: 6765 ft., Bottom: 13486 ft., Determination Method: CALC | | Casing: | String Type: S.C. 2.2, Hole Size: , Size: , Top: , Depth: 1720 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 734, Top: 0 ft., Bottom: 1720 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 5804 ft. | 7765 ft. | N | N | | OHIO CREEK | 7765 ft. | 7932 ft. | N | N | | WILLIAMS FORK - CAMEO | 7932 ft. | 12219 ft. | N | N | | ROLLINS | 12219 ft. | 12453 ft. | N | N | | COZZETTE | 12453 ft. | 12769 ft. | N | N | | CORCORAN | 12769 ft. | 13486 ft. | N | N |
Formation CRCRN Formation Classification: GW Status: PR - 6/1/2012 Interval Top: 12770 ft. Interval Bottom: 13308 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 9/27/2009 | Choke Size: | 0.250 in. | | Formation Name: | CORCORAN | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/10/2009 | | Treatment Summary: | FRAC W/353,00# NON-API PROPPANT. FRAC PLUG @ 13,080'. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 12329 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/27/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1058 | | CALC_BBLS_H2O | 46 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 411 | | CASING_PRESS | 4100 | | GRAVITY_OIL | 51 |
| | Perforation Data: | | Interval Top: | 12770 ft. | # Of Holes: | 144 | | Interval Bottom: | 13308 ft. | Hole Size: | 0.28 in. |
|
Formation COZZ Formation Classification: GW Status: PR - 6/1/2012 Interval Top: 12578 ft. Interval Bottom: 12712 ft.| Completed Information for Formation COZZETTE | | 1st Production Date: | 9/27/2009 | Choke Size: | 0.250 in. | | Formation Name: | COZZETTE | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/16/2009 | | Treatment Summary: | FRAC W/ 153,800# NON-API PROPPANT. FRAC PLUG @ 12,690'. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 12329 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/27/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1058 | | CALC_BBLS_H2O | 20 | | CALC_MCF_GAS | 181 | | CASING_PRESS | 4100 | | GRAVITY_OIL | 51 |
| | Perforation Data: | | Interval Top: | 12578 ft. | # Of Holes: | 48 | | Interval Bottom: | 12712 ft. | Hole Size: | 0.28 in. |
|
Formation RLNS Formation Classification: GW Status: PR - 6/1/2012 Interval Top: 12398 ft. Interval Bottom: 12452 ft.| Completed Information for Formation ROLLINS | | 1st Production Date: | 9/27/2009 | Choke Size: | 0.250 in. | | Formation Name: | ROLLINS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/18/2009 | | Treatment Summary: | FRAC W/ 64,200# NON-API PROPPANT. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 12329 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/27/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1058 | | CALC_BBLS_H2O | 15 | | CALC_MCF_GAS | 134 | | CASING_PRESS | 4100 | | GRAVITY_OIL | 51 |
| | Perforation Data: | | Interval Top: | 12398 ft. | # Of Holes: | 32 | | Interval Bottom: | 12452 ft. | Hole Size: | 0.28 in. |
|
Formation WFCM Formation Classification: GW Status: PR - 6/1/2012 Interval Top: 11033 ft. Interval Bottom: 12078 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 9/27/2009 | Choke Size: | 0.250 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/18/2009 | | Treatment Summary: | FRAC W/486,900# NON-API PROPPANT. FRAC PLUGS @ 11,250, 11464', 11,467', 11,476 & 12,040'. DO ALL PLUGS. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 12329 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/27/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1058 | | CALC_BBLS_H2O | 274 | | CALC_MCF_GAS | 2460 | | CASING_PRESS | 4100 | | GRAVITY_OIL | 51 |
| | Perforation Data: | | Interval Top: | 11033 ft. | # Of Holes: | 272 | | Interval Bottom: | 12078 ft. | Hole Size: | 0.28 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 44 |
| Total Gas Produced (MCF) | 22395 |
| GOR | 508977 |
| GOR Determination | MCFE |
| Average BOE per Day | 10.340 |
| Average MCFE per Day | 59.981 |
| Federal Financial Assurance | i | Y |
|
|
