Wellbore #00 Wellbore Classification: GW Status: PR - 8/1/2022 Measured TD: 12650 ft. Vertical TD: 12647 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/1/2022 | | Wellbore Permit | | | Permit #: | 20063053 | Expiration Date: | 8/17/2007 | | Proposed Depth/Form: | 12878 ft. | | Surface Mineral Owner Same: | Not available | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | BARCUS CREEK UN | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: SEGO , Formation: SEGO , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WSTC , Formation: WASATCH , Order: , Unit Acreage: , Drill Unit: |
| | |

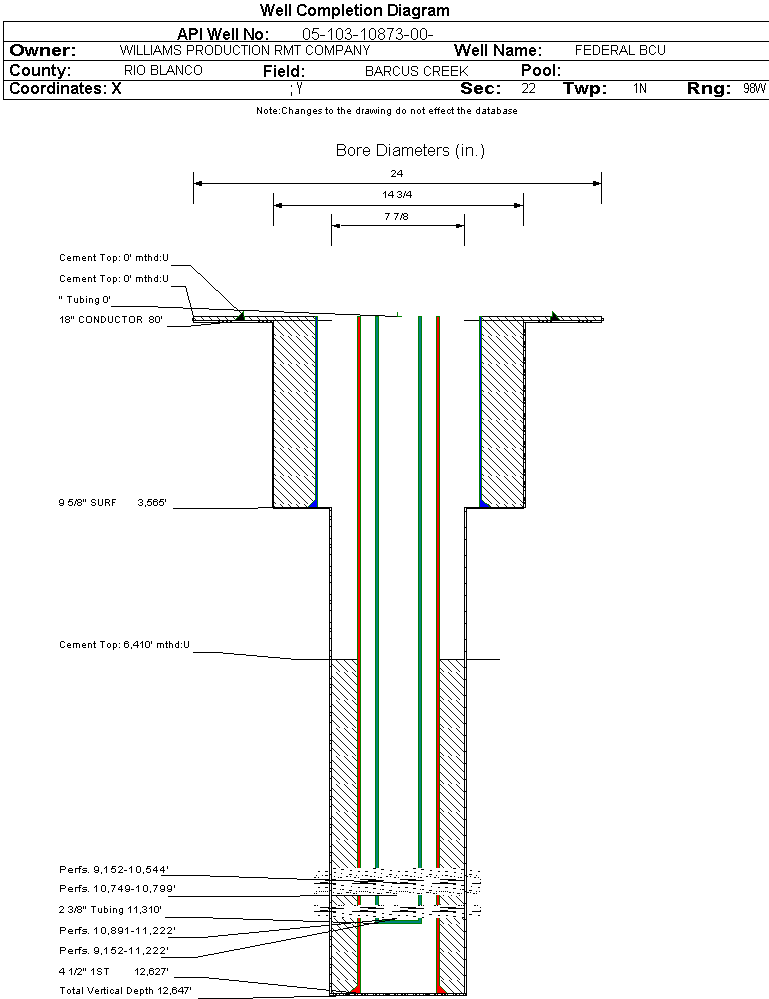

| Wellbore Completed | | Completion Date: | 5/14/2007 | | Spud Date: | 1/14/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 12650 ft. | Measured PB depth: | 12599 ft. | | True Vertical TD: | 12647 ft. | True Vertical PB depth: | 12596 ft. | | Log Types: | CBL, HIGH RESOULUTION INDUCTION/SPECTRAL DENSITY/DUAL SPACED NEUTRON,BOREHOLE COMPENSATED SONIC, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 135, Top: 0 ft., Bottom: 80 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 3565 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1910, Top: 0 ft., Bottom: 3565 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 12627 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 2230, Top: 6410 ft., Bottom: 12627 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FORT UNION | 5562 ft. | | N | N | | MESAVERDE | 7191 ft. | | N | N | | CAMEO | 10157 ft. | | N | N | | ROLLINS | 10561 ft. | | N | N | | COZZETTE | 10671 ft. | | N | N | | CORCORAN | 10857 ft. | | N | N |
Formation CRCRN Formation Classification: GW Status: PR - 8/1/2022 Interval Top: 10891 ft. Interval Bottom: 11222 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 9/15/2007 | Choke Size: | | | Formation Name: | CORCORAN | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/16/2007 | | Treatment Summary: | 922 GALS 7.5% HCL, 87996# 30/50 SAND, 3259 BBLS SLICKWATER |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CRCRN. |
| | Perforation Data: | | Interval Top: | 10891 ft. | # Of Holes: | 23 | | Interval Bottom: | 11222 ft. | Hole Size: | 0.35 in. |
|
Formation COZZ Formation Classification: GW Status: PR - 8/1/2022 Interval Top: 10749 ft. Interval Bottom: 10799 ft.| Completed Information for Formation COZZETTE | | 1st Production Date: | 9/15/2007 | Choke Size: | | | Formation Name: | COZZETTE | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/16/2007 | | Treatment Summary: | 328 GALS 7.5% HCI; 32982# 30/50 SAND; 1082 BBLS SLICKWATER |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation COZZ. |
| | Perforation Data: | | Interval Top: | 10749 ft. | # Of Holes: | 7 | | Interval Bottom: | 10799 ft. | Hole Size: | 0.35 in. |
|
Formation WFCM Formation Classification: GW Status: PR - 8/1/2022 Interval Top: 9152 ft. Interval Bottom: 10544 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 9/15/2007 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/13/2007 | | Treatment Summary: | 3806 GALS 7.5% HCL, 374402# 30/50 SAND, 10882 BBLS SLICKWATER, 208 TONS CO2. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WFCM. |
| | Perforation Data: | | Interval Top: | 9152 ft. | # Of Holes: | 93 | | Interval Bottom: | 10544 ft. | Hole Size: | 0.35 in. |
|
Formation WFILS Formation Classification: GW Status: CM - 10/11/2007 Interval Top: 9152 ft. Interval Bottom: 11222 ft.| Completed Information for Formation WILLIAMS FORK-ILES | | 1st Production Date: | 9/15/2007 | Choke Size: | 0.750 in. | | Formation Name: | WILLIAMS FORK-ILES | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/16/2007 | | Treatment Summary: | 5056 GALS 7.5% HCL, 495,380# 30/50 SAND, 15223 BBLS SLICKWATER, 208 TONS CO2. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 11310 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/11/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1170 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 3835 | | CASING_PRESS | 1850 | | TUBING_PRESS | 1000 |
| | Perforation Data: | | Interval Top: | 9152 ft. | # Of Holes: | 123 | | Interval Bottom: | 11222 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 294 |
| Total Gas Produced (MCF) | 14702 |
| GOR | 50006 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.754 |
| Average MCFE per Day | 44.958 |
| Federal Financial Assurance | i | Y |
|
|
