COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-103-10815		Well Classification: GW Status: PR - 6/1/2017
Well Name/No:PICEANCE CREEK UNIT #297-15A7
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COD052141
Facility Status:PRStatus Date6/1/2017
FacilityID:285545LocationID:335895
County:RIO BLANCO #103Location:NENW 15 2S97W 6
Field:PICEANCE CREEK - #68800Elevation:6622 ft.
Basin:PICEANCE BASIN
Planned Location:1152FNL  1705 FWLLat/Long: 39.880858 / -108.271336Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.880857 / -108.271336Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/1/2017             Measured TD: 12273 ft.    Vertical TD: 12215 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/1/2017
Wellbore PermitDIRECTIONAL
Permit #:20083203 Expiration Date:6/16/2009
Proposed Top PZ Location:Sec: Twp: Footage: 1575 FNL  1418 FWL
Bottom Hole Location:Sec:15 Twp: 2S 97W Footage: 1575 FNL  1418 FWL
Proposed Depth/Form:14000 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit:PICEANCE CREEK Unit Number:COC47666X
Formation And Spacing:Code: MVRD , Formation: MESAVERDE , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: OHCRK , Formation: OHIO CREEK , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:3/14/2009
Spud Date:10/17/2008Spud Date Is:ACTUAL
Measured TD:12273 ft.Measured PB depth:12171 ft.
True Vertical TD:12215 ft.True Vertical PB depth:12113 ft.
Top PZ Location:Sec:15 Twp: 2S 97WFootage: 1546 FNL  1418 FWL
Bottom Hole Location:Sec:15 Twp: 2S 97WFootage: 1546 FNL  1418 FWL
Log Types:
Log Types:RPM, RA BOND LOG, MUD LOGS, DIRECTIONAL SURVEY
Log Types:
Log Types:RPM, RA BOND LOG, GASVIEW, IMAGING BEHIND CASING ULTRASONIC TOOL, MUD LOGS, DIRECTIONAL SURVEY

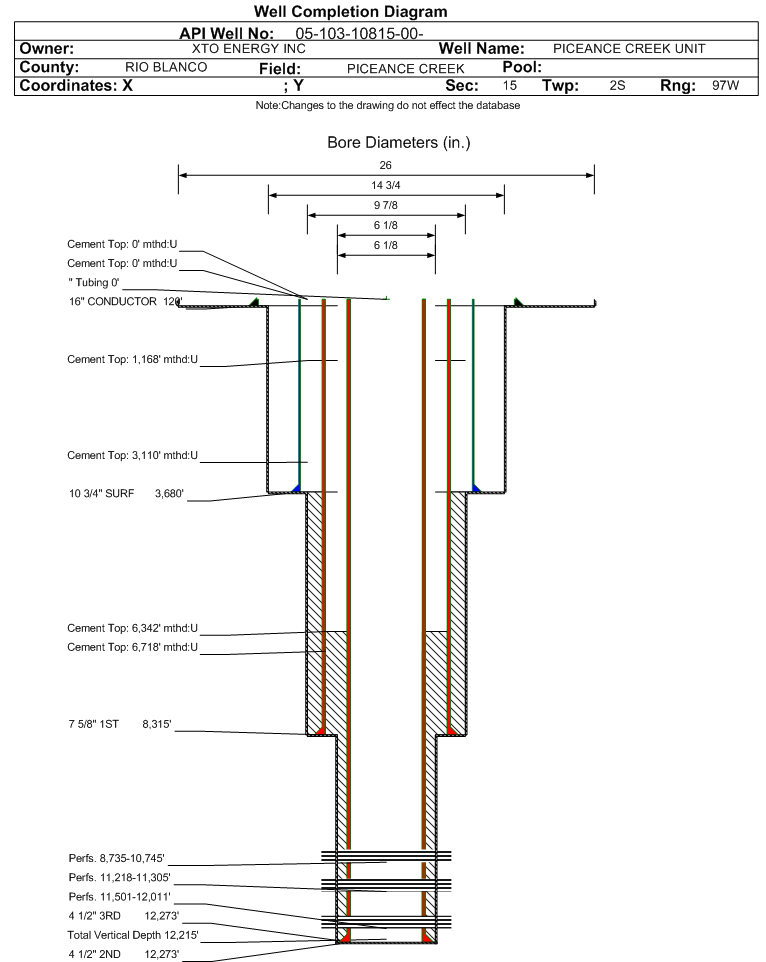

Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 120 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 96, Top: 0 ft., Bottom: 120 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 10.75 in., Top: 0 ft., Depth: 3680 ft., Weight: 45,5 , Citings Type: ACTUAL
Cement:Sacks: 1110, Top: 1168 ft., Bottom: 3680 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 9.875 in., Size: 7.625 in., Top: 0 ft., Depth: 8315 ft., Weight: 29.7 , Citings Type: ACTUAL
Cement:Sacks: 11030, Top: 3110 ft., Bottom: 8315 ft., Determination Method: CALC
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 1168 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 618, Top: 0 ft., Bottom: 1168 ft., Determination Method:
Casing:String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 12273 ft., Weight: 15.1 , Citings Type: ACTUAL
Cement:Sacks: 930, Top: 6718 ft., Bottom: 12273 ft., Determination Method: CBL
Casing:String Type: 3RD, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 12273 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 930, Top: 6342 ft., Bottom: 12273 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH G5180 ft.6912 ft.NN
OHIO CREEK6912 ft.6972 ft.NN
WILLIAMS FORK - CAMEO6972 ft.10913 ft.NN
ROLLINS10913 ft.11061 ft.NN
COZZETTE11061 ft.11487 ft.NN
CORCORAN11487 ft.12100 ft.NN

Formation CRCRN                   Formation Classification:  GW                   Status:  PR - 6/1/2017                  Interval Top: 11501 ft.    Interval Bottom: 12011 ft.

 Completed Information for Formation CORCORAN
1st Production Date:5/1/2011Choke Size:
Formation Name:CORCORANCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/26/2009
Treatment Summary:Frac'd w/ 59,600# 100 mesh & 295,200# 40/70.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/2/2011Test Method:Flowing
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1041
CALC_BBLS_H2O 67
CALC_MCF_GAS 358
CASING_PRESS 2604
Perforation Data:
Interval Top:11501 ft.# Of Holes:64
Interval Bottom:12011 ft.Hole Size:0.32 in.

Formation COZZ                     Formation Classification:  GW                     Status:  PR - 6/1/2017                  Interval Top: 11218 ft.    Interval Bottom: 11305 ft.

 Completed Information for Formation COZZETTE
1st Production Date:5/1/2011Choke Size:
Formation Name:COZZETTECommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/26/2009
Treatment Summary:Frac'd w/ 33,400# 40/70 & 6,600# 100 mesh.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/2/2011Test Method:Flowing
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1041
CALC_BBLS_H2O 47
CALC_MCF_GAS 249
CASING_PRESS 2604
Perforation Data:
Interval Top:11218 ft.# Of Holes:16
Interval Bottom:11305 ft.Hole Size:0.32 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 6/1/2017                  Interval Top: 8735 ft.    Interval Bottom: 10745 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/26/2009
Treatment Summary:FRAC W/ 996300# PROPPANT (822900# 40/70 & 173400# 100 MESH). FRAC PLUGS @ 10735; 10065; 9524; 9429 & 9206. DO PLUGS @9206 & 9429.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/1/2011Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 432
BTU_GAS 1041
CASING_PRESS 2604
MCF_GAS 2304
Perforation Data:
Interval Top:8735 ft.# Of Holes:240
Interval Bottom:10745 ft.Hole Size:0.32 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)34558
GOR
GOR DeterminationMCFE
Average BOE per Day16.335
Average MCFE per Day94.733

 Federal Financial Assurance  i Y

 Tribal Well  i No
