Wellbore #00 Wellbore Classification: GW Status: PR - 2/1/2016 Measured TD: 12725 ft. Vertical TD: 12538 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/1/2016 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20083202 | Expiration Date: | 6/16/2009 | | Proposed Top PZ Location: | Sec:15 Twp: 2S 97W | Footage: 2295 FNL 2001 FWL | | Bottom Hole Location: | Sec:15 Twp: 2S 97W | Footage: 2295 FNL 2001 FWL | | Proposed Depth/Form: | 14000 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | PICEANCE CREEK | Unit Number: | COC47666X | | Formation And Spacing: | Code: MVRD , Formation: MESAVERDE , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: OHCRK , Formation: OHIO CREEK , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WSTC , Formation: WASATCH , Order: , Unit Acreage: , Drill Unit: |
| | |

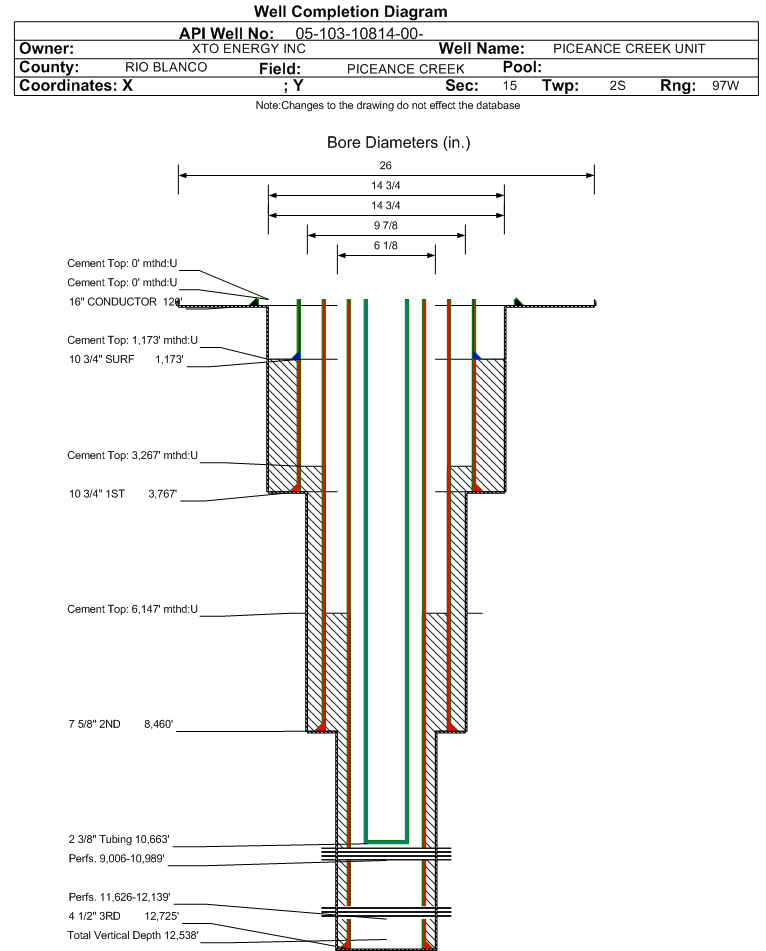

| Wellbore Completed | | Completion Date: | 3/3/2009 | | Spud Date: | 10/25/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 12725 ft. | Measured PB depth: | 12622 ft. | | True Vertical TD: | 12538 ft. | True Vertical PB depth: | 12438 ft. | | Top PZ Location: | Sec:15 Twp: 2S 97W | Footage: 2295 FNL 2001 FWL | | Bottom Hole Location: | Sec:15 Twp: 2S 97W | Footage: 2295 FNL 2001 FWL | | Log Types: | | | Log Types: | | | Log Types: | ?? | | Log Types: | DIRECTIONAL SUR., MUD LOGS, COMPACT WELL SHUTTLE - COMP. PHOTO DENSITY - ARRAY INDUCTION - HOLE VOLUME - COMP. SONIC, GASVIEW, IMAGING BEHIND CASING ULTRASONIC TOOL, RADICAL ANALYSIS BOND | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 120 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 96, Top: 0 ft., Bottom: 120 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 10.75 in., Top: 0 ft., Depth: 3767 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1160, Top: 1173 ft., Bottom: 3767 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 9.875 in., Size: 7.625 in., Top: 0 ft., Depth: 8460 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1040, Top: 3267 ft., Bottom: 8460 ft., Determination Method: | | Casing: | String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 12725 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 950, Top: 6147 ft., Bottom: 12725 ft., Determination Method: CBL | | Casing: | String Type: STAGE TOOL, Hole Size: 14.75 in., Size: 10.75 in., Top: 0 ft., Depth: 1173 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 830, Top: 0 ft., Bottom: 1173 ft., Determination Method: VISU | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 5286 ft. | 7038 ft. | N | N | | OHIO CREEK | 7038 ft. | 7097 ft. | N | N | | WILLIAMS FORK - CAMEO | 7097 ft. | 11049 ft. | N | N | | ROLLINS | 11049 ft. | 11198 ft. | N | N | | COZZETTE | 11198 ft. | 11604 ft. | N | N | | CORCORAN | 11604 ft. | 12350 ft. | N | N |
Formation CRCRN Formation Classification: GW Status: PR - 2/1/2016 Interval Top: 11626 ft. Interval Bottom: 12139 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 9/11/2009 | Choke Size: | 0.281 in. | | Formation Name: | CORCORAN | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/26/2009 | | Treatment Summary: | FRAC W/307,700# PROPPANT (56,700# 100 MESH & 201,000# 40/70). |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 10663 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/24/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1040 | | CALC_BBLS_H2O | 415 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 276 | | CASING_PRESS | 2156 | | GRAVITY_OIL | 54 |
| | Perforation Data: | | Interval Top: | 11626 ft. | # Of Holes: | 112 | | Interval Bottom: | 12139 ft. | Hole Size: | 0.32 in. |
|
Formation WFCM Formation Classification: GW Status: PR - 2/1/2016 Interval Top: 9006 ft. Interval Bottom: 10989 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 9/11/2009 | Choke Size: | 0.281 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/26/2009 | | Treatment Summary: | FRAC W/865,000# PROPPANT(720,800# 40/70 & 144,200# 100 MESH). FRAC PLUGS @ 10,976; 10,930'; 10,310'; 9,944' & 9,085'. DO ALL PLUGS. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 10663 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/24/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1040 | | CALC_BBLS_H2O | 2198 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 1460 | | CASING_PRESS | 21566 | | GRAVITY_OIL | 54 |
| | Perforation Data: | | Interval Top: | 9006 ft. | # Of Holes: | 448 | | Interval Bottom: | 10989 ft. | Hole Size: | 0.32 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 31419 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 14.856 |
| Average MCFE per Day | 86.135 |
| Federal Financial Assurance | i | Y |
|
|
