COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-103-10811		Well Classification: GW Status: PR - 7/17/2009
Well Name/No:PICEANCE CREEK UNIT #297-15A3
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COD052141
Facility Status:PRStatus Date7/17/2009
FacilityID:285541LocationID:335895
County:RIO BLANCO #103Location:NENW 15 2S97W 6
Field:PICEANCE CREEK - #68800Elevation:6622 ft.
Basin:PICEANCE BASIN
Planned Location:1138FNL  1725 FWLLat/Long: 39.880897 / -108.271261Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.880894 / -108.271265Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/17/2009             Measured TD: 12450 ft.    Vertical TD: 12301 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/17/2009
Wellbore PermitDIRECTIONAL
Permit #:20083199 Expiration Date:6/16/2009
Proposed Top PZ Location:Sec:15 Twp: 2S 97W Footage: 610 FNL  2510 FEL
Bottom Hole Location:Sec:15 Twp: 2S 97W Footage: 610 FNL  2510 FEL
Proposed Depth/Form:14000 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit:PICEANCE CREEK Unit Number:COC47666X
Formation And Spacing:Code: MVRD , Formation: MESAVERDE , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: OHCRK , Formation: OHIO CREEK , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:2/16/2009
Spud Date:7/29/2008Spud Date Is:ACTUAL
Measured TD:12450 ft.Measured PB depth:12468 ft.
True Vertical TD:12301 ft.True Vertical PB depth:12240 ft.
Top PZ Location:Sec:15 Twp: 2S 97WFootage: 610 FNL  2510 FEL
Bottom Hole Location:Sec:15 Twp: 2S 97WFootage: 610 FNL  2510 FEL
Log Types:MUD LOGS, DIRECTIONAL SURVEY, BOND LOG, RPM
Log Types:
Log Types:
Log Types:MUD LOGS, DIR. SURV.,GASVIEW, RA BOND LOGS,RPM,IMAGING BEHIND CASING - ULTRASONIC TOOL

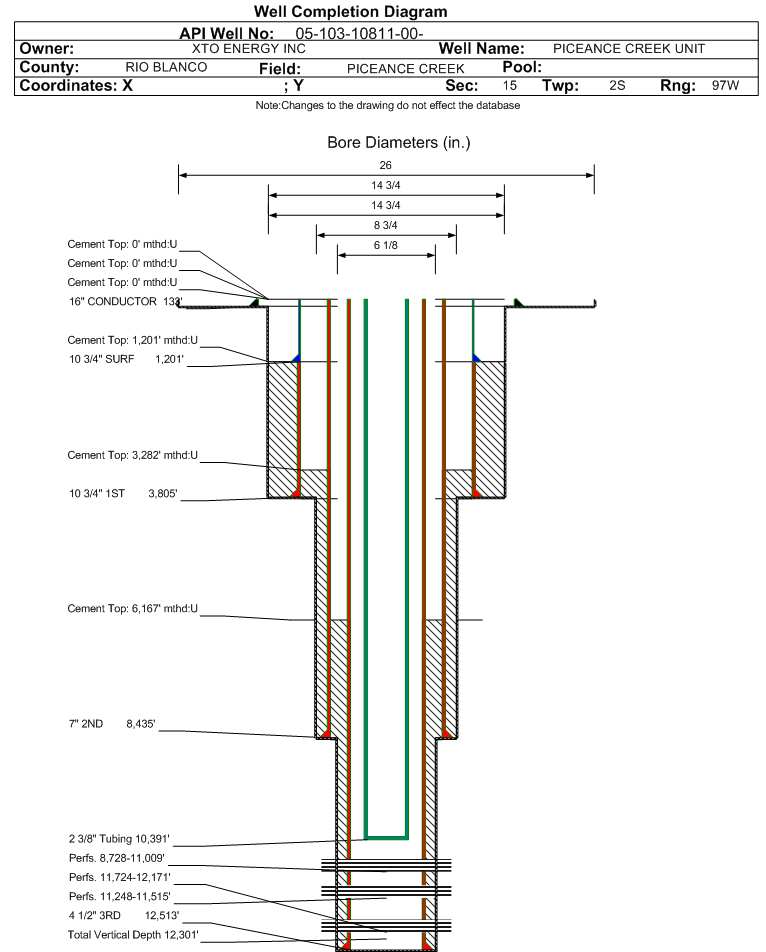

Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 133 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 220, Top: 0 ft., Bottom: 133 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 10.75 in., Top: 0 ft., Depth: 3582 ft., Weight: 45.5 , Citings Type: ACTUAL
Cement:Sacks: 1160, Top: 1201 ft., Bottom: 3582 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 8304 ft., Weight: 26 , Citings Type: ACTUAL
Cement:Sacks: 714, Top: 3282 ft., Bottom: 8304 ft., Determination Method: CALC
Casing:String Type: S.C. 1.2, Hole Size: , Size: 7 in., Top: , Depth: 5898 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 780, Top: 3000 ft., Bottom: 5898 ft., Determination Method:
Casing:String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 12513 ft., Weight: 15 , Citings Type: ACTUAL
Cement:Sacks: 895, Top: 6167 ft., Bottom: 12530 ft., Determination Method: CBL
Casing:String Type: STAGE TOOL, Hole Size: 14.75 in., Size: 10.75 in., Top: 0 ft., Depth: 1201 ft., Weight: 45.5 , Citings Type: ACTUAL
Cement:Sacks: 720, Top: 0 ft., Bottom: 1201 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH G5321 ft.7034 ft.NN
OHIO CREEK7034 ft.7083 ft.NN
WILLIAMS FORK - CAMEO7083 ft.11064 ft.NN
ROLLINS11064 ft.11209 ft.NN
COZZETTE11209 ft.11521 ft.NN
CORCORAN11521 ft.12523 ft.NN

Formation CRCRN                   Formation Classification:  GW                   Status:  PR - 7/17/2009                 Interval Top: 11724 ft.    Interval Bottom: 12171 ft.

 Completed Information for Formation CORCORAN
1st Production Date:9/16/2009Choke Size:
Formation Name:CORCORANCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/9/2009
Treatment Summary:FRAC W/180,300# PROPPANT (150,200# 40/70 & 30,100# 100 MESH).
Tubing Size:2.375 in.Tubing Setting Depth:10391 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
CALC_BBLS_H2O 42
CALC_BBLS_OIL 0
CALC_MCF_GAS 373
CASING_PRESS 710
Perforation Data:
Interval Top:11724 ft.# Of Holes:40
Interval Bottom:12171 ft.Hole Size:0.32 in.

Formation COZZ                     Formation Classification:  GW                     Status:  PR - 2/21/2010                 Interval Top: 11248 ft.    Interval Bottom: 11515 ft.

 Completed Information for Formation COZZETTE
1st Production Date:9/16/2009Choke Size:0.750 in.
Formation Name:COZZETTECommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/9/2009
Treatment Summary:FRAC W/ 188,900# PROPPANT(157,300# 40/70 & 31,600# MESH). FRAC PLUG AT 11,030FT
Tubing Size:2.375 in.Tubing Setting Depth:10391 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/21/2010Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 13
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 116
CASING_PRESS 710
Perforation Data:
Interval Top:11248 ft.# Of Holes:208
Interval Bottom:11515 ft.Hole Size:0.32 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 2/21/2010                 Interval Top: 8728 ft.    Interval Bottom: 11009 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:9/16/2009Choke Size:0.750 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/11/2009
Treatment Summary:FRAC W/ 847,700# PROPPANT(706900# 40/70 & 140,800# 100 MESH). FRAC PLUG @ 10085. DO ALL FRAC PLUGS
Tubing Size:2.375 in.Tubing Setting Depth:10391 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/21/2010Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 166
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 1483
CASING_PRESS 710
Perforation Data:
Interval Top:8728 ft.# Of Holes:208
Interval Bottom:11009 ft.Hole Size:0.32 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)21489
GOR
GOR DeterminationMCFE
Average BOE per Day10.159
Average MCFE per Day58.921

 Federal Financial Assurance  i Y

 Tribal Well  i No
