COGIS

Facility Detail

COGIS - WELL SCOUT CARD

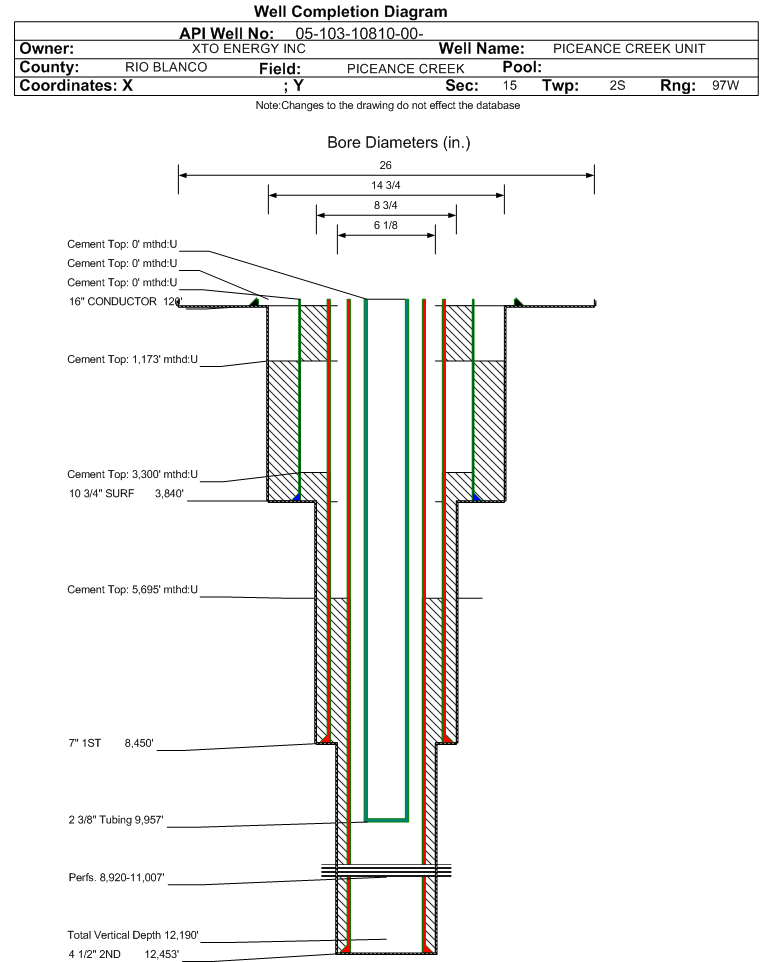

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-103-10810		Well Classification: GW Status: SI - 6/1/2025
Well Name/No:PICEANCE CREEK UNIT #297-15A2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COD035679
Facility Status:SIStatus Date6/1/2025
FacilityID:285540LocationID:335895
County:RIO BLANCO #103Location:NENW 15 2S97W 6
Field:PICEANCE CREEK - #68800Elevation:6622 ft.
Basin:PICEANCE BASIN
Planned Location:1125FNL  1732 FWLLat/Long: 39.880931 / -108.271236Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.880931 / -108.271236Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 6/1/2025             Measured TD: 12468 ft.    Vertical TD: 12190 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 6/1/2025
Wellbore PermitDIRECTIONAL
Permit #:20083198 Expiration Date:6/16/2009
Proposed Top PZ Location:Sec:10 Twp: 2S 97W Footage: 186 FSL  2420 FWL
Bottom Hole Location:Sec:10 Twp: 2S 97W Footage: 186 FSL  2420 FWL
Proposed Depth/Form:14000 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit:PICEANCE CREEK Unit Number:COC47666X
Formation And Spacing:Code: MVRD , Formation: MESAVERDE , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: OHCRK , Formation: OHIO CREEK , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:4/20/2009
Spud Date:8/6/2008Spud Date Is:ACTUAL
Measured TD:12468 ft.Measured PB depth:12366 ft.
True Vertical TD:12190 ft.True Vertical PB depth:12087 ft.
Top PZ Location:Sec:10 Twp: 2S 97WFootage: 186 FSL  2420 FWL
Bottom Hole Location:Sec:10 Twp: 2S 97WFootage: 186 FSL  2420 FWL
Log Types:
Log Types:MUD-5, AIL, HOLE VOL, DEN, GASVIEW, SONIC, RPM, MSS, RA BOND, DRILL MECH, IMAGING
Log Types:
Log Types:MUD LOGS, DIRECTIONAL, COMPACT WELL SHUTTLE ARRAY INDUCT. - HOLE VOLUME - COMP. PHOTO DENSITY, GASVIEW, DENSITY - COMP. SONIC, MSS MONOPOLE SEMBLANCE, RMP, RA BOND LOG, PERFORM DRILLING MECHANICS, IMAGING BEHIND CASING ULTRASONIC
Casing:String Type: CONDUCTOR, Hole Size: , Size: , Top: 0 ft., Depth: 118 ft., Weight: 60 , Citings Type: ACTUAL
Cement:Sacks: 96, Top: 0 ft., Bottom: 118 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 10.75 in., Top: 0 ft., Depth: 3828 ft., Weight: 45.5 , Citings Type: ACTUAL
Cement:Sacks: 1190, Top: 1173 ft., Bottom: 3828 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: , Top: 0 ft., Depth: 8437 ft., Weight: 26 , Citings Type: ACTUAL
Cement:Sacks: 760, Top: 3287 ft., Bottom: 8437 ft., Determination Method: CALC
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 1173 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 840, Top: 0 ft., Bottom: 1173 ft., Determination Method: CALC
Casing:String Type: 2ND, Hole Size: 6.25 in., Size: 4.5 in., Top: 0 ft., Depth: 12440 ft., Weight: 15.1 , Citings Type: ACTUAL
Cement:Sacks: 895, Top: 5683 ft., Bottom: 12440 ft., Determination Method: CBL
Casing:String Type: 3RD, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method: CALC
Casing:String Type: STAGE TOOL, Hole Size: , Size: 10.75 in., Top: , Depth: 1173 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 840, Top: 0 ft., Bottom: 1173 ft., Determination Method: VISU
FormationInterval TopLog BottomCoredDSTs
WASATCH G5397 ft.7097 ft.NN
OHIO CREEK7097 ft.7170 ft.NN
WILLIAMS FORK - CAMEO7170 ft.11135 ft.NN
ROLLINS11135 ft.11282 ft.NN
COZZETTE11282 ft.11601 ft.NN
CORCORAN11601 ft.12468 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  SI - 6/1/2025                  Interval Top: 8920 ft.    Interval Bottom: 11007 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:9/20/2009Choke Size:0.250 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/16/2009
Treatment Summary:FRAC WITH 1040500# PROPPANT (188800# 100 MESH AND 851700# 40/70). FRAC PLUGS @ 10777, 10495 AND 9660. DO ALL PLUGS.
Tubing Size:2.375 in.Tubing Setting Depth:9957 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/5/2009Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1047
CALC_BBLS_H2O 2787
CALC_MCF_GAS 2771
CASING_PRESS 2738
GRAVITY_OIL 52
Perforation Data:
Interval Top:8920 ft.# Of Holes:416
Interval Bottom:11007 ft.Hole Size:0.32 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)17957
GOR
GOR DeterminationMCFE
Average BOE per Day8.517
Average MCFE per Day49.401

 Federal Financial Assurance  i Y

 Tribal Well  i No
