Wellbore #00 Wellbore Classification: GW Status: PR - 1/1/2021 Measured TD: 9953 ft. Vertical TD: 9953 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 1/1/2021 | | Wellbore Permit | | | Permit #: | 20052370 | Expiration Date: | 8/7/2006 | | Proposed Depth/Form: | 9000 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: MVRD , Formation: MESAVERDE , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WSTC , Formation: WASATCH , Order: , Unit Acreage: , Drill Unit: |
| | |

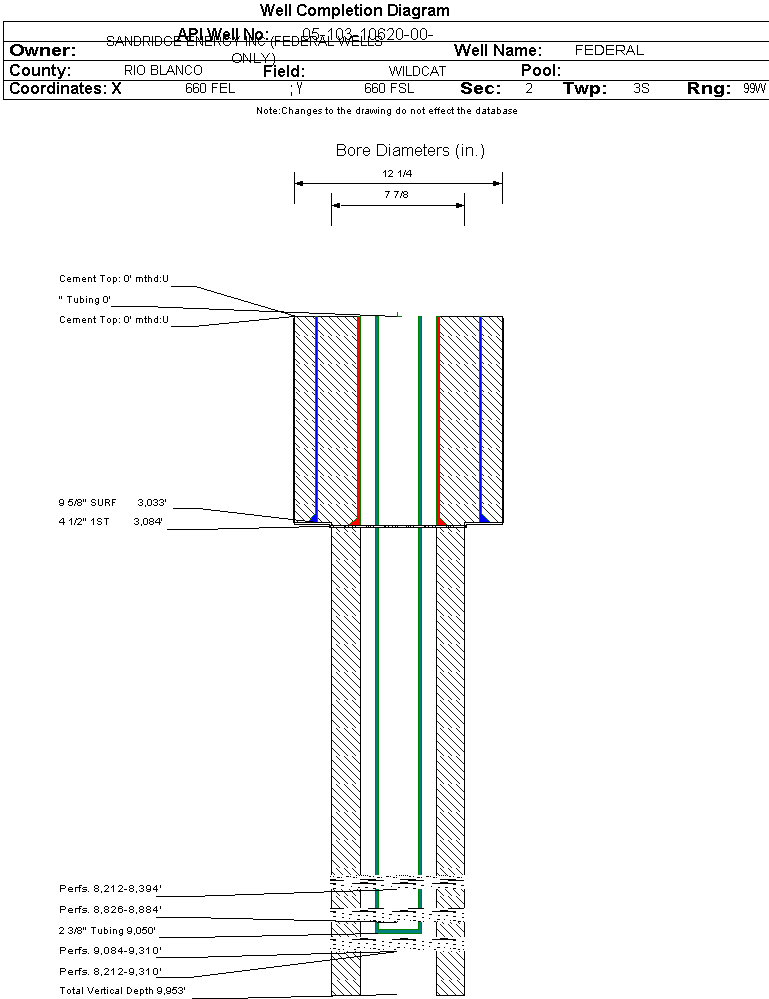

| Wellbore Completed | | Completion Date: | 7/1/2006 | | Spud Date: | 5/28/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 9953 ft. | Measured PB depth: | | | True Vertical TD: | 9953 ft. | True Vertical PB depth: | | | Log Types: | ULTRA SONIC IMAGER, ULTRA SONIC IMAGER/COLLARS/GAMMA RAY, PLEX-AI/GR, PLEX-CALIPER PRINT/GR, PLEX-POROSITY/DENSITY/GR | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 3033 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 795, Top: 0 ft., Bottom: 3033 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 3084 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 890, Top: 0 ft., Bottom: 9961 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 3022 ft. | | N | N | | OHIO CREEK | 5414 ft. | | N | N | | WILLIAMS FORK | 5616 ft. | | N | N | | CAMEO | 7923 ft. | | N | N | | ILES | 8459 ft. | | N | N | | LOYD SS | 9624 ft. | | N | N |
Formation SEGO Formation Classification: GW Status: PR - 1/1/2021 Interval Top: 9084 ft. Interval Bottom: 9310 ft.| Completed Information for Formation SEGO | | 1st Production Date: | 3/28/2007 | Choke Size: | | | Formation Name: | SEGO | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/19/2007 | | Treatment Summary: | FRAC'D WITH 18 BBLS NEFE HCL, 1708 BBLS SLICKWATER 50Q CO2 WITH 186,790# 20/40 PR6000 SAND FLUSHED WITH 140 BBLS SLICKWATER WITH 4% KCL |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation SEGO. |
| | Perforation Data: | | Interval Top: | 9084 ft. | # Of Holes: | 33 | | Interval Bottom: | 9310 ft. | Hole Size: | 0.4 in. |
|
Formation CRCRN Formation Classification: GW Status: PR - 1/1/2021 Interval Top: 8826 ft. Interval Bottom: 8884 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 3/28/2007 | Choke Size: | | | Formation Name: | CORCORAN | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/19/2007 | | Treatment Summary: | FRAC'D WITH 55 BBLS SLICKWATER PAD, 100 BBLS SLICKWATER 50Q CO2, 135 BBLS SLICKWATER FLUSH |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CRCRN. |
| | Perforation Data: | | Interval Top: | 8826 ft. | # Of Holes: | 18 | | Interval Bottom: | 8884 ft. | Hole Size: | 0.4 in. |
|
Formation CMEO Formation Classification: GW Status: PR - 1/1/2021 Interval Top: 8212 ft. Interval Bottom: 8394 ft.| Completed Information for Formation CAMEO | | 1st Production Date: | 3/28/2007 | Choke Size: | | | Formation Name: | CAMEO | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/20/2007 | | Treatment Summary: | FRAC'D WITH 18 BBLS NEFE HCL, 1233 BBLS SLICKWATER 50Q CO2 WITH 126,700# 20/40 PR6000 SAND FLUSHED WITH 101 BBLS SLICKWATER WITH 4% KCL |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CMEO. |
| | Perforation Data: | | Interval Top: | 8212 ft. | # Of Holes: | 30 | | Interval Bottom: | 8394 ft. | Hole Size: | 0.4 in. |
|
Formation WFILS Formation Classification: GW Status: CM - 4/11/2007 Interval Top: 8212 ft. Interval Bottom: 9310 ft.| Completed Information for Formation WILLIAMS FORK-ILES | | 1st Production Date: | 3/28/2007 | Choke Size: | 0.313 in. | | Formation Name: | WILLIAMS FORK-ILES | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/19/2007 | | Treatment Summary: | |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9050 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/11/2007 | Test Method: | FLOW TO TANK | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 184 | | BTU_GAS | 1135 | | CALC_BBLS_H2O | 184 | | CALC_MCF_GAS | 1100 | | CASING_PRESS | 1750 | | GRAVITY_OIL | 42 | | MCF_GAS | 1100 | | TUBING_PRESS | 1000 |
| | Perforation Data: | | Interval Top: | 8212 ft. | # Of Holes: | 81 | | Interval Bottom: | 9310 ft. | Hole Size: | 0.4 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 15 |
| Total Gas Produced (MCF) | 8136 |
| GOR | 542400 |
| GOR Determination | MCFE |
| Average BOE per Day | 3.882 |
| Average MCFE per Day | 22.550 |
| Federal Financial Assurance | i | Y |
|
|
