Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Old GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-103-10609		Well Classification: GW	Status: SI - 10/1/2025
Well Name/No:	FEDERAL RGU #44-1-298 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	COC 62053
Facility Status:	SI	Status Date	10/1/2025
FacilityID:	278632	LocationID:	335640
County:	RIO BLANCO #103	Location:	SESE 1 2S98W 6
Field:	SULPHUR CREEK - #80090	Elevation:	6282 ft.
Basin:	PICEANCE BASIN
Planned Location:	784FSL 775 FEL	Lat/Long: 39.900421 / -108.336167	Lat/Long Source: Calculated From Footages
As Drilled Location:	Footages Not Available	Lat/Long: 39.901001 / -108.336162	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: SI - 10/1/2025 Measured TD: 11725 ft. Vertical TD: 11719 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW SI - 10/1/2025
Wellbore Permit
Permit #:	20062287	Expiration Date:	7/11/2007
Proposed Top PZ Location:	Sec:1 Twp: 2S 98W	Footage: 669 FSL 760 FEL
Bottom Hole Location:	Sec:1 Twp: 2S 98W	Footage: 669 FSL 760 FEL
Proposed Depth/Form:	11680 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEDERAL	Surface Owner:	FEDERAL
Unit:	RYAN GULCH UNIT	Unit Number:	COC 68239X
Formation And Spacing:	Code: SEGO , Formation: SEGO , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:

Wellbore Completed
Completion Date:	6/23/2006
Spud Date:	5/15/2006	Spud Date Is:	ACTUAL
Measured TD:	11725 ft.	Measured PB depth:	11630 ft.
True Vertical TD:	11719 ft.	True Vertical PB depth:
Top PZ Location:	Sec:1 Twp: 2S 98W	Footage: 669 FSL 760 FEL
Bottom Hole Location:	Sec:1 Twp: 2S 98W	Footage: 669 FSL 760 FEL
Log Types:	CBL; HIGH RESOLUTION INDUCTION/SPECTRAL DENSITY/DUAL SPACED NEUTRON

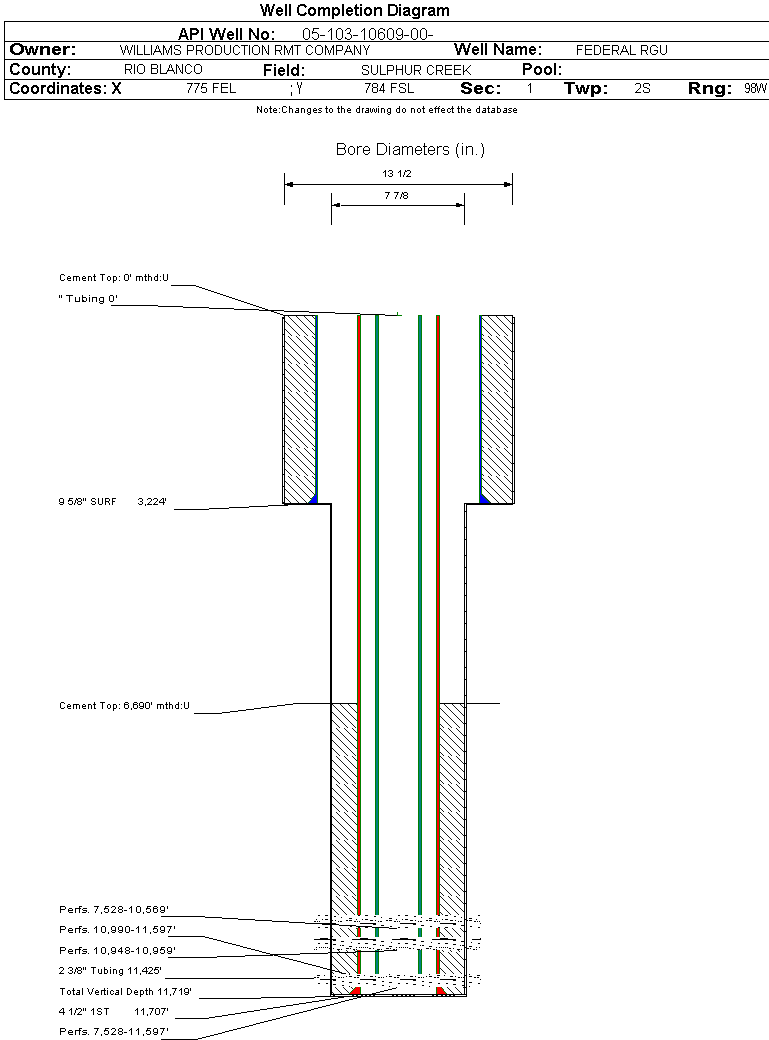

Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 3224 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 1712, Top: 0 ft., Bottom: 3224 ft., Determination Method:
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 11707 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 2450, Top: 6690 ft., Bottom: 11707 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
WASATCH G	4950 ft.		N	N
FORT UNION	5270 ft.		N	N
MESAVERDE	6996 ft.		N	N
CAMEO	10142 ft.		N	N
ROLLINS	10591 ft.		N	N
COZZETTE	10739 ft.		N	N
CORCORAN	10948 ft.		N	N
SEGO	11306 ft.		N	N

Formation SEGO Formation Classification: GW Status: SI - 10/1/2025 Interval Top: 10990 ft. Interval Bottom: 11597 ft.

Completed Information for Formation SEGO

1st Production Date:	7/25/2006	Choke Size:
Formation Name:	SEGO	Commingled:	Yes
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	7/17/2006
Treatment Summary:	185714 # 30/50 SAND; 4635 BBLS SLICKWATER

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation SEGO.

Perforation Data:
Interval Top:	10990 ft.	# Of Holes:	96
Interval Bottom:	11597 ft.	Hole Size:	0.35 in.

Formation CRCRN Formation Classification: GW Status: SI - 10/1/2025 Interval Top: 10948 ft. Interval Bottom: 10959 ft.

Completed Information for Formation CORCORAN

1st Production Date:	7/25/2006	Choke Size:
Formation Name:	CORCORAN	Commingled:	Yes
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	7/17/2006
Treatment Summary:	9791 # 30/50 SAND; 301 BBLS SLICKWATER

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation CRCRN.

Perforation Data:
Interval Top:	10948 ft.	# Of Holes:	12
Interval Bottom:	10959 ft.	Hole Size:	0.35 in.

Formation WFCM Formation Classification: GW Status: SI - 10/1/2025 Interval Top: 7528 ft. Interval Bottom: 10569 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	7/25/2006	Choke Size:
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	Yes
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	7/17/2006
Treatment Summary:	1295132 # 30/50SAND; 26120 BBLS SLICKWATER

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation WFCM.

Perforation Data:
Interval Top:	7528 ft.	# Of Holes:	504
Interval Bottom:	10569 ft.	Hole Size:	0.35 in.

Formation WFILS Formation Classification: GW Status: CM - 7/27/2006 Interval Top: 7528 ft. Interval Bottom: 11597 ft.

Completed Information for Formation WILLIAMS FORK-ILES

1st Production Date:	7/25/2006	Choke Size:	0.313 in.
Formation Name:	WILLIAMS FORK-ILES	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	7/17/2006
Treatment Summary:	1490637 # 30/50 SAND; 31056 BBLS SLICKWATER

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	11425 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	7/27/2006	Test Method:	FLOWING
Hours Tested:	24	Gas Type:
Gas Disposal:	SOLD
CALC_MCF_GAS	1900
CASING_PRESS	2650
TUBING_PRESS	2125

Perforation Data:
Interval Top:	7528 ft.	# Of Holes:	612
Interval Bottom:	11597 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

February 2025 - January 2026	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	39
Total Gas Produced (MCF)	10512
GOR	269538
GOR Determination	MCFE
Average BOE per Day	5.118
Average MCFE per Day	29.688

Federal Financial Assurance

Tribal Well
