Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-103-10608		Well Classification: GW	Status: PR - 3/1/2008
Well Name/No:	FEDERAL RGU #31-32-198 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	COC 60734
Facility Status:	PR	Status Date	3/1/2008
FacilityID:	278633	LocationID:	316478
County:	RIO BLANCO #103	Location:	NWNE 32 1S98W 6
Field:	SULPHUR CREEK - #80090	Elevation:	6494 ft.
Basin:	PICEANCE BASIN
Planned Location:	1155FNL 1980 FEL	Lat/Long: 39.924231 / -108.412730	Lat/Long Source: Calculated From Footages
As Drilled Location:	Footages Not Available	Lat/Long: 39.924290 / -108.412751	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 3/1/2008 Measured TD: 10815 ft. Vertical TD: 10809 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 3/1/2008
Wellbore Permit
Permit #:	20062286	Expiration Date:	7/11/2007
Proposed Depth/Form:	10800 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEDERAL	Surface Owner:	FEDERAL
Unit:	RYAN GULCH UNIT	Unit Number:	COC 68239X
Formation And Spacing:	Code: SEGO , Formation: SEGO , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 510-17 , Unit Acreage: , Drill Unit:

Wellbore Completed
Completion Date:	8/28/2006
Spud Date:	6/5/2006	Spud Date Is:	ACTUAL
Measured TD:	10815 ft.	Measured PB depth:	10740 ft.
True Vertical TD:	10809 ft.	True Vertical PB depth:
Log Types:	CBL; HIGH RES.INDUCTION/SPECTRAL DENSITY/DUAL SPACED NEUTRON

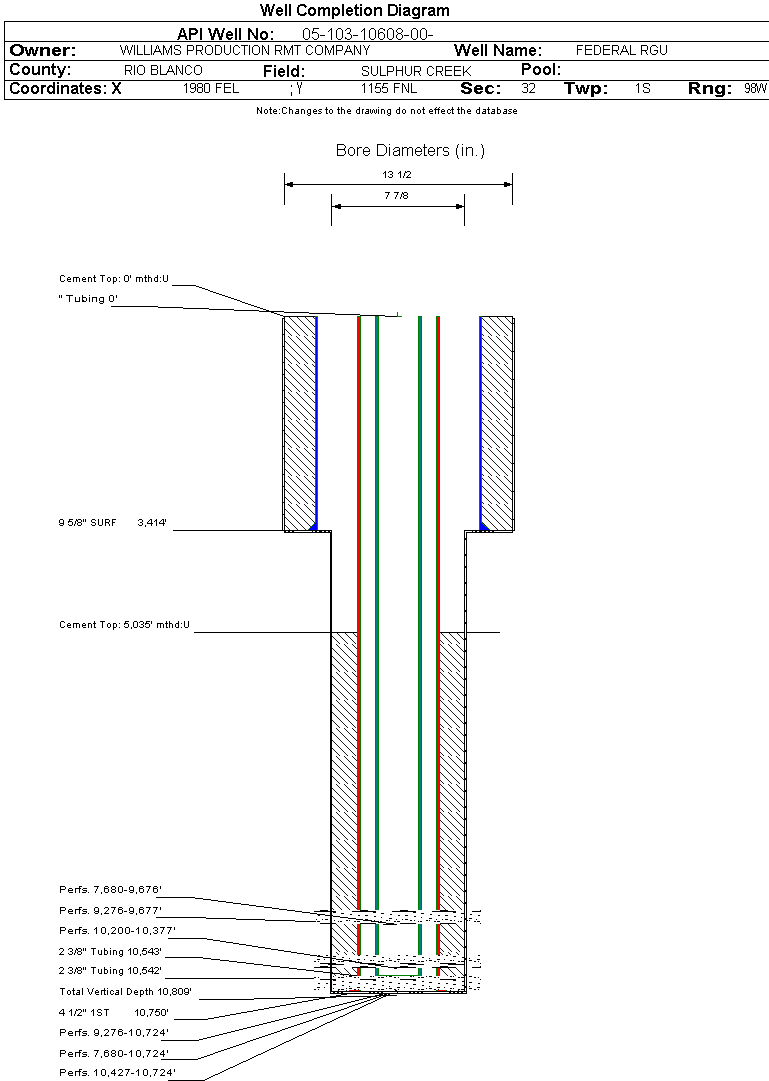

Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 3414 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 2490, Top: 0 ft., Bottom: 3414 ft., Determination Method: CALC
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 10750 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 2145, Top: 5035 ft., Bottom: 10750 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
WASATCH G	4600 ft.		N	N
MESAVERDE	6434 ft.		N	N
CAMEO	9265 ft.		N	N
ROLLINS	9726 ft.		N	N
COZZETTE	9830 ft.		N	N
CORCORAN	10056 ft.		N	N
SEGO	10432 ft.		N	N

Formation SEGO Formation Classification: GW Status: PR - 3/1/2008 Interval Top: 10427 ft. Interval Bottom: 10724 ft.

Completed Information for Formation SEGO

1st Production Date:	9/16/2006	Choke Size:
Formation Name:	SEGO	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	9/7/2006
Treatment Summary:	1500 GALS 10% HCL ACID; 157,100# 20/40 SAND; 3954 BBLS SLICKWATER

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation SEGO.

Perforation Data:
Interval Top:	10427 ft.	# Of Holes:	66
Interval Bottom:	10724 ft.	Hole Size:	0.42 in.

Formation CRCRN Formation Classification: GW Status: PR - 3/1/2008 Interval Top: 10200 ft. Interval Bottom: 10377 ft.

Completed Information for Formation CORCORAN

1st Production Date:	9/16/2006	Choke Size:
Formation Name:	CORCORAN	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	9/7/2006
Treatment Summary:	750 GALS 10% HCL ACID; 77,000# 20/40 SAND; 2076 BBLS SLICKWATER

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation CRCRN.

Perforation Data:
Interval Top:	10200 ft.	# Of Holes:	31
Interval Bottom:	10377 ft.	Hole Size:	0.42 in.

Formation COZZ Formation Classification: GW Status: PR - 3/1/2008 Interval Top: 9830 ft. Interval Bottom: 10377 ft.

Completed Information for Formation COZZETTE

1st Production Date:	9/16/2006	Choke Size:
Formation Name:	COZZETTE	Commingled:
Production Method:
Open Hole Completion:

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation COZZ.

No Perforation Data was found for formation COZZ.

Formation CMEO Formation Classification: GW Status: CM - 9/24/2006 Interval Top: 9276 ft. Interval Bottom: 9677 ft.

Completed Information for Formation CAMEO

1st Production Date:	9/16/2006	Choke Size:
Formation Name:	CAMEO	Commingled:	Yes
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	9/7/2006
Treatment Summary:	1500 GALS 7 1/2% HCL; 132500# 20/40 SAND; 3692 BBLS SLICKWATER

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation CMEO.

Perforation Data:
Interval Top:	9276 ft.	# Of Holes:	35
Interval Bottom:	9677 ft.	Hole Size:	0.42 in.

Formation CRCMS Formation Classification: GW Status: CM - 9/24/2006 Interval Top: 9276 ft. Interval Bottom: 10724 ft.

Completed Information for Formation CAMEO SAND-CORCORAN

1st Production Date:	9/16/2006	Choke Size:	0.313 in.
Formation Name:	CAMEO SAND-CORCORAN	Commingled:	Yes
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	9/7/2006
Treatment Summary:	3750 GALS 1/2% HCL; 366600# 20/40 SAND; 9722 BBLS SLICKWATER {FORMATION LISTED ON FORM AS "SEGO/CORCORAN/CAMEO"}

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	10542 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	9/24/2006	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
CALC_MCF_GAS	2020
CASING_PRESS	2100
TUBING_PRESS	1500

Perforation Data:
Interval Top:	9276 ft.	# Of Holes:	90
Interval Bottom:	10724 ft.	Hole Size:	0.42 in.

Formation ILES Formation Classification: GW Status: CM - 6/17/2007 Interval Top: 7680 ft. Interval Bottom: 10724 ft.

Completed Information for Formation ILES

1st Production Date:	9/16/2006	Choke Size:	0.313 in.
Formation Name:	ILES	Commingled:	Yes
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	9/7/2006
Treatment Summary:	10,640 GALS 10% HCL ACID; 1,022,400# 20/40 SAND; 194,050 BBLS SLICKWATER

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	10543 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	6/17/2007	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
CASING_PRESS	691
MCF_GAS	737
TUBING_PRESS	369

Perforation Data:
Interval Top:	7680 ft.	# Of Holes:	308
Interval Bottom:	10724 ft.	Hole Size:	0.42 in.

Formation WFCM Formation Classification: GW Status: PR - 3/1/2008 Interval Top: 7680 ft. Interval Bottom: 9676 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	9/16/2006	Choke Size:
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	9/7/2006
Treatment Summary:	8390 GALS 10% HCL ACID; 788,300# 20/40 SAND; 18,802 BBLS SLICKWATER

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation WFCM.

Perforation Data:
Interval Top:	7680 ft.	# Of Holes:	211
Interval Bottom:	9676 ft.	Hole Size:	0.42 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

November 2024 - October 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	50
Total Gas Produced (MCF)	25138
GOR	502760
GOR Determination	MCFE
Average BOE per Day	12.004
Average MCFE per Day	69.644

Federal Financial Assurance

Tribal Well
