COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-103-10590		Well Classification: GW Status: PR - 7/1/2020
Well Name/No:FEDERAL RG #32-17-298
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC062053
Facility Status:PRStatus Date7/1/2020
FacilityID:278136LocationID:316470
County:RIO BLANCO #103Location:SWNE 17 2S98W 6
Field:SULPHUR CREEK - #80090Elevation:6545 ft.
Basin:PICEANCE BASIN
Planned Location:1875FNL  1950 FELLat/Long: 39.879271 / -108.412849Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/1/2020             Measured TD: 9843 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/1/2020
Wellbore Permit
Permit #:20062207 Expiration Date:6/6/2006
Proposed Depth/Form:9843 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: CRCRN , Formation: CORCORAN , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: SEGO , Formation: SEGO , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:1/1/2006
Spud Date:7/11/2005Spud Date Is:ACTUAL
Measured TD:9843 ft.Measured PB depth:9740 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CBL; HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON, BOREHOLE COMPENSATED SONIC, DIRECTIONAL, MUD

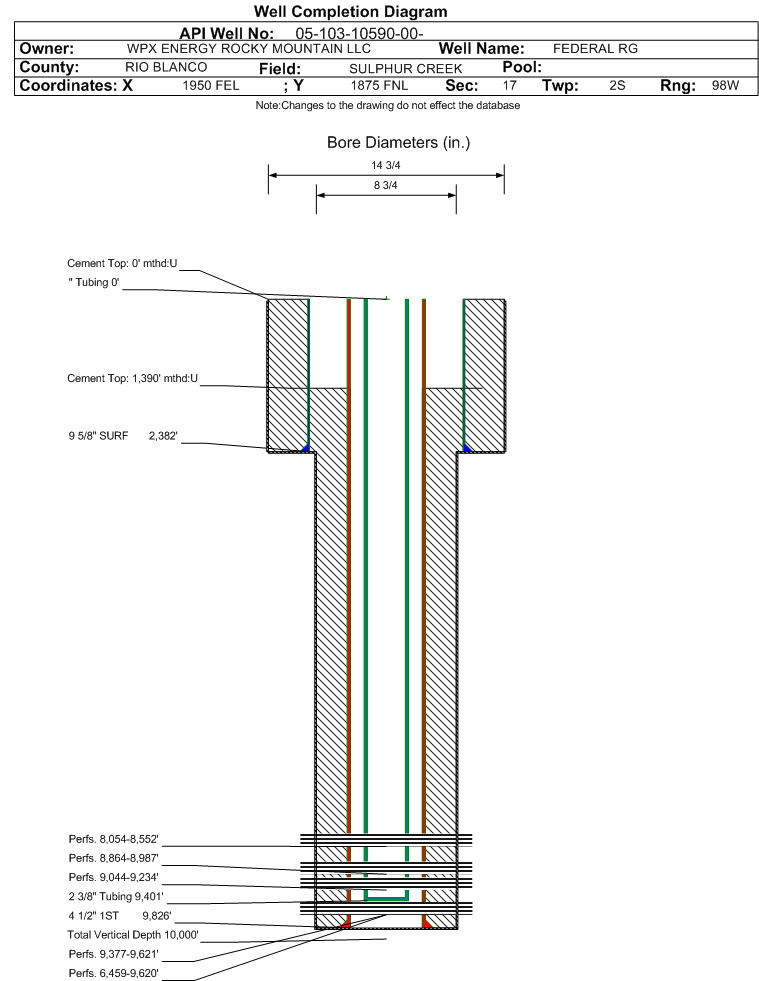

Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2382 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 790, Top: 0 ft., Bottom: 2382 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9826 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1790, Top: 1390 ft., Bottom: 9826 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G3834 ft.NN
FORT UNION4038 ft.NN
MESAVERDE5500 ft.NN
CAMEO8222 ft.NN
ROLLINS8690 ft.NN
COZZETTE8817 ft.NN
CORCORAN8877 ft.NN
SEGO9607 ft.NN

Formation SEGO                     Formation Classification:  GW                     Status:  PR - 7/1/2020                  Interval Top: 9377 ft.    Interval Bottom: 9621 ft.

 Completed Information for Formation SEGO
1st Production Date:1/11/2006Choke Size:
Formation Name:SEGOCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/4/2006
Treatment Summary:3,273 BBLS SLICKWATER; 156,761# 30/50 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation SEGO.
Perforation Data:
Interval Top:9377 ft.# Of Holes:60
Interval Bottom:9621 ft.Hole Size:0.32 in.

Formation CRCRN                   Formation Classification:  GW                   Status:  PR - 7/1/2020                  Interval Top: 9044 ft.    Interval Bottom: 9234 ft.

 Completed Information for Formation CORCORAN
1st Production Date:1/11/2006Choke Size:
Formation Name:CORCORANCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/4/2006
Treatment Summary:2186BBLS SLICKWATER; 594# 30/50 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CRCRN.
Perforation Data:
Interval Top:9044 ft.# Of Holes:36
Interval Bottom:9234 ft.Hole Size:0.36 in.

Formation COZZ                     Formation Classification:  GW                     Status:  PR - 7/1/2020                  Interval Top: 8864 ft.    Interval Bottom: 8987 ft.

 Completed Information for Formation COZZETTE
1st Production Date:1/4/2006Choke Size:
Formation Name:COZZETTECommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/4/2006
Treatment Summary:994 BBL SLICKWATER, 47300# 30/50 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation COZZ.
Perforation Data:
Interval Top:8864 ft.# Of Holes:36
Interval Bottom:8987 ft.Hole Size:0.36 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 7/1/2020                  Interval Top: 8054 ft.    Interval Bottom: 8552 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:1/11/2006Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/4/2006
Treatment Summary:12,570 BBLS SLICKWATER; 625,340# 30/50 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1496
CASING_PRESS 1365
TUBING_PRESS 856
Perforation Data:
Interval Top:8054 ft.# Of Holes:312
Interval Bottom:8552 ft.Hole Size:0.32 in.

Formation WFILS                   Formation Classification:  GW                   Status:  CM - 1/18/2006                 Interval Top: 6459 ft.    Interval Bottom: 9620 ft.

 Completed Information for Formation WILLIAMS FORK-ILES
1st Production Date:1/11/2006Choke Size:0.500 in.
Formation Name:WILLIAMS FORK-ILESCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/4/2006
Treatment Summary:889629# 30/50 SAND. 18022 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:9401 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/18/2006Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1144
CALC_GOR 0
CASING_PRESS 1434
GRAVITY_OIL 56
MCF_GAS 1541
TUBING_PRESS 826
Perforation Data:
Interval Top:6459 ft.# Of Holes:444
Interval Bottom:9620 ft.Hole Size:0.36 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)158
Total Gas Produced (MCF)20728
GOR131189
GOR DeterminationMCFE
Average BOE per Day10.226
Average MCFE per Day59.309

 Federal Financial Assurance  i Y

 Tribal Well  i No
