COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-103-10492		Well Classification: CBM Status: PA - 10/22/2021
Well Name/No:COLUMBINE SP FED #16C-24-4-104
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:LOCIN OIL CORPORATION - 51130
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 10700
Facility Status:PAStatus Date10/22/2021
FacilityID:273765LocationID:316422
County:RIO BLANCO #103Location:NENE 24 4S104W 6
Field:BAXTER PASS - #5700Elevation:6462 ft.
Basin:PICEANCE BASIN
Planned Location:1200FNL  1256 FELLat/Long: 39.700530 / -109.015266Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.700600 / -109.015320Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

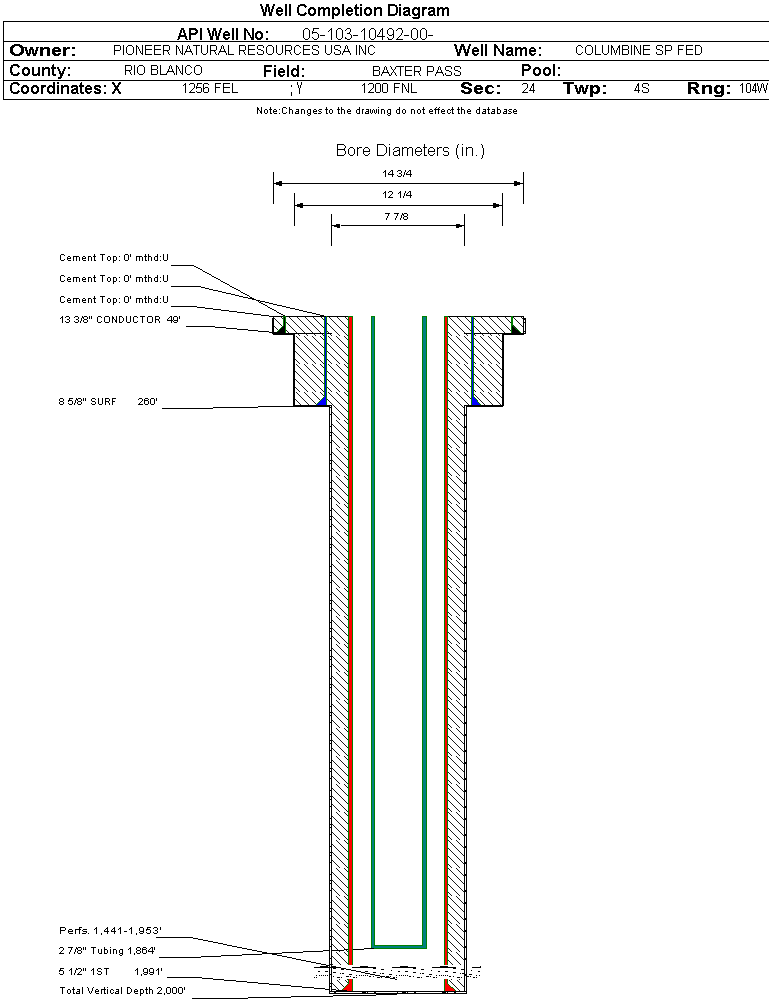

Wellbore #00             Wellbore Classification: CBM             Status: PA - 10/22/2021             Measured TD: 2000 ft.    Vertical TD: 2000 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PA - 10/22/2021
Wellbore Permit
Permit #:20053817 Expiration Date:11/16/2006
Proposed Depth/Form:1900 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: MVRD , Formation: MESAVERDE , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:4/27/2006
Spud Date:4/25/2006Spud Date Is:ACTUAL
Measured TD:2000 ft.Measured PB depth:
True Vertical TD:2000 ft.True Vertical PB depth:
Log Types:AIT-GR/CN-GR/CBL
Casing:String Type: CONDUCTOR, Hole Size: 14.75 in., Size: 13.375 in., Top: 0 ft., Depth: 49 ft., Weight: UNK , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 49 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 260 ft., Weight: UNK , Citings Type: ACTUAL
Cement:Sacks: 154, Top: 0 ft., Bottom: 260 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 1991 ft., Weight: UNK , Citings Type: ACTUAL
Cement:Sacks: 313, Top: 0 ft., Bottom: 1991 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
MESAVERDE0 ft.2000 ft.NN

Formation MVRD                     Formation Classification:  GW                     Status:  AB - 10/22/2021                Interval Top: 1441 ft.    Interval Bottom: 1953 ft.

 Completed Information for Formation MESAVERDE
1st Production Date:5/22/2007Choke Size:
Formation Name:MESAVERDECommingled:No
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation MVRD.
Perforation Data:
Interval Top:1441 ft.# Of Holes:108
Interval Bottom:1953 ft.Hole Size:

Formation MVRDC                   Formation Classification:  GW                   Status:  AB - 10/22/2021                Interval Top: 1441 ft.    Interval Bottom: 1953 ft.

 Completed Information for Formation MESAVERDE COAL
1st Production Date:5/22/2007Choke Size:64.000 in.
Formation Name:MESAVERDE COALCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/16/2007
Treatment Summary:FRAC'D 1441-1953' W/TOTAL OF N2 1,279,018 SCF & 200,442# 20/40 SAND PROPPANT.
Tubing Size:2.875 in.Tubing Setting Depth:1864 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/25/2007Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 791
BTU_GAS 999
CALC_BBLS_H2O 791
CALC_MCF_GAS 269
CASING_PRESS 45
MCF_GAS 269
TUBING_PRESS 45
Perforation Data:
Interval Top:1441 ft.# Of Holes:108
Interval Bottom:1953 ft.Hole Size:0.46 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/22/2021
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
