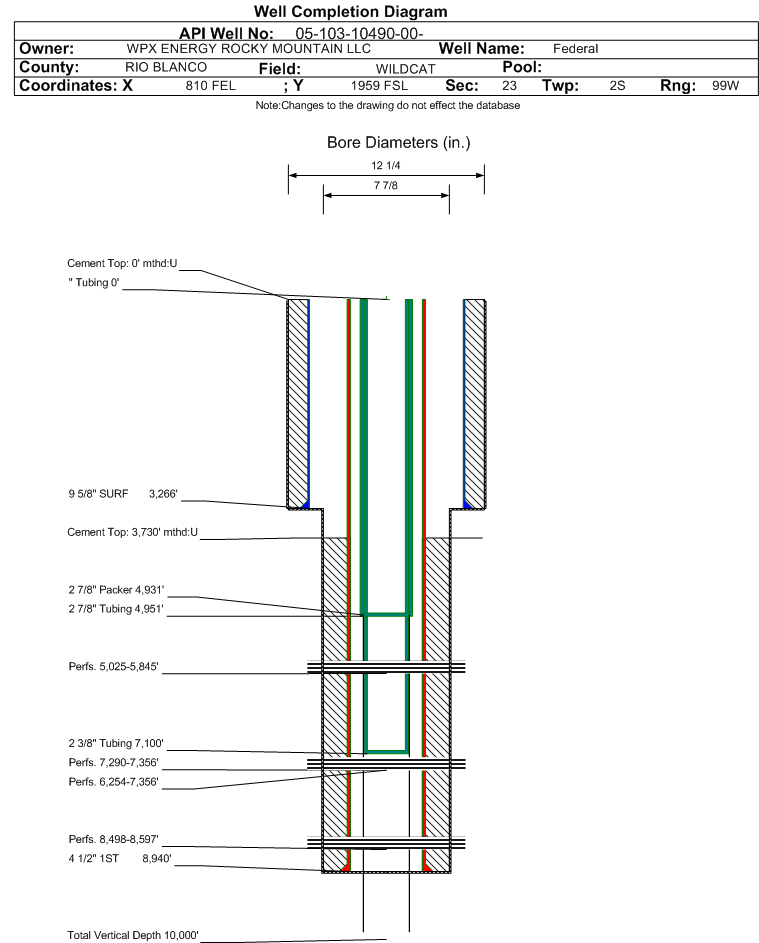

Wellbore #00 Wellbore Classification: DSPW Status: IJ - 8/1/2025 Measured TD: 8950 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: DSPW IJ - 8/1/2025 | | Wellbore Permit | | | Permit #: | | Expiration Date: | 4/3/2015 | | Proposed Depth/Form: | 8950 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: FTUN , Formation: FORT UNION , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: MVRD , Formation: MESAVERDE , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 3266 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 730, Top: 370 ft., Bottom: 3266 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8940 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 1000, Top: 3685 ft., Bottom: 8940 ft. |
| | |
| Wellbore Completed | | Completion Date: | 11/5/2005 | | Spud Date: | 9/26/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 8950 ft. | Measured PB depth: | 8900 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | RST SIGMA LOG/GAMMA RAY CCL, SLIM CEMENT MAP LOG, CEMENT BOND LOG/CASING COLLAR LOCATOR | | Log Types: | (All LOGS submitted in the pad when the well was initially drilled.) | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 3266 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 730, Top: 0 ft., Bottom: 3266 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8940 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1000, Top: 3730 ft., Bottom: 8940 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | OHIO CREEK | 5547 ft. | | | | | WILLIAMS FORK | 5604 ft. | | | | | ROLLINS | 7853 ft. | | | | | SEGO | 8470 ft. | | | |
Formation SEGO Formation Classification: GW Status: AB - 6/6/2013 Interval Top: 8498 ft. Interval Bottom: 8597 ft.| Completed Information for Formation SEGO | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | SEGO | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation SEGO. |
| | Perforation Data: | | Interval Top: | 8498 ft. | # Of Holes: | 0 | | Interval Bottom: | 8597 ft. | Hole Size: | |
|
Formation MVRD Formation Classification: GW Status: IJ - 8/1/2025 Interval Top: 7290 ft. Interval Bottom: 7356 ft.| Completed Information for Formation MESAVERDE | | 1st Production Date: | 11/14/2013 | Choke Size: | 0.469 in. | | Formation Name: | MESAVERDE | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/13/2005 | | Treatment Summary: | 23K GALS SW PAD, 77,111 GALS SW CARRYING 90K LBS 20/40 HIRDAB SABDM FKYSGED W.5,040 GALS SW |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7100 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/8/2006 | Test Method: | CALCULATED | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | BTU_GAS | 1238 | | CALC_MCF_GAS | 5 | | CASING_PRESS | 300 | | MCF_GAS | 5 | | TUBING_PRESS | 100 |
| | Perforation Data: | | Interval Top: | 7290 ft. | # Of Holes: | 30 | | Interval Bottom: | 7356 ft. | Hole Size: | 66 in. |
|
Formation RLNS Formation Classification: GW Status: AB - 6/6/2013 Interval Top: 6254 ft. Interval Bottom: 7356 ft.| Completed Information for Formation ROLLINS | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | ROLLINS | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation RLNS. |
| | Perforation Data: | | Interval Top: | 6254 ft. | # Of Holes: | 0 | | Interval Bottom: | 7356 ft. | Hole Size: | |
|
Formation WMFK Formation Classification: GW Status: CM - 11/6/2013 Interval Top: 5025 ft. Interval Bottom: 5845 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/26/2013 | Treatment End Date: | 9/3/2013 | | Treatment Summary: | 2500 Gals 7 ½% HCL; 424382 # 20/40 Sand; 11311 Bbls Slickwater (Summary)
| | Total fluid used in treatment (bbls): | 11370 | Max pressure during treatment (psi): | 4535 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 5 | | Total acid used in treatment (bbls): | 59 | Min frac gradient (psi/ft): | 0.58 | | Recycled water used in treatment (bbls): | 11311 | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | 424382 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 4951 ft. | | Tubing Packer Depth: | 4951 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WMFK. |
| | Perforation Data: | | Interval Top: | 5025 ft. | # Of Holes: | 76 | | Interval Bottom: | 5845 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | Y |
|
|
