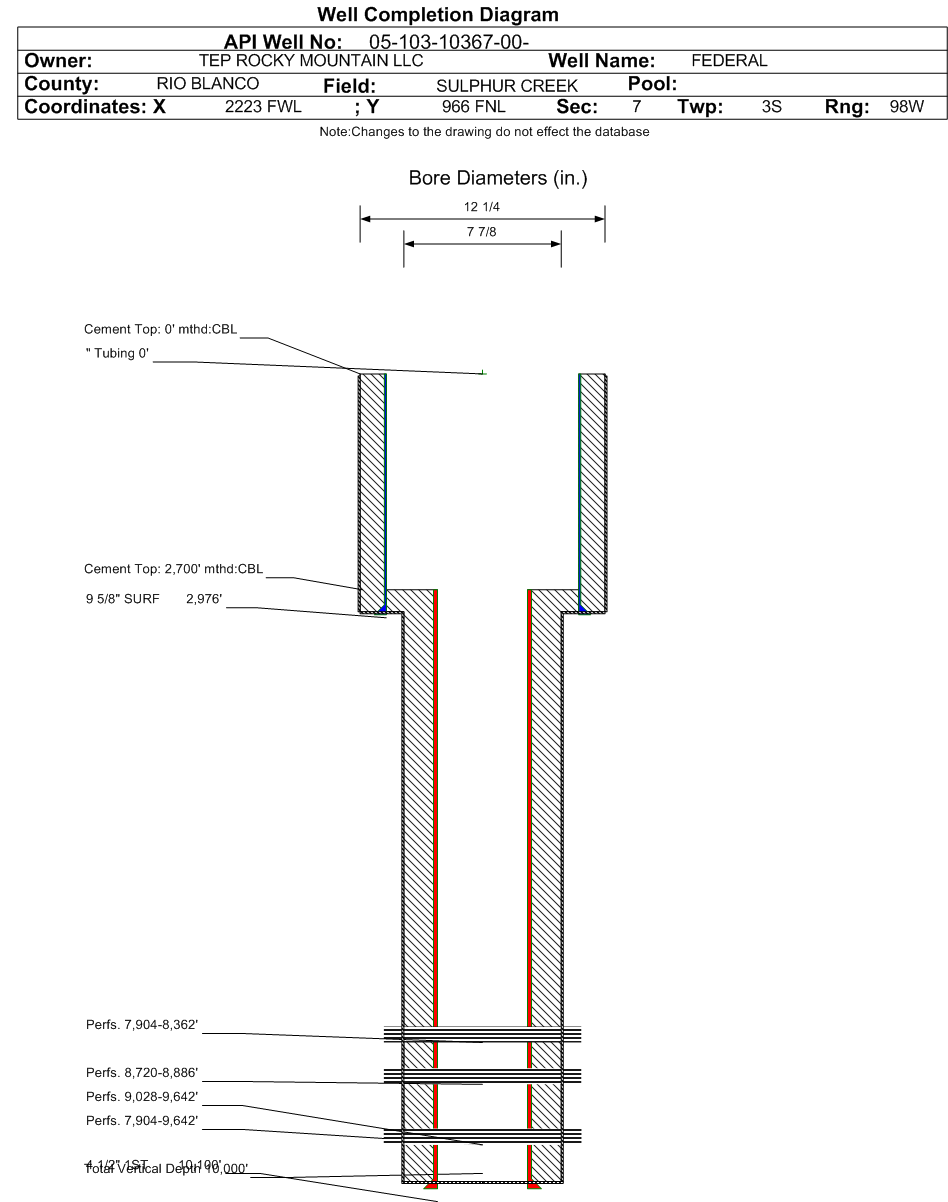

Wellbore #00 Wellbore Classification: GW Status: PR - 10/1/2011 Measured TD: 10114 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/1/2011 | | Wellbore Permit | | | Permit #: | 20064284 | Expiration Date: | 8/24/2007 | | Proposed Depth/Form: | 10100 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CMEO , Formation: CAMEO , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: CMEOC , Formation: CAMEO COAL , Order: , Unit Acreage: , Drill Unit: NE NW | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: MVRD , Formation: MESAVERDE , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: SEGO , Formation: SEGO , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WSTC , Formation: WASATCH , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: 2ND, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 8500 ft., Weight: 17 , Citings Type: PLANNED | | Cement: | Sacks: 795, Top: 3250 ft., Bottom: 8500 ft. | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 4250 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |
| Wellbore Completed | | Completion Date: | 5/9/2006 | | Spud Date: | 3/19/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 10114 ft. | Measured PB depth: | 10000 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | CBL/GR/CCL, CALIPER/CV/GR, PE- CD/GR, PE-AI/GR | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2976 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 635, Top: 0 ft., Bottom: 2976 ft., Determination Method: CBL | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 2700 ft., Depth: 10100 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1550, Top: 2700 ft., Bottom: 10100 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 2643 ft. | | N | N | | OHIO CREEK | 5433 ft. | | N | N | | WILLIAMS FORK | 5583 ft. | | N | N | | CAMEO | 7913 ft. | | N | N | | ILES | 8407 ft. | | N | N | | LOYD SS | 9622 ft. | | N | N |
Formation SEGO Formation Classification: GW Status: SI - 7/1/2025 Interval Top: 9028 ft. Interval Bottom: 9642 ft.| Completed Information for Formation SEGO | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | SEGO | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 6/27/2006 | | Treatment Summary: | 28K GALS SW W/50%N2, 58K GALS SW PAD, 221K GALS SW CARRYING 251LBS 30/50 WHITE SAND, FLUSHED W/18KGALS SW |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation SEGO. |
| | Perforation Data: | | Interval Top: | 9028 ft. | # Of Holes: | 66 | | Interval Bottom: | 9642 ft. | Hole Size: | 0.25 in. |
|
Formation CRCRN Formation Classification: GW Status: SI - 7/1/2025 Interval Top: 8720 ft. Interval Bottom: 8886 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CORCORAN | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 6/28/2006 | | Treatment Summary: | 8K GALS SW W/ 50%N2, 15K GALS SW PAD, 51K GALS SW CARRYING 62K LBS 30/50 BROWN SAND, FLUSHED W/ 5670 GALS SW |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CRCRN. |
| | Perforation Data: | | Interval Top: | 8720 ft. | # Of Holes: | 27 | | Interval Bottom: | 8886 ft. | Hole Size: | 0.25 in. |
|
Formation CMCRSG Formation Classification: GW Status: CM - 3/20/2020 Interval Top: 7904 ft. Interval Bottom: 9642 ft.| Completed Information for Formation CAMEO-CORCORAN-SEGO | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CAMEO-CORCORAN-SEGO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CMCRSG. |
| | Perforation Data: | | Interval Top: | 7904 ft. | # Of Holes: | 150 | | Interval Bottom: | 9642 ft. | Hole Size: | 0.25 in. |
|
Formation CMEO Formation Classification: GW Status: PR - 10/1/2011 Interval Top: 7904 ft. Interval Bottom: 8362 ft.| Completed Information for Formation CAMEO | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CAMEO | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 6/28/2006 | | Treatment Summary: | 16K GALS SW W/50%N2, 33K GALS SW PAD, 115K GALS SW CARRYING 158K LBS 30/50 BROWN SAND, FLUSHED W/ 10K GALS SW |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CMEO. |
| | Perforation Data: | | Interval Top: | 7904 ft. | # Of Holes: | 57 | | Interval Bottom: | 8362 ft. | Hole Size: | 0.25 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 11 |
| Total Gas Produced (MCF) | 4660 |
| GOR | 423636 |
| GOR Determination | MCFE |
| Average BOE per Day | 2.236 |
| Average MCFE per Day | 12.982 |
| Federal Financial Assurance | i | Y |
|
|
