Wellbore #00 Wellbore Classification: GW Status: PR - 11/21/2003 Measured TD: 1154 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/21/2003 | | Wellbore Permit | | | Permit #: | 20030693 | Expiration Date: | 4/24/2004 | | Proposed Depth/Form: | 1125 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: MNCSA , Formation: MANCOS A , Order: , Unit Acreage: 640, Drill Unit: | | Casing: | String Type: 2ND, Hole Size: 3.875 in., Size: 2.375 in., Top: , Depth: 1125 ft., Weight: 4.7 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

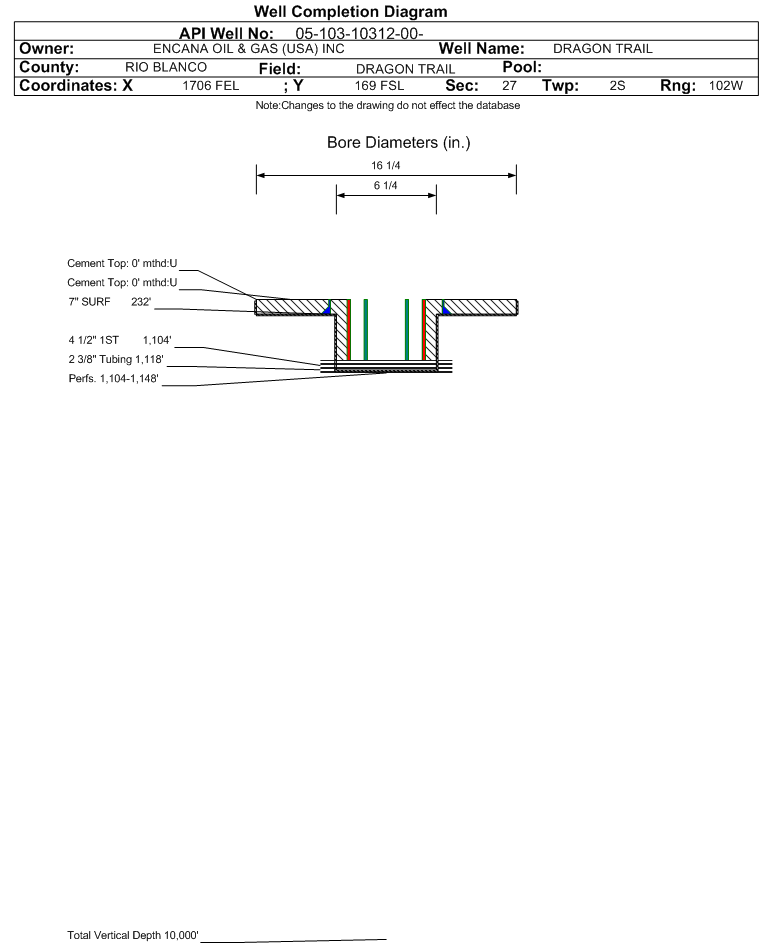

| Wellbore Completed | | Completion Date: | 5/30/2003 | | Spud Date: | 4/13/2003 | Spud Date Is: | ACTUAL | | Measured TD: | 1154 ft. | Measured PB depth: | 1148 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | TEMP LOG-GR | | Casing: | String Type: SURF, Hole Size: 16.25 in., Size: 7 in., Top: 0 ft., Depth: 232 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 75, Top: 0 ft., Bottom: 232 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 6.25 in., Size: 4.5 in., Top: 0 ft., Depth: 1104 ft., Weight: 10.5 , Citings Type: ACTUAL | | Cement: | Sacks: 80, Top: 0 ft., Bottom: 1104 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | LOYD SS | 745 ft. | | N | N | | MANCOS A | 1100 ft. | 1154 ft. | N | N |
Formation MNCSA Formation Classification: GW Status: PR - 11/21/2003 Interval Top: 1104 ft. Interval Bottom: 1148 ft.| Completed Information for Formation MANCOS A | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | MANCOS A | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/30/2003 | | Treatment Summary: | BREAKDOWN OPEN HOLE W/ 57 BBLS CO2. FLOW. DUMP 4 SXS CMT @ 1151'. NEW PBTD 1148'. FRAC W/ 4200# 20/40 SD IN 8400 GALS DELTA FRAC. SI. FLOW. CLEAN HOLE W/ FOAM. FLOW. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 1118 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/25/2003 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 118 | | CASING_PRESS | 0 | | MCF_GAS | 118 | | TUBING_PRESS | 0 |
| | Perforation Data: | | Interval Top: | 1104 ft. | # Of Holes: | | | Interval Bottom: | 1148 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 15735 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 7.438 |
| Average MCFE per Day | 43.123 |
| Federal Financial Assurance | i | Y |
|
|
