COGIS - WELL SCOUT CARD

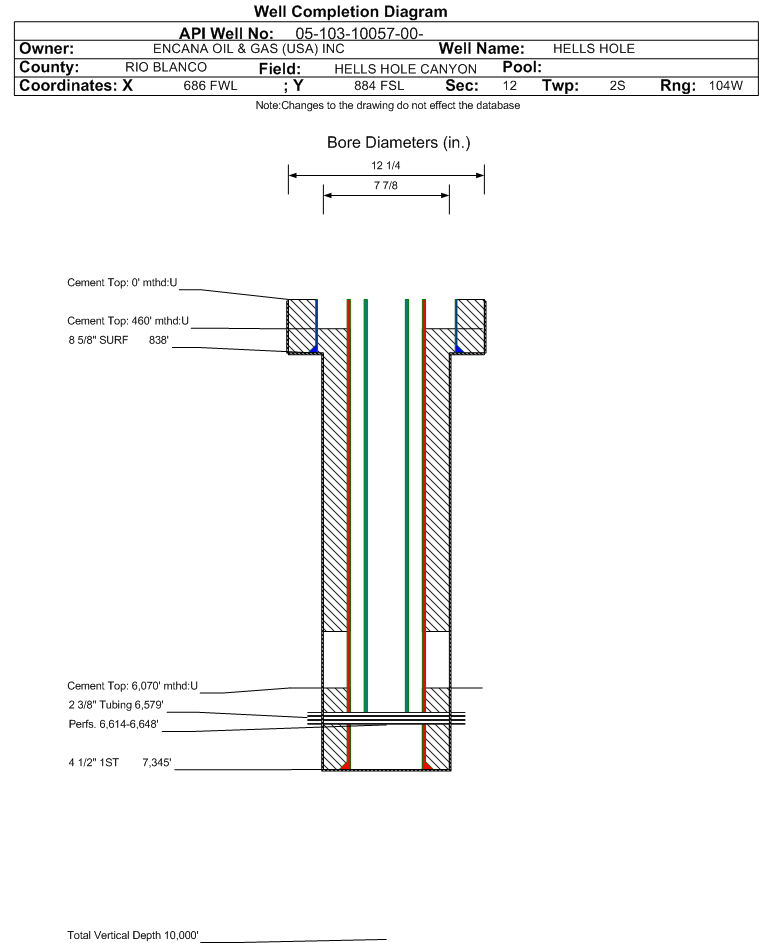

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-103-10057		Well Classification: GW Status: PR - 5/3/2003
Well Name/No:HELLS HOLE #9133
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:UTAH GAS OP LTD DBA UTAH GAS CORP - 10539
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/3/2003
FacilityID:258203LocationID:335833
County:RIO BLANCO #103Location:SWSW 12 2S104W 6
Field:HELLS HOLE CANYON - #34175Elevation:6675 ft.
Basin:PICEANCE BASIN
Planned Location:884FSL  686 FWLLat/Long: 39.883817 / -109.024008Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.883795 / -109.023998Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/3/2003             Measured TD: 7350 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/3/2003
Wellbore Permit
Permit #:20021861 Expiration Date:10/6/2003
Proposed Depth/Form:8000 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: DKTA , Formation: DAKOTA , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:4/25/2003
Spud Date:2/11/2003Spud Date Is:ACTUAL
Measured TD:7350 ft.Measured PB depth:7295 ft.
True Vertical TD:True Vertical PB depth:
Log Types:ARRAY IND-GR, GR-SPECTROMETRY, COMP NEUT-LITHO DENSITY, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 838 ft., Weight: 32 , Citings Type: ACTUAL
Cement:Sacks: 480, Top: 0 ft., Bottom: 850 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7345 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 310, Top: 6070 ft., Bottom: 7345 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 4363 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1075, Top: 460 ft., Bottom: 5190 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
MANCOS B0 ft.3917 ft.NN
SEGO1981 ft.NN
LOYD SS2198 ft.NN
MANCOS A2489 ft.3356 ft.NN
FRONTIER6373 ft.NN
DAKOTA6605 ft.NN
MORRISON6856 ft.NN

Formation DKTA                     Formation Classification:  GW                     Status:  PR - 5/3/2003                  Interval Top: 6614 ft.    Interval Bottom: 6648 ft.

 Completed Information for Formation DAKOTA
1st Production Date:N/AChoke Size:
Formation Name:DAKOTACommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/25/2003
Treatment Summary:DRILL OUT CMT (DV TOOL). PERF 6786-6788' & 6826-6830' W/ 2 SPF. SET PKR @ 6764'. ACIDIZE W/ 24 BBLS 7.5% HCI + 20-1.3
Tubing Size:2.375 in.Tubing Setting Depth:6579 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/3/2003Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 0
BTU_GAS 1170
CALC_BBLS_H2O 1
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 1001
CASING_PRESS 243
MCF_GAS 1001
TUBING_PRESS 145
Perforation Data:
Interval Top:6614 ft.# Of Holes:40
Interval Bottom:6648 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)31188
GOR
GOR DeterminationMCFE
Average BOE per Day14.756
Average MCFE per Day85.586

 Federal Financial Assurance  i Y

 Tribal Well  i No
