COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-103-10046		Well Classification: GW Status: PA - 9/8/2001
Well Name/No:WRD FEDERAL #3-29
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CHESAPEAKE OPERATING LLC - 16660
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC0100022
Facility Status:PAStatus Date9/8/2001
FacilityID:257859LocationID:398635
County:RIO BLANCO #103Location:NWNE 29 2N97W 6
Field:WHITE RIVER - #92800Elevation:5995 ft.
Basin:PICEANCE BASIN
Planned Location:594FNL  1714 FELLat/Long: 40.118579 / -108.298948Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 8/15/2001             Measured TD: 2370 ft.    Vertical TD: 2370 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 8/15/2001
Wellbore Permit
Permit #:000859 Expiration Date:8/14/2001
Proposed Depth/Form:2370 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:12/16/2000
Spud Date:10/19/2000Spud Date Is:ACTUAL
Measured TD:2370 ft.Measured PB depth:1450 ft.
True Vertical TD:2370 ft.True Vertical PB depth:1450 ft.
Log Types:GR/CBL, THERMAL MULTIGATE DECAY LITHOLOGY (CASED HOLE)

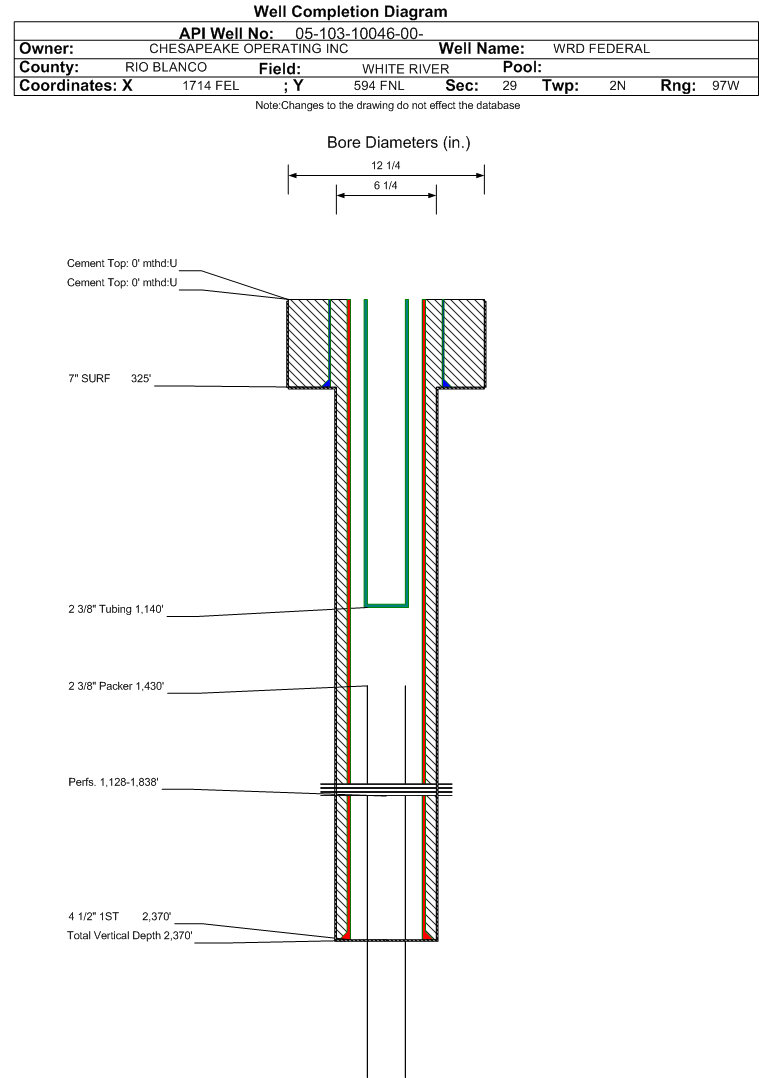

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 7 in., Top: , Depth: 325 ft., Weight: 20 , Citings Type: ACTUAL
Cement:Sacks: 0, Top: 0 ft., Bottom: 325 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 6.25 in., Size: 4.5 in., Top: 0 ft., Depth: 2370 ft., Weight: 9.5 , Citings Type: ACTUAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH1128 ft.1838 ft.NN

Formation WSTC                     Formation Classification:  GW                     Status:  AB - 9/8/2001                  Interval Top: 1128 ft.    Interval Bottom: 1838 ft.

 Completed Information for Formation WASATCH
1st Production Date:N/AChoke Size:1.000 in.
Formation Name:WASATCHCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:12/16/2000
Treatment Summary:12.0 BBL 7.5% HCI (ENERGIZED W/N2) DIVERTED W/N2 CONTAINING HALLIBURTON ADDITIVES:HC-2, FLOCHECK, CLA-STA XP, HAI-83M
Tubing Size:2.375 in.Tubing Setting Depth:1140 ft.
Tubing Packer Depth:1450 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/16/2000Test Method:FLOWING
Hours Tested:2Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 48
CASING_PRESS 30
MCF_GAS 4
TUBING_PRESS 30
Perforation Data:
Interval Top:1128 ft.# Of Holes:126
Interval Bottom:1838 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/08/2001
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
