This operator is no longer active in the State of Colorado.
Surface Location API# 05-103-08660		Well Classification: DA	Status: PA - 6/3/2010
Well Name/No:	FEDERAL #2-15 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	NORTHSTAR GAS COMPANY INC - 64310 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	44547
Facility Status:	PA	Status Date	6/3/2010
FacilityID:	230991	LocationID:	315529
County:	RIO BLANCO #103	Location:	SWSE 15 1S103W 6
Field:	BANTA RIDGE - #5200	Elevation:	5612 ft.
Basin:	PICEANCE BASIN
Planned Location:	834FSL 1793 FEL	Lat/Long: 39.956037 / -108.939306	Lat/Long Source: Calculated From Footages
As Drilled Location:	Footages Not Available	Lat/Long: 39.956030 / -108.939300	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: DA Status: PA - 6/3/2010 Measured TD: 6515 ft. Vertical TD: 6515 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: DA PA - 6/3/2010
Wellbore Permit
Permit #:	810037	Expiration Date:	5/9/1981
Proposed Depth/Form:
Surface Mineral Owner Same:	Not available
Mineral Owner:	FEDERAL	Surface Owner:	FEDERAL
Unit:		Unit Number:	C-10333
Formation And Spacing:	Code: DKTA , Formation: DAKOTA , Order: 0 , Unit Acreage: 0, Drill Unit:

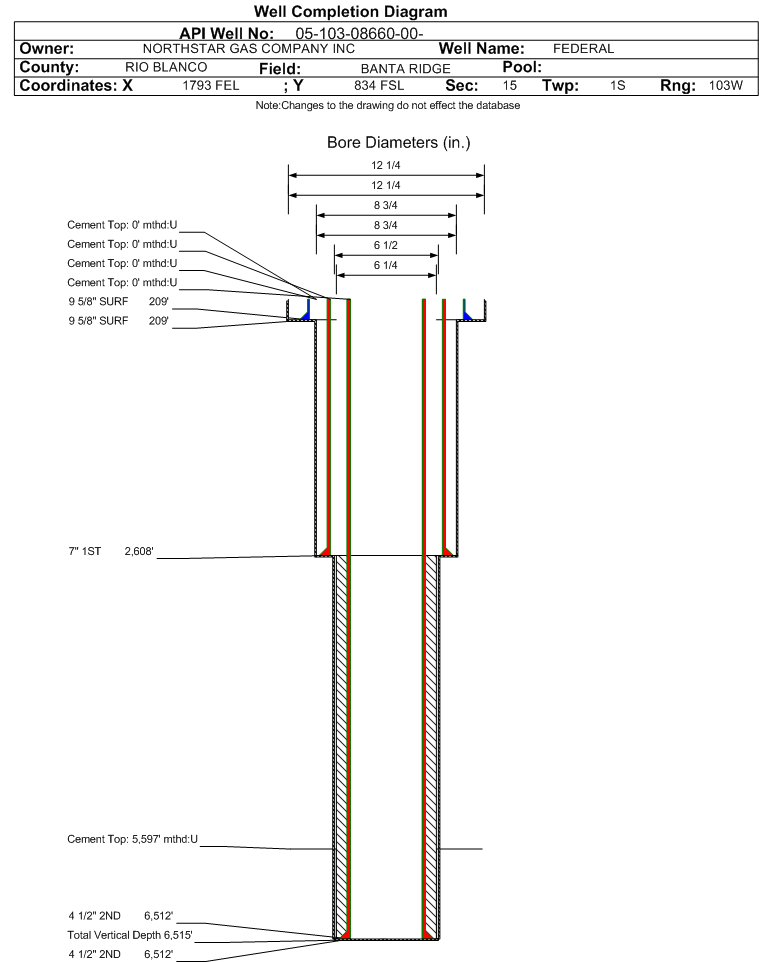

Wellbore Completed
Completion Date:	3/31/1981
Measured TD:	6515 ft.	Measured PB depth:	6471 ft.
True Vertical TD:	6515 ft.	True Vertical PB depth:
Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 209 ft., Weight: 36 , Citings Type: ACTUAL
Cement:	Sacks: 200, Top: 0 ft., Bottom: 209 ft., Determination Method: VISU
Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 209 ft., Weight: , Citings Type: HISTORICAL
Cement:	Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
Casing:	String Type: 1ST, Hole Size: 8.75 in., Size: , Top: , Depth: 2608 ft., Weight: 23 , Citings Type: ACTUAL
Cement:	Sacks: 300, Top: 0 ft., Bottom: 2608 ft., Determination Method: CALC
Casing:	String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 2608 ft., Weight: , Citings Type: HISTORICAL
Cement:	Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:	String Type: 2ND, Hole Size: 6.5 in., Size: 4.5 in., Top: , Depth: 6512 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:	Sacks: 250, Top: 5597 ft., Bottom: 6512 ft., Determination Method: CBL
Casing:	String Type: 2ND, Hole Size: 6.25 in., Size: 4.5 in., Top: 0 ft., Depth: 6512 ft., Weight: , Citings Type: HISTORICAL
Cement:	Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Formation	Interval Top	Log Bottom	Cored	DSTs
SEGO	1703 ft.
CASTLEGATE	2004 ft.
MANCOS B	3161 ft.
DAKOTA	6218 ft.
CEDAR MOUNTAIN	6464 ft.

Formation DKTA Formation Classification: GW Status: AB - 5/15/2015 Interval Top: 6218 ft.

Completed Information for Formation DAKOTA

1st Production Date:	N/A	Choke Size:	1,864.000 in.
Formation Name:	DAKOTA	Commingled:
Production Method:
Open Hole Completion:

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation DKTA.

No Perforation Data was found for formation DKTA.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	Y	06/03/2010
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

October 2024 - September 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	0
Total Gas Produced (MCF)	0
GOR
GOR Determination
Average BOE per Day	0.000
Average MCFE per Day	0.000

Federal Financial Assurance

Tribal Well
