Wellbore #00 Wellbore Classification: DA Status: PA - 9/21/1999 Measured TD: 6480 ft. Vertical TD: 0 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: DA PA - 9/21/1999 | | Wellbore Permit | | | Permit #: | 770203 | Expiration Date: | 7/15/1977 | | Proposed Depth/Form: | | | Surface Mineral Owner Same: | Not available | | Mineral Owner: | FEE | Surface Owner: | Not available | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: MNCSB , Formation: MANCOS B , Order: 0 , Unit Acreage: 160, Drill Unit: NE4 |
| | |

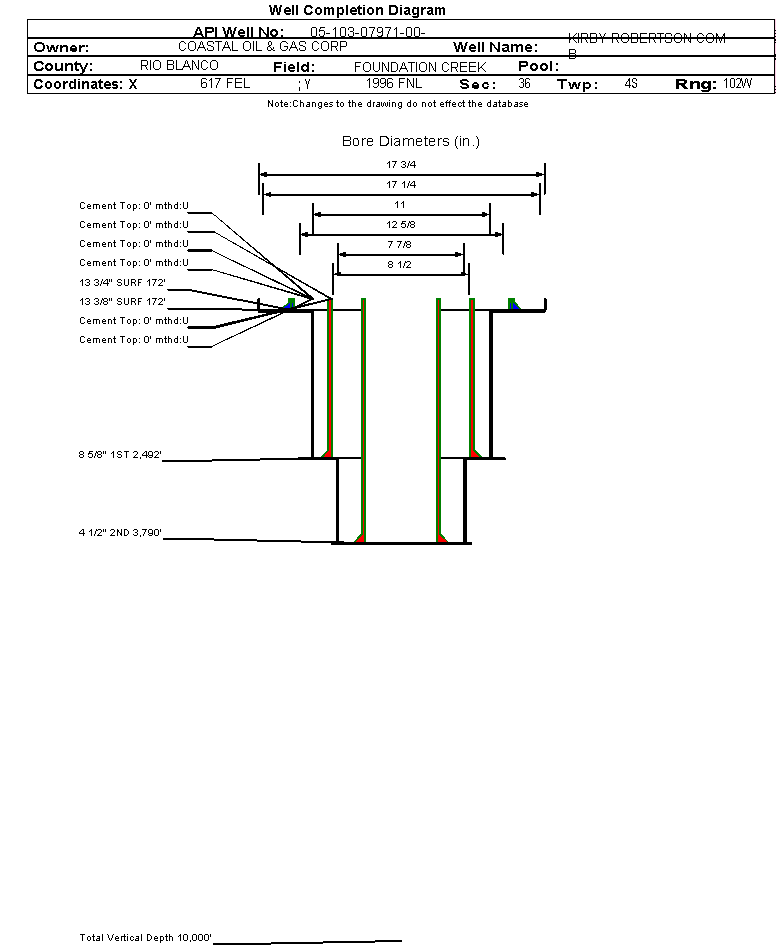

| Wellbore Completed | | Completion Date: | 7/17/1977 | | Measured TD: | 6480 ft. | Measured PB depth: | 4300 ft. | | True Vertical TD: | 0 ft. | True Vertical PB depth: | | | Casing: | String Type: SURF, Hole Size: , Size: 13.75 in., Top: , Depth: 172 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Casing: | String Type: SURF, Hole Size: 17.25 in., Size: 13.375 in., Top: 0 ft., Depth: 172 ft., Weight: , Citings Type: HISTORICAL | | Cement: | Sacks: 100, Top: 0 ft., Bottom: , Determination Method: | | Casing: | String Type: 1ST, Hole Size: , Size: 8.625 in., Top: , Depth: 2492 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Casing: | String Type: 1ST, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 2492 ft., Weight: , Citings Type: HISTORICAL | | Cement: | Sacks: 0, Top: 0 ft., Bottom: , Determination Method: | | Casing: | String Type: 2ND, Hole Size: , Size: 4.5 in., Top: , Depth: 3790 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Casing: | String Type: 2ND, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 3790 ft., Weight: , Citings Type: HISTORICAL | | Cement: | Sacks: 0, Top: 0 ft., Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | MESAVERDE | 490 ft. | | | | | MANCOS | 1714 ft. | | | | | SEGO | 1847 ft. | | | | | CASTLEGATE | 2180 ft. | | | | | MANCOS A | 2700 ft. | | | | | MANCOS B | 3262 ft. | | | |
Formation MNCSB Formation Classification: GW Status: AB - 9/21/1999 Interval Top: 3262 ft.| Completed Information for Formation MANCOS B | | 1st Production Date: | N/A | Choke Size: | 102.000 in. | | Formation Name: | MANCOS B | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation MNCSB. |
| | No Perforation Data was found for formation MNCSB. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 09/21/1999 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
