COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-103-07662		Well Classification: GW Status: PR - 7/1/2021
Well Name/No:GOVT-EQUITY #298-26-2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:47709
Facility Status:PRStatus Date7/1/2021
FacilityID:230003LocationID:314975
County:RIO BLANCO #103Location:SESW 26 2S98W 6
Field:SULPHUR CREEK - #80090Elevation:6753 ft.
Basin:PICEANCE BASIN
Planned Location:780FSL  1500 FWLLat/Long: 39.842092 / -108.366528Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.842090 / -108.366560Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/1/2021             Measured TD: 4794 ft.    Vertical TD: 4794 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/1/2021
Wellbore Permit
Permit #:740697 Expiration Date:12/29/1974
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:C-742
Formation And Spacing:Code: WSTCG , Formation: WASATCH G , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:2/11/1975
Spud Date:12/4/1974Spud Date Is:ACTUAL
Measured TD:4794 ft.Measured PB depth:4442 ft.
True Vertical TD:4794 ft.True Vertical PB depth:

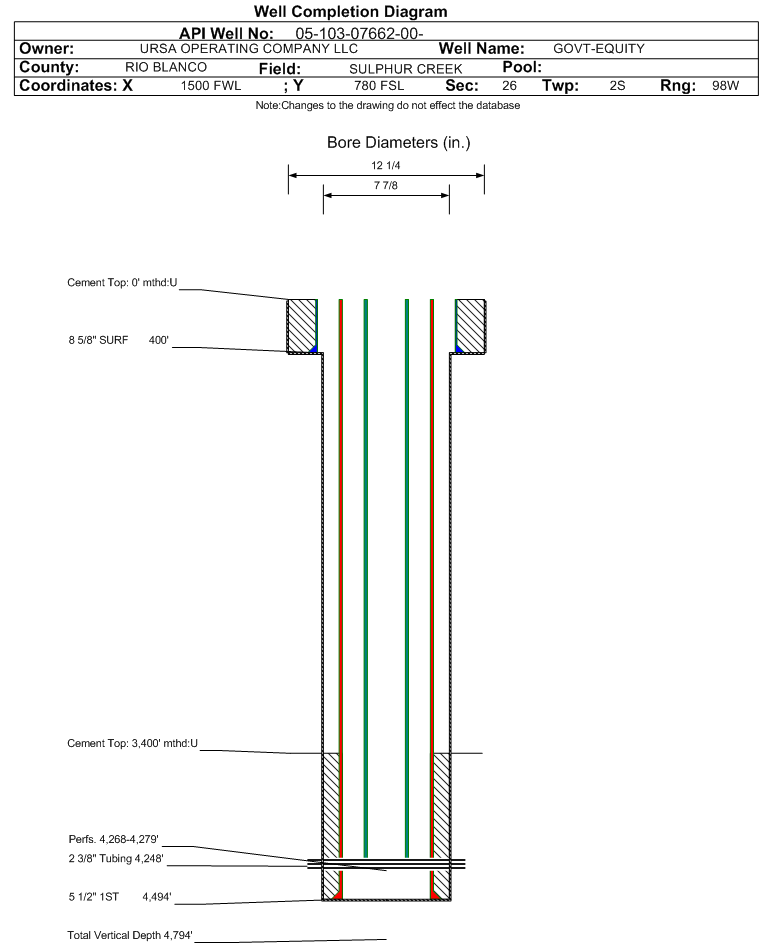

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 400 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 245, Top: 0 ft., Bottom: 400 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 4494 ft., Weight: 14 , Citings Type: ACTUAL
Cement:Sacks: 160, Top: 3400 ft., Bottom: 4494 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH G4267 ft.

Formation WSTCG                   Formation Classification:  GW                   Status:  PR - 7/1/2021                  Interval Top: 4268 ft.    Interval Bottom: 4279 ft.

 Completed Information for Formation WASATCH G
1st Production Date:N/AChoke Size:1,464.000 in.
Formation Name:WASATCH GCommingled:
Production Method:
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:4248 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/26/1975Test Method:FLOWING
Hours Tested:19Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1228
CASING_PRESS 1100
MCF_GAS 972
TUBING_PRESS 1050
Perforation Data:
Interval Top:4268 ft.# Of Holes:
Interval Bottom:4279 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
11/2024 - 10/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)3
Total Gas Produced (MCF)2656
GOR885333
GOR DeterminationMCFE
Average BOE per Day1.257
Average MCFE per Day7.293

 Federal Financial Assurance  i Y

 Tribal Well  i No
