COGIS - WELL SCOUT CARD

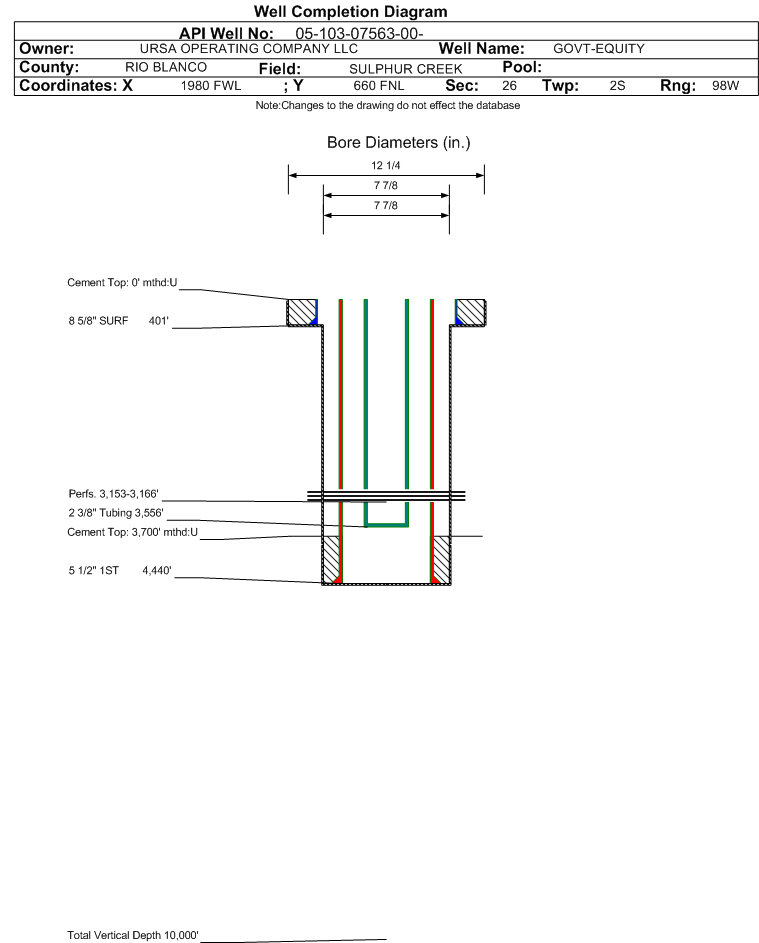

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-103-07563		Well Classification: GW Status: PR - 3/1/2021
Well Name/No:GOVT-EQUITY #26-1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:47709
Facility Status:PRStatus Date3/1/2021
FacilityID:229905LocationID:314929
County:RIO BLANCO #103Location:NENW 26 2S98W 6
Field:SULPHUR CREEK - #80090Elevation:6485 ft.
Basin:PICEANCE BASIN
Planned Location:1060FNL  1434 FWLLat/Long: 39.851606 / -108.366681Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.851950 / -108.366810Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/1/2021             Measured TD: 4441 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/1/2021
Wellbore Permit
Permit #:730738 Expiration Date:1/13/1974
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:C-400
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:10/31/1973
Spud Date:9/20/1973Spud Date Is:ACTUAL
Measured TD:4441 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 401 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 401 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 4440 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 103, Top: 3700 ft., Bottom: 4440 ft., Determination Method: CALC
Casing:String Type: STAGE TOOL, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 3819 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 210, Top: 2400 ft., Bottom: 3819 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
DOUGLAS CREEK2121 ft.
WASATCH2145 ft.
WASATCH A2251 ft.
WASATCH G3895 ft.

Formation WSTC                     Formation Classification:  GW                     Status:  PR - 3/1/2021                  Interval Top: 3153 ft.    Interval Bottom: 3166 ft.

 Completed Information for Formation WASATCH
1st Production Date:N/AChoke Size:0.750 in.
Formation Name:WASATCHCommingled:
Production Method:
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:3556 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/6/1997Test Method:FLOW/METER
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BTU_GAS 1079
CALC_MCF_GAS 206
CASING_PRESS 150
MCF_GAS 206
TUBING_PRESS 110
Perforation Data:
Interval Top:3153 ft.# Of Holes:39
Interval Bottom:3166 ft.Hole Size:0.48 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)30
Total Gas Produced (MCF)19279
GOR642633
GOR DeterminationMCFE
Average BOE per Day9.184
Average MCFE per Day53.259

 Federal Financial Assurance  i Y

 Tribal Well  i No
