COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-087-08132		Well Classification: STOW Status: AC - 6/7/2004
Well Name/No:YOUNG #43
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:YOUNG GAS STORAGE COMPANY LTD - 98220
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:115
Facility Status:ACStatus Date6/7/2004
FacilityID:272010LocationID:313959
County:MORGAN #087Location:SESW 14 4N58W 6
Field:YOUNG - #98650Elevation:4512 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1170FSL  1415 FWLLat/Long: 40.308260 / -103.843152Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.308180 / -103.843190Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: STOW             Status: AC - 6/7/2004             Measured TD: 7777 ft.    Vertical TD: 5819 ft.

 Wellbore Data for Original WellboreWellbore Classification: STOW        AC - 6/7/2004
Wellbore PermitDIRECTIONAL
Permit #:2004085 Expiration Date:4/21/2005
Proposed Top PZ Location:Sec:14 Twp: 4N 58W Footage: 634 FSL  1166 FWL
Bottom Hole Location:Sec:23 Twp: 4N 58W Footage: 1025 FNL  395 FWL
Proposed Depth/Form:5850 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: DSND , Formation: D SAND , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:5/16/2004
Spud Date:4/30/2004Spud Date Is:ACTUAL
Measured TD:7777 ft.Measured PB depth:7777 ft.
True Vertical TD:5819 ft.True Vertical PB depth:5819 ft.
Top PZ Location:Sec:14 Twp: 4 58Footage: 633 FSL  1146 FWL
Bottom Hole Location:Sec:23 Twp: 4 58Footage: 935 FNL  411 FWL
Log Types:ARRAY INDUCTION, GAMMA RAY, SP, CALIPER
Log Types:

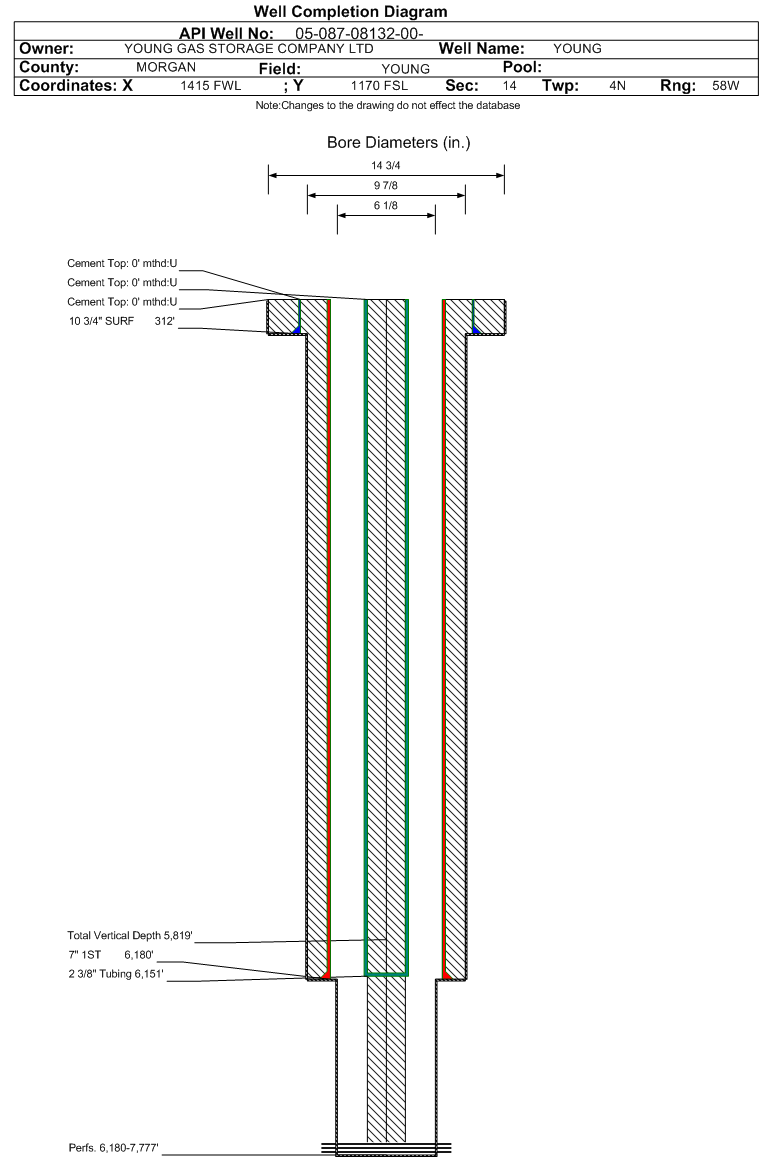

Casing:String Type: SURF, Hole Size: 14.75 in., Size: 10.75 in., Top: 0 ft., Depth: 312 ft., Weight: 40.5 , Citings Type: ACTUAL
Cement:Sacks: 310, Top: 0 ft., Bottom: 312 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 9.875 in., Size: 7 in., Top: 0 ft., Depth: 6180 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 1410, Top: 0 ft., Bottom: 6180 ft., Determination Method: VISU
Casing:String Type: OPEN HOLE, Hole Size: 6.125 in., Size: , Top: 6180 ft., Depth: 7777 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:

Formation DSND                     Formation Classification:  GW                     Status:  AC - 6/7/2004                  Interval Top: 6180 ft.    Interval Bottom: 7777 ft.

 Completed Information for Formation D SAND
1st Production Date:N/AChoke Size:
Formation Name:D SANDCommingled:No
Production Method:
Open Hole Completion:Yes
Formation Treatment
Treatment Date:6/7/2004
Treatment Summary:N/A
Tubing Size:2.375 in.Tubing Setting Depth:6151 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation DSND.
Perforation Data:
Interval Top:6180 ft.# Of Holes:
Interval Bottom:7777 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i Y

 Tribal Well  i No
