COGIS - WELL SCOUT CARD

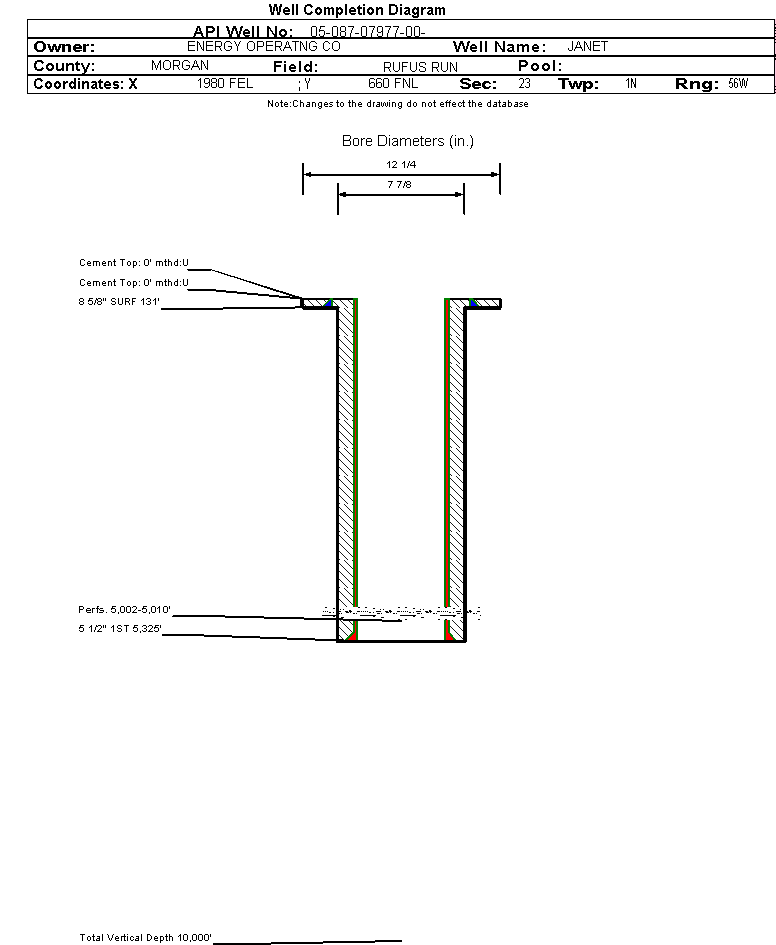

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-087-07977		Well Classification: OW Status: PR - 6/1/2025
Well Name/No:JANET #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:IMPETRO RESOURCES LLC - 10690
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/1/2025
FacilityID:227234LocationID:313919
County:MORGAN #087Location:NWNE 23 1N56W 6
Field:RUFUS RUN - #75160Elevation:4407 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FNL  1980 FELLat/Long: 40.042894 / -103.611002Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.043183 / -103.611009Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 6/1/2025             Measured TD: 5325 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 6/1/2025
Wellbore Permit
Permit #:19890083 Expiration Date:6/9/1989
Proposed Depth/Form:5200 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 40, Drill Unit:
Wellbore Completed
Completion Date:3/25/1989
Spud Date:1/3/1989Spud Date Is:ACTUAL
Measured TD:5325 ft.Measured PB depth:0 ft.
True Vertical TD:True Vertical PB depth:
Log Types:ATLAS DUAL INDUCTION, NEUTRON DENSITY
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 131 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 130, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 5325 ft., Weight: 14&15.5 , Citings Type: ACTUAL
Cement:Sacks: 125, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
NIOBRARA4122 ft.
FORT HAYS4522 ft.
GREENHORN4672 ft.
BENTONITE4912 ft.
D SAND5002 ft.
J SAND5096 ft.

Formation JSND                     Formation Classification:  OW                     Status:  AB - 1/23/1989                 Interval Top: 5096 ft.

 Completed Information for Formation J SAND
1st Production Date:N/AChoke Size:
Formation Name:J SANDCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
No Perforation Data was found for formation JSND.

Formation DSND                     Formation Classification:  OW                     Status:  PR - 6/1/2025                  Interval Top: 5002 ft.    Interval Bottom: 5010 ft.

 Completed Information for Formation D SAND
1st Production Date:3/25/1989Choke Size:0.000 in.
Formation Name:D SANDCommingled:
Production Method:PUMPING
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/25/1989Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 4
BBLS_OIL 41
GRAVITY_OIL 37
Perforation Data:
Interval Top:5002 ft.# Of Holes:32
Interval Bottom:5010 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)819
Total Gas Produced (MCF)0
GOR
GOR DeterminationBOE
Average BOE per Day2.244
Average MCFE per Day13.017

 Federal Financial Assurance  i

 Tribal Well  i No
