COGIS

Facility Detail

COGIS - WELL SCOUT CARD

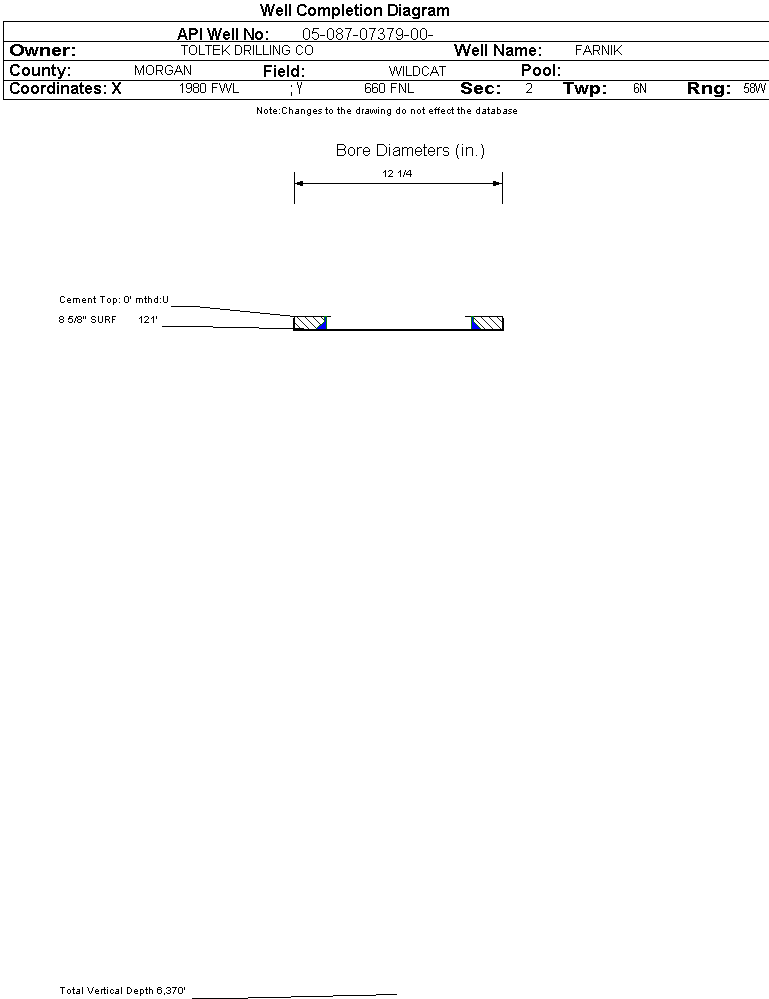

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-087-07379		Well Classification: DA Status: PA - 9/10/1976
Well Name/No:FARNIK #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TOLTEK DRILLING CO - 88850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date9/10/1976
FacilityID:226641LocationID:395184
County:MORGAN #087Location:NENW 2 6N58W 6
Field:WILDCAT - #99999Elevation:4734 ft.
Planned Location:660FNL  1980 FWLLat/Long: 40.522197 / -103.834393Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: DA             Status: PA - 9/10/1976             Measured TD: 6370 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: DA        PA - 9/10/1976
Wellbore Permit
Permit #:19760787 Expiration Date:12/30/1976
Proposed Depth/Form:6300 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Wellbore Completed
Completion Date:9/10/1976
Spud Date:9/3/1976Spud Date Is:ACTUAL
Measured TD:6370 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:IES
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 121 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 100, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
NIOBRARA5432 ft.
FORT HAYS5728 ft.
CARLILE5773 ft.
GREENHORN6022 ft.
BENTONITE6101 ft.
D SAND6208 ft.
J SAND6278 ft.
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/10/1976
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
