COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-083-06616		Well Classification: DA Status: PA - 8/4/2005
Well Name/No:CANNONBALL UNIT #1-18
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:EOG RESOURCES INC - 27742
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 58384
Facility Status:PAStatus Date8/4/2005
FacilityID:276368LocationID:393284
County:MONTEZUMA #083Location:NWSW 18 35N19W N
Field:WILDCAT - #99999Elevation:5150 ft.
Basin:PARADOX BASIN
Planned Location:1993FSL  237 FWLLat/Long: 37.289689 / -108.990442Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: DA             Status: PA - 8/4/2005             Measured TD:

 Wellbore Data for Original WellboreWellbore Classification: DA        PA - 8/4/2005
Wellbore Permit
Permit #:20050391 Expiration Date:2/28/2006
Proposed Depth/Form:6000 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit:CANNONBALL UNIT Unit Number:COC 68006X
Formation And Spacing:Code: ISMY , Formation: ISMAY , Order: , Unit Acreage: , Drill Unit: NWSW
Casing:String Type: CONDUCTOR, Hole Size: 17.5 in., Size: 13.375 in., Top: , Depth: 100 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: 75, Top: 0 ft., Bottom:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 1750 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 850, Top: 0 ft., Bottom: 330 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 6000 ft., Weight: 15.5 , Citings Type: PLANNED
Cement:Sacks: 1100, Top: 0 ft., Bottom:
Wellbore Completed
Completion Date:N/A
Spud Date:3/1/2005Spud Date Is:PLANNED
Measured TD:Measured PB depth:
True Vertical TD:True Vertical PB depth:

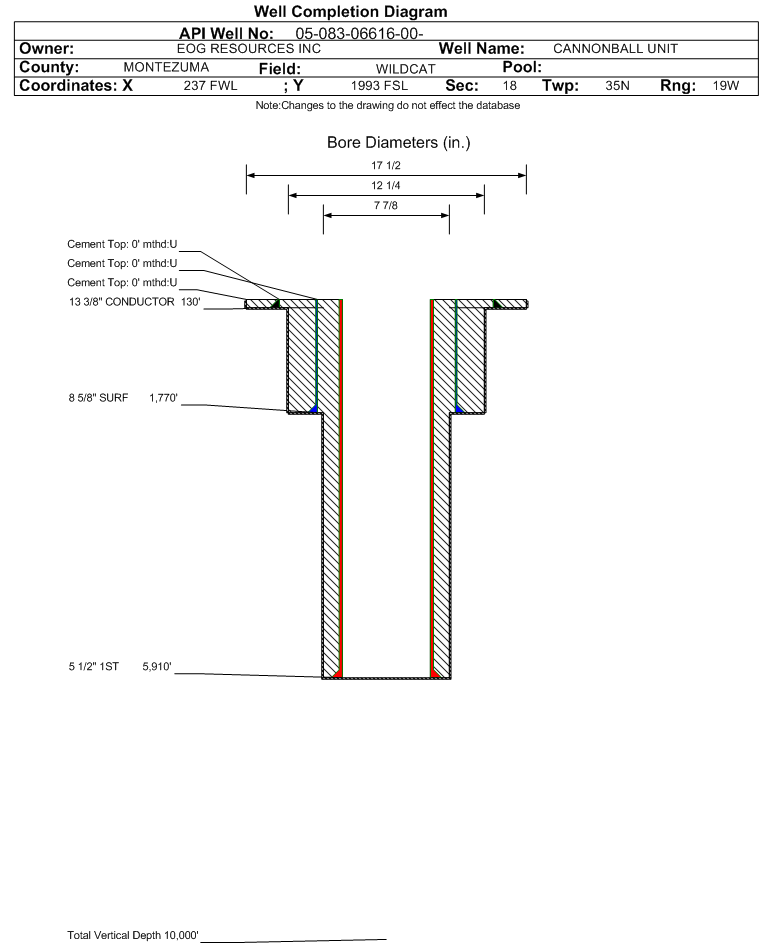

Casing:String Type: CONDUCTOR, Hole Size: 17.5 in., Size: 13.375 in., Top: , Depth: 130 ft., Weight: 54.5 , Citings Type: ACTUAL
Cement:Sacks: 135, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 1770 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 945, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 5910 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 1200, Top: 0 ft., Bottom: , Determination Method:
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY08/04/2005
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
