COGIS - WELL SCOUT CARD

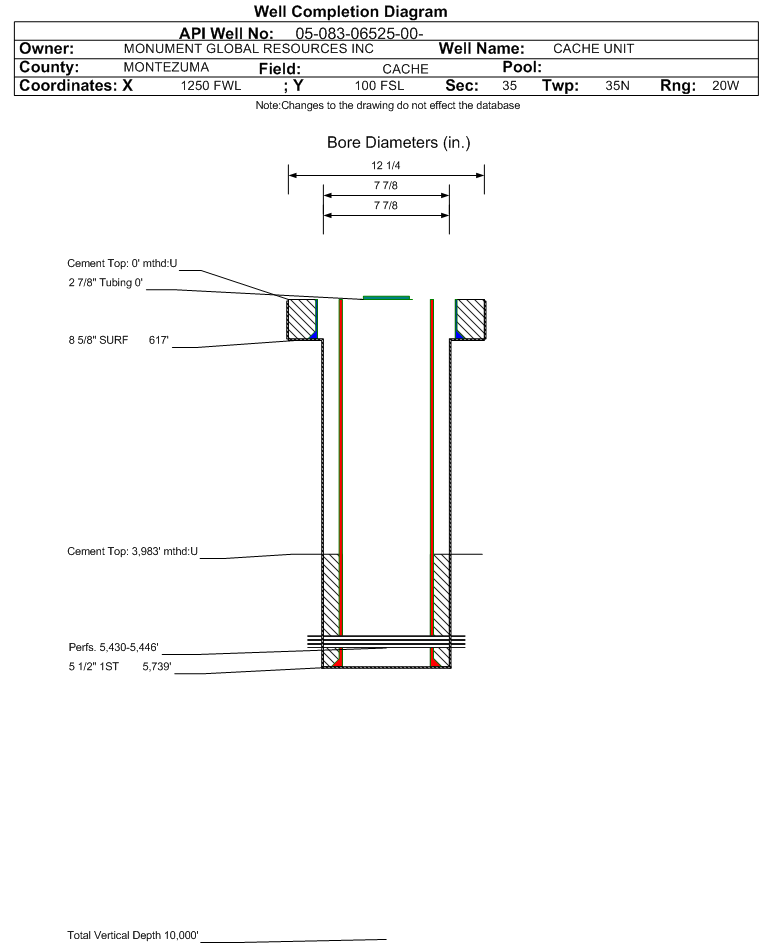

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-083-06525		Well Classification: OW Status: SI - 3/31/2013
Well Name/No:CACHE UNIT #26 (OWP)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:MONUMENT GLOBAL RESOURCES INC - 10430
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:C-02763
Facility Status:SIStatus Date3/31/2013
FacilityID:224460LocationID:313554
County:MONTEZUMA #083Location:SWSW 35 35N20W N
Field:CACHE - #9610Elevation:4941 ft.
Basin:PARADOX BASIN
Planned Location:100FSL  1250 FWLLat/Long: 37.240609 / -109.022873Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 37.240609 / -109.022873Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: SI - 3/31/2013             Measured TD: 5740 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 3/31/2013
Wellbore Permit
Permit #:19900426 Expiration Date:8/30/1990
Proposed Depth/Form:5925 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: DSCR , Formation: DESERT CREEK , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: ISMY , Formation: ISMAY , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:7/27/1990
Spud Date:6/17/1990Spud Date Is:ACTUAL
Measured TD:5740 ft.Measured PB depth:5685 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CN - CD, DLL, MSFL, GR-CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 617 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 0 ft., Bottom: 617 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 5739 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 260, Top: 3983 ft., Bottom: 5739 ft., Determination Method: CALC
Casing:String Type: STAGE TOOL, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 3200 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 800, Top: 0 ft., Bottom: 3200 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
CUTLER2749 ft.
HERMOSA4494 ft.
ISMAY5399 ft. Y
HOVENWEEP SHALE5531 ft. Y
LOWER ISMAY5533 ft. Y
GOTHIC SHALE5599 ft. Y
DESERT CREEK5640 ft.

Formation ISMY                     Formation Classification:  GW                     Status:  SI - 3/31/2013                 Interval Top: 5430 ft.    Interval Bottom: 5446 ft.

 Completed Information for Formation ISMAY
1st Production Date:9/2/1990Choke Size:
Formation Name:ISMAYCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:7/27/1990
Treatment Summary:28% MSR ACID, 2600 GALS FROM 5430'-5446', 1750 GALS FROM 5490'-5504', 1750 GALS FROM 5514'-5534'. 15% MSR #2000 GAL. MSR FROM 5576'-5596'
Tubing Size:2.875 in.Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/2/1990Test Method:PUMPING
Hours Tested:552Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 6486
BBLS_OIL 133
CALC_BBLS_H2O 282
CALC_BBLS_OIL 5.8
CALC_MCF_GAS 14
GRAVITY_OIL 43.5
MCF_GAS 322
Perforation Data:
Interval Top:5430 ft.# Of Holes:140
Interval Bottom:5446 ft.Hole Size:
Primary Well Designation:
Defined Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
12/31/2010
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
