COGIS - WELL SCOUT CARD

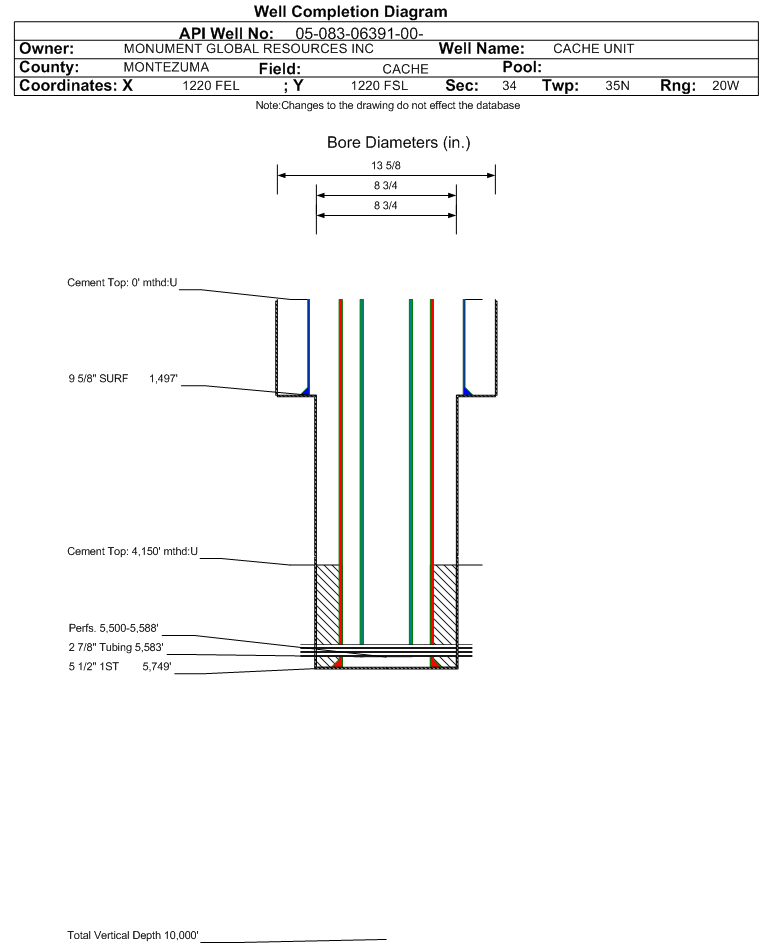

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-083-06391		Well Classification: OW Status: SI - 5/1/2014
Well Name/No:CACHE UNIT #21 (OWP)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:MONUMENT GLOBAL RESOURCES INC - 10430
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:C-02763
Facility Status:SIStatus Date5/1/2014
FacilityID:224326LocationID:313519
County:MONTEZUMA #083Location:SESE 34 35N20W N
Field:CACHE - #9610Elevation:4935 ft.
Basin:PARADOX BASIN
Planned Location:1220FSL  1220 FELLat/Long: 37.243609 / -109.031383Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 37.243609 / -109.031383Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: ERIW             Status: SI - 5/1/2014             Measured TD: 5750 ft.

 Wellbore Data for Original WellboreWellbore Classification: ERIW        SI - 5/1/2014
Wellbore Permit
Permit #:19830970 Expiration Date:12/20/1983
Proposed Depth/Form:5750 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: ISMY , Formation: ISMAY , Order: , Unit Acreage: 40, Drill Unit:
Wellbore Completed
Completion Date:12/30/1988
Spud Date:12/17/1983Spud Date Is:ACTUAL
Measured TD:5750 ft.Measured PB depth:5640 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIL-GR-SP BHC SONIC-GR-CALIPER
Casing:String Type: SURF, Hole Size: 12.5 in., Size: 9.625 in., Top: , Depth: 1497 ft., Weight: 32 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: 0 ft., Bottom: 1497 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: , Depth: 5749 ft., Weight: 14 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 4150 ft., Bottom: 4150 ft., Determination Method: CALC
Casing:String Type: STAGE TOOL, Hole Size: 8.75 in., Size: 5.5 in., Top: , Depth: 4000 ft., Weight: 14 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: 1125 ft., Bottom: 4000 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
CUTLER2715 ft.N
HERMOSA4543 ft.N
ISMAY5474 ft.N
DESERT CREEK5658 ft.N

Formation ISMY                     Formation Classification:  OG                     Status:  SI - 5/1/2014                  Interval Top: 5500 ft.    Interval Bottom: 5588 ft.

 Completed Information for Formation ISMAY
1st Production Date:1/26/1984Choke Size:
Formation Name:ISMAYCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:12/30/1988
Treatment Summary:6/96 - SEE DOC #00620004; 12/85 - SEE DOC #00620024; 1/84 - SEE DOC #00620027
Tubing Size:2.875 in.Tubing Setting Depth:5583 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/20/1984Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 47
BBLS_OIL 14
CALC_BBLS_H2O 47
CALC_BBLS_OIL 14
CALC_MCF_GAS 0
CASING_PRESS 100
MCF_GAS 0
TUBING_PRESS 100
Perforation Data:
Interval Top:5500 ft.# Of Holes:296
Interval Bottom:5588 ft.Hole Size:
Primary Well Designation:
Defined Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
04/30/2014
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
