COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-083-06068		Well Classification: OW Status: SI - 6/1/2014
Well Name/No:CACHE UNIT #20 (OWP)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:MONUMENT GLOBAL RESOURCES INC - 10430
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:140800018879
Facility Status:SIStatus Date6/1/2014
FacilityID:224012LocationID:313454
County:MONTEZUMA #083Location:NWNW 2 34N20W N
Field:CACHE - #9610Elevation:4943 ft.
Basin:PARADOX BASIN
Planned Location:1150FNL  1270 FWLLat/Long: 37.237179 / -109.022833Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 37.237179 / -109.022833Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

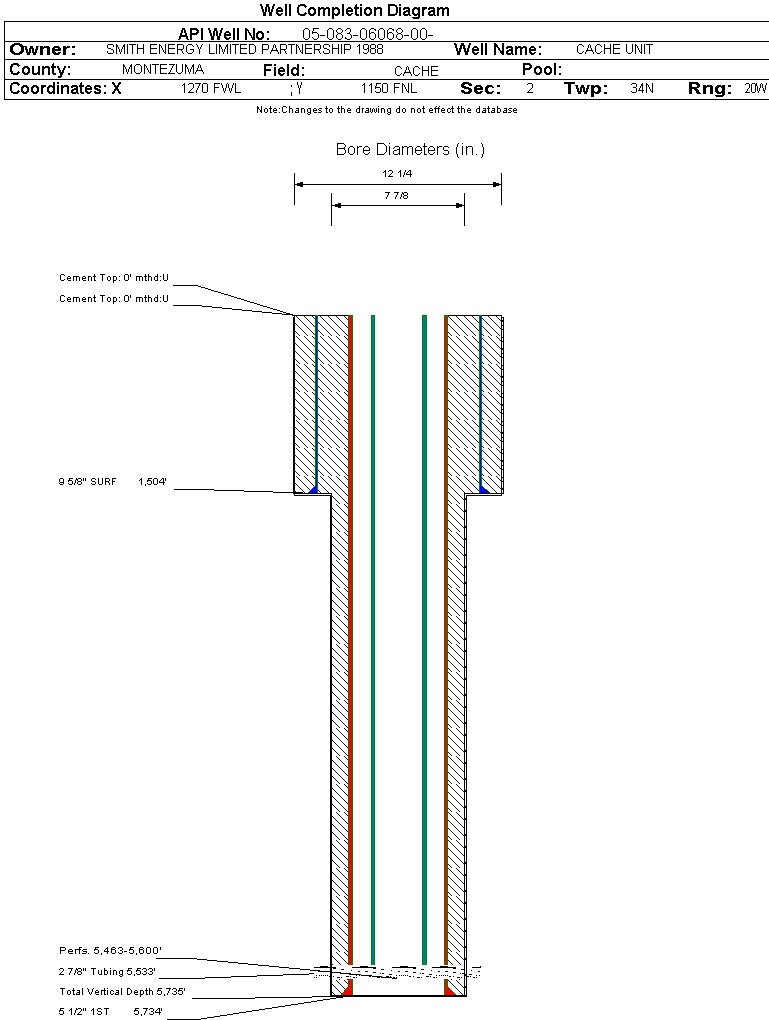

Wellbore #00             Wellbore Classification: OW             Status: SI - 6/1/2014             Measured TD: 5735 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 6/1/2014
Wellbore Permit
Permit #:19730279 Expiration Date:9/7/1973
Proposed Depth/Form:5700 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:FEE
Unit:CACHE UNIT Unit Number:
Wellbore Completed
Completion Date:2/28/1990
Spud Date:7/13/1973Spud Date Is:ACTUAL
Measured TD:5735 ft.Measured PB depth:5546 ft.
True Vertical TD:True Vertical PB depth:
Log Types:IES, GAMMA RAY-SONIC
Casing:String Type: SURF, Hole Size: 12.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1504 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 1250, Top: 0 ft., Bottom: 1504 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 5734 ft., Weight: 14 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 0 ft., Bottom: 5734 ft., Determination Method: CALC
Casing:String Type: STAGE TOOL, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 3092 ft., Weight: 14 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 3092 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
CHINLE1835 ft.
CUTLER2770 ft.
HERMOSA4525 ft.
ISMAY5438 ft.

Formation ISMY                     Formation Classification:  GW                     Status:  SI - 6/1/2014                  Interval Top: 5463 ft.    Interval Bottom: 5600 ft.

 Completed Information for Formation ISMAY
1st Production Date:9/30/1973Choke Size:1.000 in.
Formation Name:ISMAYCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:2/28/1990
Treatment Summary:10,750 GALS 15% HCL
Tubing Size:2.875 in.Tubing Setting Depth:5533 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/24/1973Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 6
BBLS_OIL 24
CALC_GOR 1429
MCF_GAS 34.3
Perforation Data:
Interval Top:5463 ft.# Of Holes:
Interval Bottom:5600 ft.Hole Size:
Primary Well Designation:
Defined Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
04/30/2014
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
