COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-083-05346		Well Classification: ERIW Status: SI - 3/10/2014
Well Name/No:CACHE UNIT (EPA) #15 (OWP)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:MONUMENT GLOBAL RESOURCES INC - 10430
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:142006047511
Facility Status:SIStatus Date3/10/2014
FacilityID:223874LocationID:313442
County:MONTEZUMA #083Location:SENE 2 34N20W N
Field:CACHE - #9610Elevation:4979 ft.
Basin:PARADOX BASIN
Planned Location:1920FNL  700 FELLat/Long: 37.235110 / -109.011413Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: DSPW             Status: SI - 3/10/2014             Measured TD: 5693 ft.

 Wellbore Data for Original WellboreWellbore Classification: DSPW        SI - 3/10/2014
Wellbore Permit
Permit #:19650368 Expiration Date:12/27/1965
Proposed Depth/Form:5700 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:INDIANSurface Owner:INDIAN
Unit:CACHE UNIT Unit Number:
Wellbore Completed
Completion Date:5/19/1974
Spud Date:8/29/1965Spud Date Is:ACTUAL
Measured TD:5693 ft.Measured PB depth:5672 ft.
True Vertical TD:True Vertical PB depth:
Log Types:IES, GRS

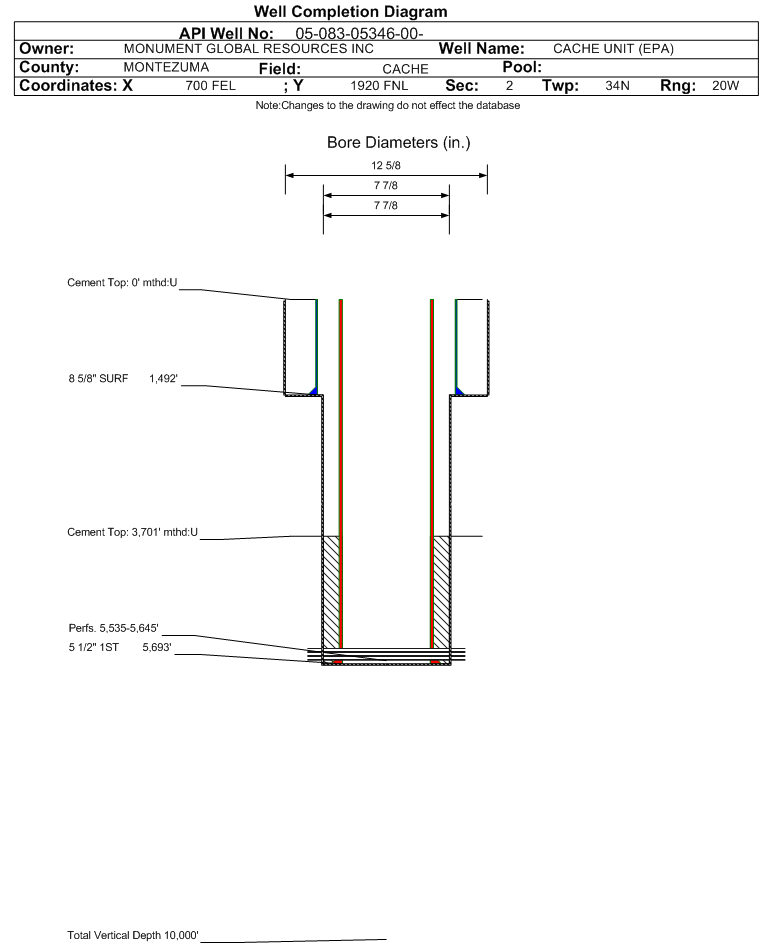

Casing:String Type: SURF, Hole Size: , Size: 8.625 in., Top: 0 ft., Depth: 1492 ft., Weight: 32 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: 0 ft., Bottom: 1492 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 5693 ft., Weight: 14 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 3701 ft., Bottom: 5693 ft., Determination Method: CALC
Casing:String Type: STAGE TOOL, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 3185 ft., Weight: 14 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: 196 ft., Bottom: 3185 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
CUTLER2760 ft.
HERMOSA4532 ft.
ISMAY5442 ft.
LOWER ISMAY5595 ft.

Formation ISMY                     Formation Classification:  GW                     Status:  IJ - 7/1/2014                  Interval Top: 5535 ft.    Interval Bottom: 5645 ft.

 Completed Information for Formation ISMAY
1st Production Date:11/2/1965Choke Size:0.750 in.
Formation Name:ISMAYCommingled:
Production Method:INJECTION
Open Hole Completion:
Formation Treatment
Treatment Date:5/19/1974
Treatment Summary:14,000 GAL 15% ACID
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/2/1965Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 327
CALC_GOR 1200
CASING_PRESS 420
MCF_GAS 392
TUBING_PRESS 125
Perforation Data:
Interval Top:5535 ft.# Of Holes:
Interval Bottom:5645 ft.Hole Size:
Primary Well Designation:
Defined Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (UIC)YDefined Inactive
07/31/2014
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i Yes
