COGIS - WELL SCOUT CARD

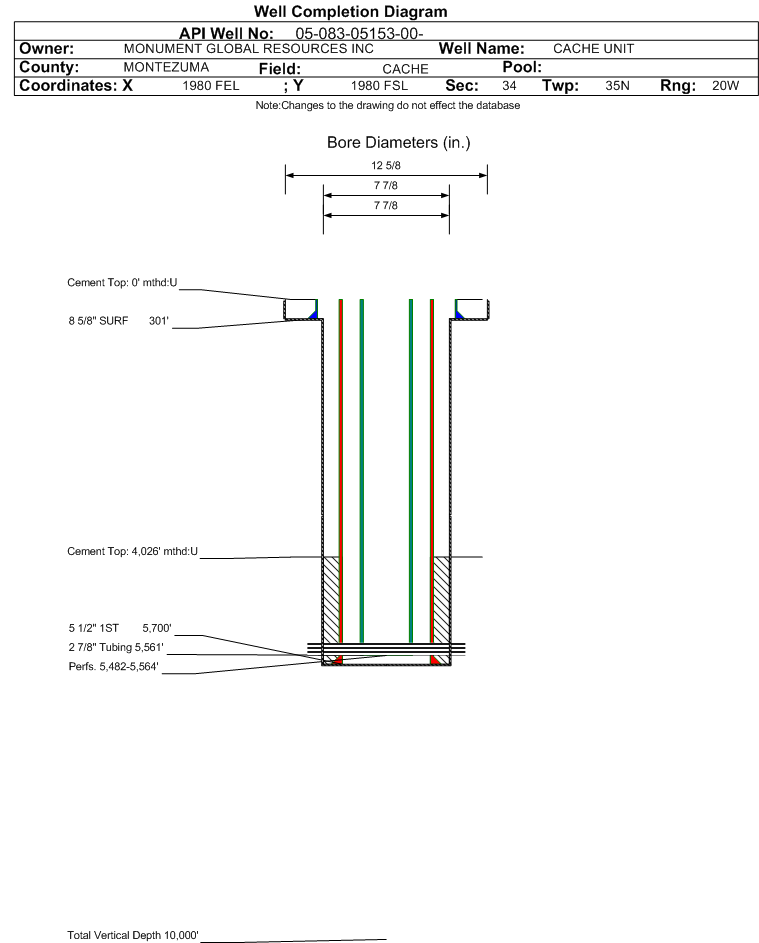

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-083-05153		Well Classification: OW Status: PR - 3/10/2014
Well Name/No:CACHE UNIT #1 (OWP)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:MONUMENT GLOBAL RESOURCES INC - 10430
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:C-08763
Facility Status:PRStatus Date3/10/2014
FacilityID:223753LocationID:313429
County:MONTEZUMA #083Location:NWSE 34 35N20W N
Field:CACHE - #9610Elevation:4897 ft.
Basin:PARADOX BASIN
Planned Location:1980FSL  1980 FELLat/Long: 37.245659 / -109.034003Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 37.245659 / -109.034003Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 3/10/2014             Measured TD: 5700 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 3/10/2014
Wellbore Permit
Permit #:19650154 Expiration Date:8/27/1965
Proposed Depth/Form:5900 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: ISMY , Formation: ISMAY , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:12/2/1985
Spud Date:4/26/1965Spud Date Is:ACTUAL
Measured TD:5700 ft.Measured PB depth:5661 ft.
True Vertical TD:True Vertical PB depth:
Log Types:INDUCTION ELECTRIC AND GAMMA RAY SONIC WITH CALIPER
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: , Depth: 301 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 240, Top: 0 ft., Bottom: 301 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 5700 ft., Weight: 14 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 4040 ft., Bottom: 5700 ft., Determination Method: CALC
Casing:String Type: STAGE TOOL, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 3365 ft., Weight: 14 , Citings Type: ACTUAL
Cement:Sacks: 600, Top: 0 ft., Bottom: 3365 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
CUTLER2800 ft.N
HERMOSA4530 ft.N
ISMAY5438 ft.N
LOWER ISMAY5562 ft.N
DESERT CREEK5662 ft.N

Formation ISMY                     Formation Classification:  GW                     Status:  PR - 3/10/2014                 Interval Top: 5482 ft.    Interval Bottom: 5564 ft.

 Completed Information for Formation ISMAY
1st Production Date:5/28/1965Choke Size:1.250 in.
Formation Name:ISMAYCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:12/2/1985
Treatment Summary:5548'-5618': SQUEEZED WITH 100 SACKS 2 TREATMENTS 4000 GALS XW35 ACID, 7000 GALS RETARDED ACID & 800# MOTH BALL FLAKES
Tubing Size:2.875 in.Tubing Setting Depth:5561 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/1/1965Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 315
CALC_BBLS_OIL 13.125
CALC_GOR 1500
CALC_MCF_GAS 550
GRAVITY_OIL 45
MCF_GAS 630.7
TUBING_PRESS 200
Perforation Data:
Interval Top:5482 ft.# Of Holes:
Interval Bottom:5564 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
