COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-083-05150		Well Classification: ERIW Status: PA - 4/3/1989
Well Name/No:CACHE UNIT (EPA) #11
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:AMOCO PRODUCTION COMPANY - 2500
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date4/3/1989
FacilityID:223750LocationID:392679
County:MONTEZUMA #083Location:NWNE 2 34N20W N
Field:CACHE - #9610Elevation:4946 ft.
Basin:PARADOX BASIN
Planned Location:600FNL  2100 FELLat/Long: 37.238709 / -109.016243Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

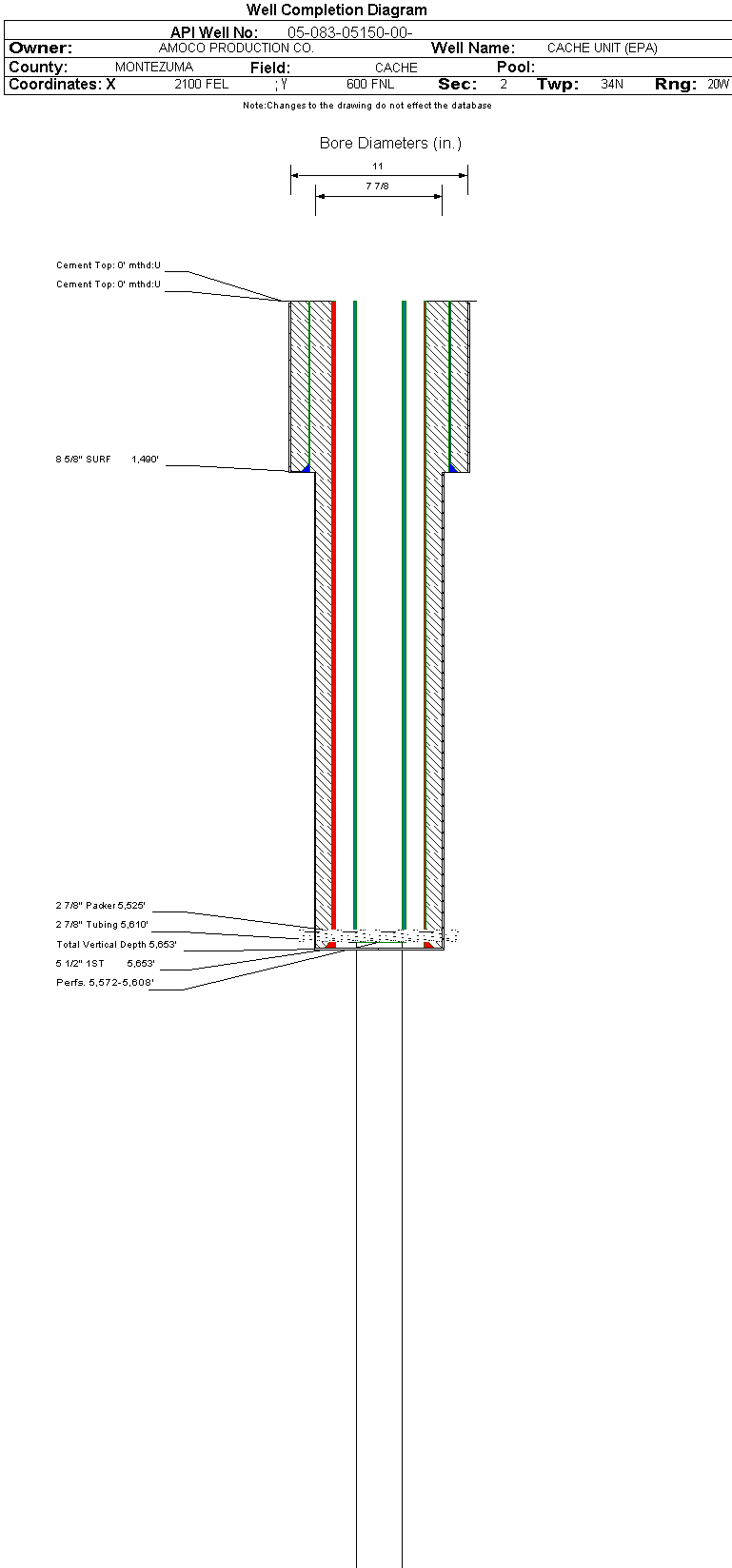

Wellbore #00             Wellbore Classification: ERIW             Status: PA - 4/3/1989             Measured TD: 5653 ft.

 Wellbore Data for Original WellboreWellbore Classification: ERIW        PA - 4/3/1989
Wellbore Permit
Permit #:19640512 Expiration Date:3/13/1965
Proposed Depth/Form:5700 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: ISMY , Formation: ISMAY , Order: , Unit Acreage: 40, Drill Unit: NWNE
Wellbore Completed
Completion Date:4/3/1989
Spud Date:11/17/1964Spud Date Is:ACTUAL
Measured TD:5653 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:INDUCTION, GAMMA RAY SONIC
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: , Depth: 1490 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 575, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 5653 ft., Weight: 14 , Citings Type: ACTUAL
Cement:Sacks: 750, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
CHINLE1820 ft.2735 ft.
CUTLER2735 ft.2750 ft.
HERMOSA4500 ft.5429 ft. Y
ISMAY5429 ft.5540 ft.
LOWER ISMAY5540 ft.5653 ft.

Formation ISMY                     Formation Classification:  GW                     Status:  AB - 4/3/1989                  Interval Top: 5572 ft.    Interval Bottom: 5608 ft.

 Completed Information for Formation ISMAY
1st Production Date:12/17/1964Choke Size:0.750 in.
Formation Name:ISMAYCommingled:
Production Method:INJECTION
Open Hole Completion:
Formation Treatment
Treatment Date:4/3/1989
Treatment Summary:31,000 GAL ACID; 1,000 GAL HV-60
Tubing Size:2.875 in.Tubing Setting Depth:5610 ft.
Tubing Packer Depth:5545 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/4/1965Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 255
CALC_GOR 983
GRAVITY_OIL 44
MCF_GAS 250
TUBING_PRESS 100
Perforation Data:
Interval Top:5572 ft.# Of Holes:
Interval Bottom:5608 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY04/03/1989
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
