COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-083-05145		Well Classification: ERIW Status: PA - 6/18/2014
Well Name/No:CACHE UNIT (EPA) #12
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:MONUMENT GLOBAL RESOURCES INC - 10430
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:142006047511
Facility Status:PAStatus Date6/18/2014
FacilityID:223746LocationID:313424
County:MONTEZUMA #083Location:SWNW 2 34N20W N
Field:CACHE - #9610Elevation:4926 ft.
Basin:PARADOX BASIN
Planned Location:1920FNL  910 FWLLat/Long: 37.235059 / -109.024083Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

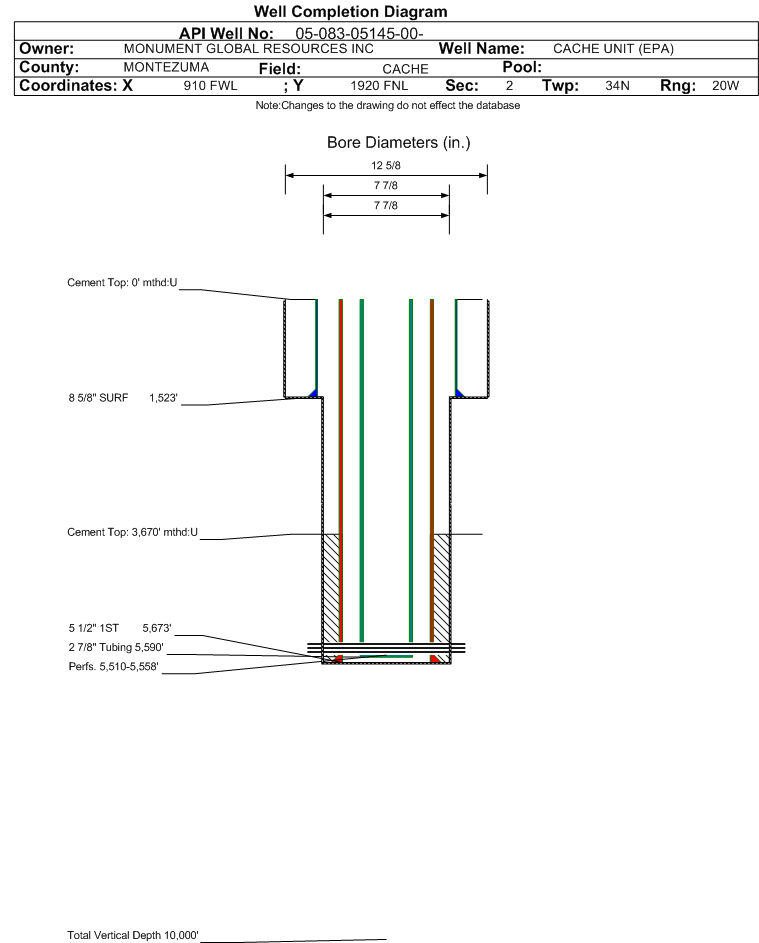

Wellbore #00             Wellbore Classification: ERIW             Status: PA - 6/18/2014             Measured TD: 5673 ft.

 Wellbore Data for Original WellboreWellbore Classification: ERIW        PA - 6/18/2014
Wellbore Permit
Permit #:650124 Expiration Date:8/5/1965
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:INDIANSurface Owner:INDIAN
Unit: Unit Number:142006047511
Wellbore Completed
Completion Date:1/28/1970
Spud Date:5/11/1965Spud Date Is:ACTUAL
Measured TD:5673 ft.Measured PB depth:5625 ft.
True Vertical TD:True Vertical PB depth:
Log Types:INDUCTION ELECTRIC, GAMMA RAY SONIC-CALIPER
Casing:String Type: SURF, Hole Size: , Size: 8.625 in., Top: , Depth: 1523 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: 0 ft., Bottom: 1523 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 5673 ft., Weight: 14.5 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 3670 ft., Bottom: 5673 ft., Determination Method: CBL
Casing:String Type: STAGE TOOL, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 3182 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 1170 ft., Bottom: 3182 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
CUTLER2742 ft.
HERMOSA4535 ft.
ISMAY5448 ft.
LOWER ISMAY5574 ft.

Formation ISMY                     Formation Classification:  GW                     Status:  AB - 6/18/2014                 Interval Top: 5510 ft.    Interval Bottom: 5558 ft.

 Completed Information for Formation ISMAY
1st Production Date:6/14/1965Choke Size:
Formation Name:ISMAYCommingled:
Production Method:INJECTION
Open Hole Completion:
Formation Treatment
Treatment Date:1/28/1970
Treatment Summary:1500 GAL 15% REGULAR ACID
Tubing Size:2.875 in.Tubing Setting Depth:5590 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/15/1965Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 46
BBLS_OIL 119
CALC_GOR 1202
GRAVITY_OIL 44
MCF_GAS 143
Perforation Data:
Interval Top:5510 ft.# Of Holes:
Interval Bottom:5558 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/18/2014
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i Yes
